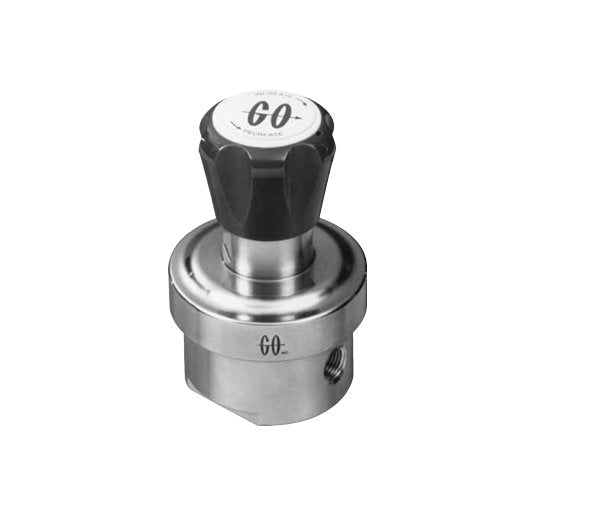

GO Regulator PR-7 High Flow Adjustable Regulator
GO Regulator PR-7 High Flow Adjustable Regulator
SKU:GOP-ba88e5
High flow, compact design, PR-7 Ultra Regulator meets high-pressure demands in industrial settings.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
GO Regulator PR-7 High Flow Adjustable Regulator
$499.99
Quantity: 1
Claim Your Seller Account
GO Regulator PR-7 High Flow Adjustable Regulator
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The GO Regulator PR-7 Ultra High Flow Adjustable Single Stage Regulator is designed for high gas flow applications with low inlet pressures, capable of handling hydrogen flows up to 1000 liters per minute without resonance issues. Constructed to withstand inlet pressures up to 3600 psig, this regulator maintains outlet pressures closely even with large changes in flow requirements. The PR-7 is engineered to serve as a primary pressure supply to downstream pressure regulators, offering precision and reliability for demanding industrial applications.
Product Specifications
Features And Specifications Features And Specifications
Minimal droop with large flow increasedNo resonance with large hydrogen flowsStainless steel diaphragm or INCONEL® diaphragm316L stainless steel or brass construction (optional HASTELLOY®, MONEL®, or chrome-plated brass)T-handle adjusting assembly for easier adjustment in the 250 and 500 psig rangesMaterial of construction: Brass, stainless steel, Fluorocarbon (FKM), Polytetrafluoroethylene (PTFE), Polyetheretherketone (PEEK), or Kalrez®Stainless steel capCv flow coefficient = 1.1 (full Cv with 1/2" ported unit only)Maximum inlet pressure of 3600 psig with Polyetheretherketone (PEEK) seatOutlet pressure ranges of: 0-10, 0-25, 0-50, 0-100, 0-150, 0-250 and 0-500 psig
Options Options
Self-relievingPanel mountCaptured vent
Specifications Body Material
316L Stainless Steel, Stainless Steel Diaphragm
Specifications Cap Assembly
T-Handle, Stainless Steel
Specifications Diaphragm Facing Material
Polytetrafluoroethylene (PTFE)/Metal Backing
Specifications Diaphragm Type
Non-Self-Relieving
Specifications Flow Coefficient Cv
1.1
Specifications Gauge Port Size
1/4 in
Specifications Gauge Port Types
Female National Pipe Tapered (FNPT) Gauge Port, Standard
Specifications Inlet And Outlet Connections
1/2 in. Female National Pipe Tapered (FNPT) | 1/4 in | 3/8 in
Specifications Operating Temperature
250 ºF | 121 ºC
Specifications Outlet Range
0 to 500 psig
Specifications Port Configuration
Standard
Specifications Process Port Size
1/2 in
Specifications Process Port Types
Female National Pipe Tapered (FNPT)
Specifications Seat Material
Polyetheretherketone (PEEKâ¢)
Specifications Surface Finish Of Diaphragm Cavity
< 25 Ra
Specifications Weight
3.2 lb | 1.45 kg
