The GO Regulator PR-7 Ultra High Flow Adjustable Single Stage Regulator is designed for high gas flow applications with low inlet pressures up to 3600 psig. With an outlet range of 0 to 250 psig, this regulator ensures precise pressure control with minimal droop and no resonance issues, especially suitable for primary pressure supply needs. Constructed with 316L stainless steel and featuring a tamper-proof stainless steel cap, this regulator offers durability, reliability, and ease of adjustment. The PR-7 meets stringent industry standards for gas flow applications, making it ideal for both consumer and institutional procurement needs.
Product Specifications
Features And Specifications Features And Specifications
Minimal droop with large flow increasedNo resonance with large hydrogen flowsStainless steel diaphragm or INCONEL® diaphragm316L stainless steel or brass construction (optional HASTELLOY®, MONEL®, or chrome-plated brass)T-handle adjusting assembly for easier adjustment in the 250 and 500 psig rangesMaterial of construction: Brass, stainless steel, Fluorocarbon (FKM), Polytetrafluoroethylene (PTFE), Polyetheretherketone (PEEK), or Kalrez®Stainless steel capCv flow coefficient = 1.1 (full Cv with 1/2" ported unit only)Maximum inlet pressure of 3600 psig with Polyetheretherketone (PEEK) seatOutlet pressure ranges of: 0-10, 0-25, 0-50, 0-100, 0-150, 0-250 and 0-500 psig
Options Options
Self-relievingPanel mountCaptured vent
Specifications Body Material
316L Stainless Steel, Stainless Steel Diaphragm
Specifications Cap Assembly
Tamper-Proof, Stainless Steel
Specifications Diaphragm Facing Material
Polytetrafluoroethylene (PTFE)/Metal Backing
Specifications Diaphragm Type
Non-Self-Relieving
Specifications Flow Coefficient Cv
1.1
Specifications Gauge Port Size
1/4 in
Specifications Gauge Port Types
Female National Pipe Tapered (FNPT) Gauge Port, Standard
Specifications Inlet And Outlet Connections
1/2 in. Female National Pipe Tapered (FNPT) | 1/4 in | 3/8 in
Specifications Operating Temperature
250 ºF | 121 ºC
Specifications Outlet Range
0 to 250 psig
Specifications Port Configuration

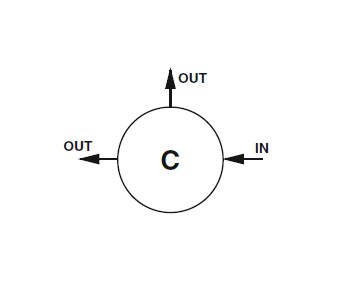

C - See Diagram for Port Configuration
Specifications Process Port Size
1/4 in
Specifications Process Port Types
Female National Pipe Tapered (FNPT)
Specifications Seat Material
Polyetheretherketone (PEEKâ¢)
Specifications Surface Finish Of Diaphragm Cavity
< 25 Ra
Specifications Weight
3.2 lb | 1.45 kg
