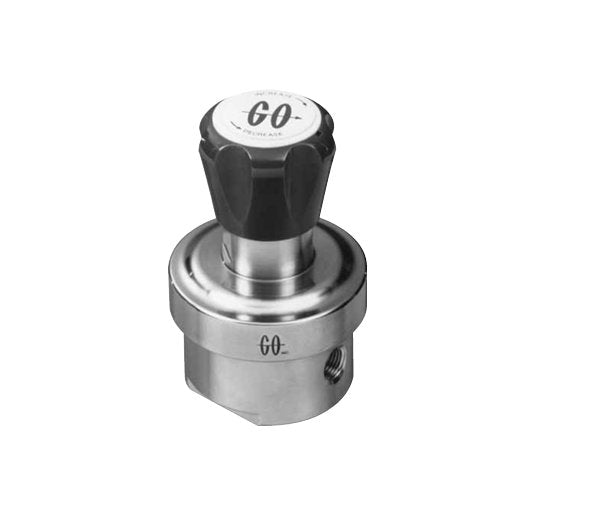

GO Regulator PR-7 Ultra High Flow Adjustable Single Stage Regulator
GO Regulator PR-7 Ultra High Flow Adjustable Single Stage Regulator
SKU:GOP-0fbc25
Reliable PR-7 Ultra High Flow Regulator for precision gas control in industrial settings.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
GO Regulator PR-7 Ultra High Flow Adjustable Single Stage Regulator
$349.99
Quantity: 1
Claim Your Seller Account
GO Regulator PR-7 Ultra High Flow Adjustable Single Stage Regulator
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The GO Regulator PR-7 Series is specifically engineered to handle high gas flow rates with precision and reliability, making it ideal for applications requiring large flow capacities. Built to withstand inlet pressures up to 3600 psig, this regulator ensures consistent outlet pressures even with varying flow demands. With features like minimal droop, no resonance with hydrogen flows, and a stainless steel diaphragm, the PR-7 is designed for durability and performance in demanding industrial environments.
Product Specifications
Features And Specifications Features And Specifications
Minimal droop with large flow increasedNo resonance with large hydrogen flowsStainless steel diaphragm or INCONEL® diaphragm316L stainless steel or brass construction (optional HASTELLOY®, MONEL®, or chrome-plated brass)T-handle adjusting assembly for easier adjustment in the 250 and 500 psig rangesMaterial of construction: Brass, stainless steel, Fluorocarbon (FKM), Polytetrafluoroethylene (PTFE), Polyetheretherketone (PEEK), or Kalrez®Stainless steel capCv flow coefficient = 1.1 (full Cv with 1/2" ported unit only)Maximum inlet pressure of 3600 psig with Polyetheretherketone (PEEK) seatOutlet pressure ranges of: 0-10, 0-25, 0-50, 0-100, 0-150, 0-250 and 0-500 psig
Options Options
Self-relievingPanel mountCaptured vent
Specifications Body Material
316L Stainless Steel, Stainless Steel Diaphragm
Specifications Cap Assembly
T-Handle, Stainless Steel
Specifications Diaphragm Facing Material
Polytetrafluoroethylene (PTFE)/Metal Backing
Specifications Diaphragm Type
Non-Self-Relieving
Specifications Flow Coefficient Cv
1.1
Specifications Gauge Port Size
1/4 in
Specifications Gauge Port Types
Female National Pipe Tapered (FNPT) Gauge Port, Standard
Specifications Inlet And Outlet Connections
1/2 in. Female National Pipe Tapered (FNPT) | 1/4 in | 3/8 in
Specifications Operating Temperature
250 ºF | 121 ºC
Specifications Outlet Range
0 to 500 psig
Specifications Port Configuration
Standard
Specifications Process Port Size
1/4 in
Specifications Process Port Types
Female National Pipe Tapered (FNPT)
Specifications Seat Material
Polyetheretherketone (PEEKâ¢)
Specifications Surface Finish Of Diaphragm Cavity
< 25 Ra
Specifications Weight
3.2 lb | 1.45 kg
