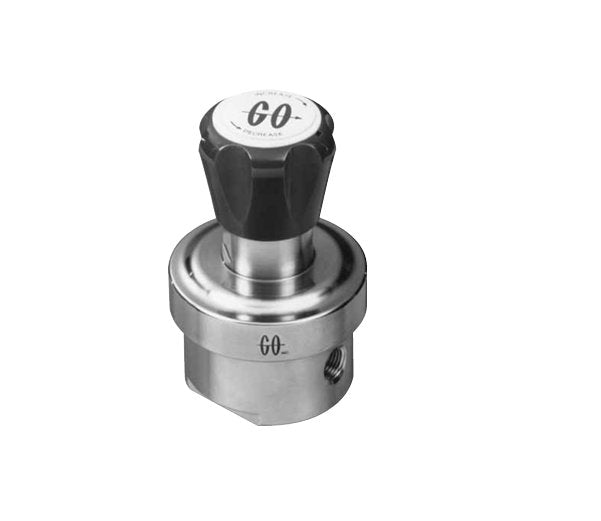

GO Regulator PR-7 Ultra High Flow Adjustable Single Stage Regulator
GO Regulator PR-7 Ultra High Flow Adjustable Single Stage Regulator
SKU:GOP-62cc0c
High-performance PR-7 Regulator for precise pressure control in high gas flow applications. Withstands up to 3600 psig inlet pressure.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
GO Regulator PR-7 Ultra High Flow Adjustable Single Stage Regulator
$349.99
Quantity: 1
Claim Your Seller Account
GO Regulator PR-7 Ultra High Flow Adjustable Single Stage Regulator
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The GO Regulator PR-7 provides precise pressure control for high gas flow applications up to 1000 liters per minute, designed to maintain outlet pressures consistently even with varying flow requirements. With a stainless steel diaphragm, this regulator can withstand inlet pressures up to 3600 psig. Its minimal droop, no resonance design, and tamper-proof stainless steel cap make it ideal for primary pressure supply in downstream regulators. The PR-7 meets stringent industry standards for durability, efficiency, and reliability.
Product Specifications
Features And Specifications Features And Specifications
Minimal droop with large flow increasedNo resonance with large hydrogen flowsStainless steel diaphragm or INCONEL® diaphragm316L stainless steel or brass construction (optional HASTELLOY®, MONEL®, or chrome-plated brass)T-handle adjusting assembly for easier adjustment in the 250 and 500 psig rangesMaterial of construction: Brass, stainless steel, Fluorocarbon (FKM), Polytetrafluoroethylene (PTFE), Polyetheretherketone (PEEK), or Kalrez®Stainless steel capCv flow coefficient = 1.1 (full Cv with 1/2" ported unit only)Maximum inlet pressure of 3600 psig with Polyetheretherketone (PEEK) seatOutlet pressure ranges of: 0-10, 0-25, 0-50, 0-100, 0-150, 0-250 and 0-500 psig
Options Options
Self-relievingPanel mountCaptured vent
Specifications Body Material
316L Stainless Steel, Stainless Steel Diaphragm
Specifications Cap Assembly
Tamper-Proof, Stainless Steel
Specifications Diaphragm Facing Material
Polytetrafluoroethylene (PTFE)/Metal Backing
Specifications Diaphragm Type
Non-Self-Relieving
Specifications Flow Coefficient Cv
1.1
Specifications Gauge Port Size
1/4 in
Specifications Gauge Port Types
Female National Pipe Tapered (FNPT) Gauge Port, Standard
Specifications Inlet And Outlet Connections
1/2 in. Female National Pipe Tapered (FNPT) | 1/4 in | 3/8 in
Specifications Operating Temperature
150 ºF | 66 ºC
Specifications Outlet Range
0 to 10 psig
Specifications Port Configuration
Standard
Specifications Process Port Size
1/2 in
Specifications Process Port Types
Female National Pipe Tapered (FNPT)
Specifications Seat Material
Polytetrafluoroethylene (PTFE)
Specifications Surface Finish Of Diaphragm Cavity
< 25 Ra
Specifications Weight
3.2 lb | 1.45 kg
