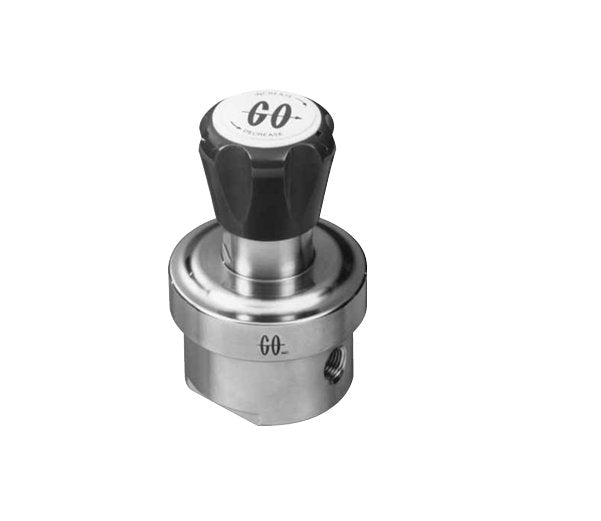

The GO Regulator PR-7 Ultra High Flow Adjustable Single Stage Regulator is specifically engineered for high gas flow applications requiring precision and reliability. With a durable construction of 316L Stainless Steel and Stainless Steel Diaphragm, it can withstand inlet pressures up to 3600 psig while maintaining outlet pressures with large flow variations. Designed to handle hydrogen flows up to 1000 liters per minute without resonance issues, this regulator is ideal as a primary pressure supply for downstream regulators. Its features include a T-Handle for easy adjustment, minimal droop under increased flow, and options for self-relieving and panel mount configurations.
Product Specifications
Features And Specifications Features And Specifications
Minimal droop with large flow increasedNo resonance with large hydrogen flowsStainless steel diaphragm or INCONEL® diaphragm316L stainless steel or brass construction (optional HASTELLOY®, MONEL®, or chrome-plated brass)T-handle adjusting assembly for easier adjustment in the 250 and 500 psig rangesMaterial of construction: Brass, stainless steel, Fluorocarbon (FKM), Polytetrafluoroethylene (PTFE), Polyetheretherketone (PEEK), or Kalrez®Stainless steel capCv flow coefficient = 1.1 (full Cv with 1/2" ported unit only)Maximum inlet pressure of 3600 psig with Polyetheretherketone (PEEK) seatOutlet pressure ranges of: 0-10, 0-25, 0-50, 0-100, 0-150, 0-250 and 0-500 psig
Options Options
Self-relievingPanel mountCaptured vent
Specifications Body Material
316L Stainless Steel, Stainless Steel Diaphragm
Specifications Cap Assembly
T-Handle, Stainless Steel
Specifications Diaphragm Facing Material
Polytetrafluoroethylene (PTFE)/Metal Backing
Specifications Diaphragm Type
Non-Self-Relieving
Specifications Flow Coefficient Cv
1.1
Specifications Gauge Port Size
1/4 in
Specifications Gauge Port Types
Female National Pipe Tapered (FNPT) Gauge Port, Standard
Specifications Inlet And Outlet Connections
1/2 in. Female National Pipe Tapered (FNPT) | 1/4 in | 3/8 in
Specifications Operating Temperature
250 ºF | 121 ºC
Specifications Outlet Range
0 to 250 psig
Specifications Port Configuration
Standard
Specifications Process Port Size
1/2 in
Specifications Process Port Types
Female National Pipe Tapered (FNPT)
Specifications Seat Material
Polyetheretherketone (PEEKâ¢)
Specifications Surface Finish Of Diaphragm Cavity
< 25 Ra
Specifications Weight
3.2 lb | 1.45 kg
