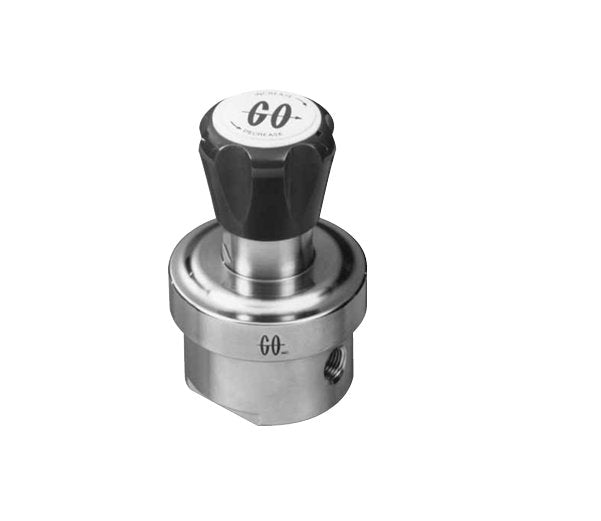

GO Regulator PR-7 Ultra High Flow Single Stage Regulator
GO Regulator PR-7 Ultra High Flow Single Stage Regulator
SKU:GOP-2db549
GO Regulator PR-7: Precision control for high gas flow applications, stainless steel construction, and maximum inlet pressure of 3600 psig.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
GO Regulator PR-7 Ultra High Flow Single Stage Regulator
$349.99
Quantity: 1
Claim Your Seller Account
GO Regulator PR-7 Ultra High Flow Single Stage Regulator
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The GO Regulator PR-7 is a top-of-the-line ultra high flow single stage regulator designed for high gas flow applications with low inlet pressures. With a stainless steel diaphragm, stainless steel construction, and a maximum inlet pressure of 3600 psig, it ensures reliable performance. Featuring a T-handle adjusting assembly, minimal droop with large flow increases, and no resonance issues with large hydrogen flows, this regulator offers precise control and durability. It meets stringent industry standards for quality and safety, making it ideal for both industrial and government procurement needs.
Product Specifications
Features And Specifications Features And Specifications
Minimal droop with large flow increasedNo resonance with large hydrogen flowsStainless steel diaphragm or INCONEL® diaphragm316L stainless steel or brass construction (optional HASTELLOY®, MONEL®, or chrome-plated brass)T-handle adjusting assembly for easier adjustment in the 250 and 500 psig rangesMaterial of construction: Brass, stainless steel, Fluorocarbon (FKM), Polytetrafluoroethylene (PTFE), Polyetheretherketone (PEEK), or Kalrez®Stainless steel capCv flow coefficient = 1.1 (full Cv with 1/2" ported unit only)Maximum inlet pressure of 3600 psig with Polyetheretherketone (PEEK) seatOutlet pressure ranges of: 0-10, 0-25, 0-50, 0-100, 0-150, 0-250 and 0-500 psig
Options Options
Self-relievingPanel mountCaptured vent
Specifications Body Material
316L Stainless Steel, Stainless Steel Diaphragm
Specifications Cap Assembly
Standard, Stainless Steel
Specifications Diaphragm Facing Material
Polytetrafluoroethylene (PTFE)/Metal Backing
Specifications Diaphragm Type
Non-Self-Relieving
Specifications Flow Coefficient Cv
1.1
Specifications Gauge Port Size
1/4 in
Specifications Gauge Port Types
Female National Pipe Tapered (FNPT) Gauge Port, Standard
Specifications Inlet And Outlet Connections
1/2 in. Female National Pipe Tapered (FNPT) | 1/4 in | 3/8 in
Specifications Operating Temperature
150 ºF | 66 ºC
Specifications Outlet Range
0 to 100 psig
Specifications Port Configuration
Standard
Specifications Process Port Size
1/4 in
Specifications Process Port Types
Female National Pipe Tapered (FNPT)
Specifications Seat Material
Polytetrafluoroethylene (PTFE)
Specifications Surface Finish Of Diaphragm Cavity
< 25 Ra
Specifications Weight
3.2 lb | 1.45 kg
