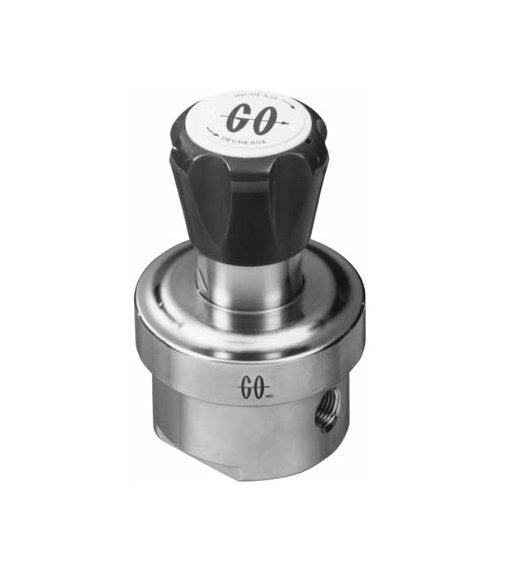

GO Regulator PR-7LF High Sensitivity Pressure Regulator
GO Regulator PR-7LF High Sensitivity Pressure Regulator
SKU:GOP-96d520
Achieve precise pressure control with the GO Regulator PR-7LF Series for analytical instrumentation. Stainless steel or brass construction with a Cv of 0.2.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
GO Regulator PR-7LF High Sensitivity Pressure Regulator
$349.99
Quantity: 1
Claim Your Seller Account
GO Regulator PR-7LF High Sensitivity Pressure Regulator
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The GO Regulator PR-7LF Series pressure reducing regulator provides precise low outlet pressure control perfect for analytical instrumentation. Combining a large diaphragm sensing area with low flow seat assembly enables pressure control down to 10 inches of water. Available in stainless steel or brass, with options for special alloys, this regulator offers adjustable outlet pressure ranges, stainless steel construction, and a Cv flow coefficient of 0.2, making it ideal for sensitive pressure control applications.
Product Specifications
Features And Specifications Features And Specifications
Sensitive pressure controlLow pressure adjustabilityStainless steel or Brass construction (optional MONEL® or HASTELLOY® C construction)Inlet pressure to 3600 psigAdjustable outlet pressure ranges 0 - 6, 0 - 25, 0 - 50, 0 - 75, 0 - 125, 0 - 250 psig and 500 psigCv flow coefficients of 0.025; 0.06; 0.20; 0.50Polytetrafluoroethylene (PTFE)/Fluorocarbon (FKM) diaphragm available up to 25 psig316L stainless steel or brass, INCONEL® and Tefzel®
Specifications Body Material
316L Stainless Steel, Stainless Steel Diaphragm
Specifications Cap Assembly
Standard, Stainless Steel
Specifications Diaphragm Backing Material
Metal Backing, Standard
Specifications Diaphragm Facing Material
Polytetrafluoroethylene (PTFE)
Specifications Diaphragm Type
Standard Diaphragm
Specifications Flow Coefficient Cv
0.2
Specifications Gauge Port Size
1/4 in
Specifications Gauge Port Types
Female National Pipe Tapered (FNPT) Gauge Port
Specifications Inlet And Outlet Connections
1/4 in. Female National Pipe Tapered (FNPT) Standard
Specifications Inlet Filter
20 µm
Specifications Operating Temperature
-40 to +250 ºF | -40 to +121 ºC
Specifications Outlet Range
0 to 125 psig
Specifications Port Configuration
Standard
Specifications Process Port Size
1/2 in
Specifications Process Port Types
Female National Pipe Tapered (FNPT)
Specifications Seat Material
Tefzel®
Specifications Surface Finish Of Diaphragm Cavity
< 25 Ra
Specifications Weight
3.2 lb | 1.45 kg
