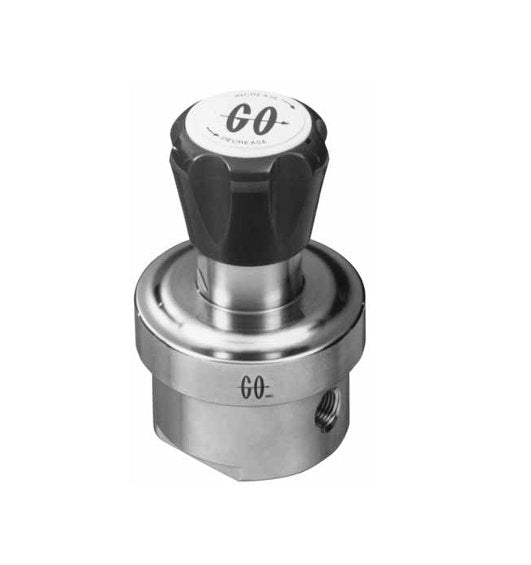

GO Regulator PR-7LF Pressure Reducing Regulator

Name: GO Regulator PR-7LF Pressure Reducing Regulator
Brand: Del Val Controls, Inc
SKU: GOP-22f0a4
Price: 299.99 USD
Availability: OutOfStock

SKU:GOP-22f0a4

Achieve precise low outlet pressure control with the GO Regulator PR-7LF Pressure Reducing Regulator. Ideal for analytical instrumentation with stainless steel or brass construction.

$299.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Experience precise low outlet pressure control with the GO Regulator PR-7LF High Sensitivity Single Stage Pressure Reducing Regulator. Ideal for analytical instrumentation, this regulator offers features like sensitive pressure control, low pressure adjustability, and a choice of stainless steel or brass construction. With a Cv flow coefficient of 0.06 and adjustable outlet pressure ranges, it ensures reliable performance in demanding environments. Optional MONEL® or HASTELLOY® C construction is available upon request.

Product Specifications

Features And Specifications Features And Specifications

Sensitive pressure controlLow pressure adjustabilityStainless steel or Brass construction (optional MONELÂ® or HASTELLOYÂ® C construction)Inlet pressure to 3600 psigAdjustable outlet pressure ranges 0 - 6, 0 - 25, 0 - 50, 0 - 75, 0 - 125, 0 - 250 psig and 500 psigCv flow coefficients of 0.025; 0.06; 0.20; 0.50Polytetrafluoroethylene (PTFE)/Fluorocarbon (FKM) diaphragm available up to 25 psig316L stainless steel or brass, INCONELÂ® and TefzelÂ®

Options Options

EB33

Specifications Body Material

316L Stainless Steel, Stainless Steel Diaphragm

Specifications Cap Assembly

Tamper-Proof, Stainless Steel

Specifications Flow Coefficient Cv

0.06

Specifications Inlet And Outlet Connections

1/4 in. Female National Pipe Tapered (FNPT) Standard

Specifications Inlet Filter

20 Âµm

Specifications Operating Temperature

-40 to +250 ÂºF | -40 to +121 ÂºC

Specifications Outlet Range

0 to 50 psig

Specifications Port Configuration

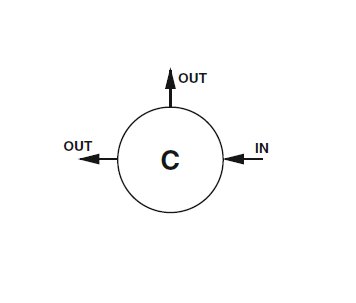

C - See Diagram for Port Configuration

Specifications Seat Material

Polychlorotrifluoroethylene (PCTFE) (Formerly Kel-FÂ® 81)

Specifications Surface Finish Of Diaphragm Cavity

< 25 Ra

Specifications Weight

3.2 lb | 1.45 kg

GO Regulator PR-7LF Pressure Reducing Regulator
