Achieve precise low pressure control with the GO Regulator PR-7LF. Ideal for analytical instrumentation, offering high sensitivity and durable construction.
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
GO Regulator PR-7LF Pressure Reducing Regulator
$399.99
Quantity: 1
Claim Your Seller Account
GO Regulator PR-7LF Pressure Reducing Regulator
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

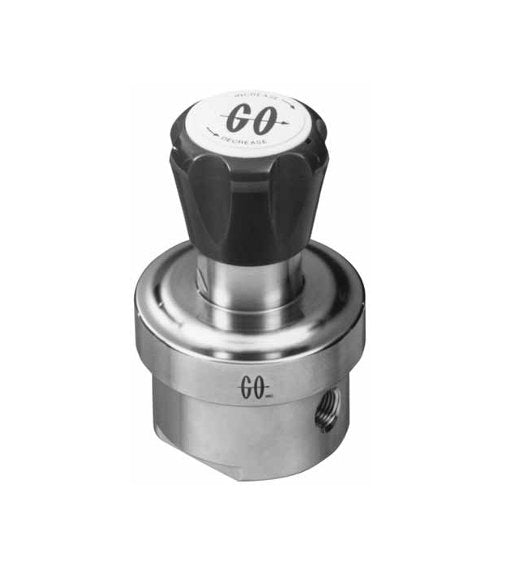

The GO Regulator PR-7LF High Sensitivity Single Stage Pressure Reducing Regulator is expertly designed for precise low outlet pressure control in analytical instrumentation applications. Combining a large diaphragm sensing area and a low flow seat assembly, this regulator offers pressure control down to 10 inches of water. Choose from durable stainless steel or brass construction, with special alloys available upon request. Enjoy sensitive pressure control, low pressure adjustability, and a wide range of adjustable outlet pressure options. The PR-7LF ensures reliable performance and accuracy in pressure regulation.
Product Specifications
Features And Specifications Features And Specifications
Sensitive pressure controlLow pressure adjustabilityStainless steel or Brass construction (optional MONEL® or HASTELLOY® C construction)Inlet pressure to 3600 psigAdjustable outlet pressure ranges 0 - 6, 0 - 25, 0 - 50, 0 - 75, 0 - 125, 0 - 250 psig and 500 psigCv flow coefficients of 0.025; 0.06; 0.20; 0.50Polytetrafluoroethylene (PTFE)/Fluorocarbon (FKM) diaphragm available up to 25 psig316L stainless steel or brass, INCONEL® and Tefzel®
Specifications Body Material
316L Stainless Steel, Stainless Steel Diaphragm
Specifications Cap Assembly
Fine Adjust, 1/2" Panel Mount, Stainless Steel
Specifications Diaphragm Backing Material
Metal Backing, Standard
Specifications Diaphragm Facing Material
Polytetrafluoroethylene (PTFE)
Specifications Diaphragm Type
Standard Diaphragm
Specifications Flow Coefficient Cv
0.2
Specifications Gauge Port Size
1/4 in
Specifications Gauge Port Types
Female National Pipe Tapered (FNPT) Gauge Port
Specifications Inlet And Outlet Connections
1/4 in. Female National Pipe Tapered (FNPT) Standard
Specifications Inlet Filter
20 µm
Specifications Operating Temperature
-40 to +250 ºF | -40 to +121 ºC
Specifications Outlet Range
0 to 6 psig
Specifications Port Configuration
Standard
Specifications Process Port Size
1/4 in
Specifications Process Port Types
Female National Pipe Tapered (FNPT)
Specifications Seat Material
Perfluoroelastomer (FFKM) (0.2 Cv only)
Specifications Surface Finish Of Diaphragm Cavity
< 25 Ra
Specifications Weight
3.2 lb | 1.45 kg
