GO Regulator PR-7LF Pressure Reducing Regulator

Name: GO Regulator PR-7LF Pressure Reducing Regulator
Brand: Del Val Controls, Inc
SKU: GOP-486442
Price: 249.99 USD
Availability: OutOfStock

SKU:GOP-486442

Regulate pressure precisely with the GO Regulator PR-7LF for analytical instrumentation needs.

$249.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

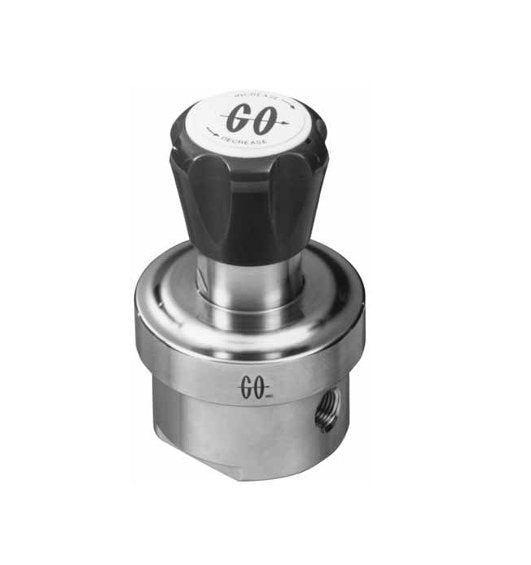

The GO Regulator PR-7LF High Sensitivity Single Stage Pressure Reducing Regulator offers precise low outlet pressure control tailored for analytical instrumentation needs. With superior features like a large diaphragm sensing area and low flow seat assembly, this regulator enables precise pressure control down to 10 inches of water. Available in stainless steel or brass construction with optional special alloys, it ensures durability and adaptability for various applications.

Product Specifications

Features And Specifications Features And Specifications

Sensitive pressure controlLow pressure adjustabilityStainless steel or Brass construction (optional MONELÂ® or HASTELLOYÂ® C construction)Inlet pressure to 3600 psigAdjustable outlet pressure ranges 0 - 6, 0 - 25, 0 - 50, 0 - 75, 0 - 125, 0 - 250 psig and 500 psigCv flow coefficients of 0.025; 0.06; 0.20; 0.50Polytetrafluoroethylene (PTFE)/Fluorocarbon (FKM) diaphragm available up to 25 psig316L stainless steel or brass, INCONELÂ® and TefzelÂ®

Specifications Body Material

316L Stainless Steel, Stainless Steel Diaphragm

Specifications Cap Assembly

Standard, Stainless Steel

Specifications Diaphragm Backing Material

Fluorocarbon (FKM)

Specifications Diaphragm Facing Material

Polytetrafluoroethylene (PTFE)

Specifications Diaphragm Type

Standard Diaphragm

Specifications Flow Coefficient Cv

0.06

Specifications Gauge Port Size

1/4 in

Specifications Gauge Port Types

Female National Pipe Tapered (FNPT) Gauge Port

Specifications Inlet And Outlet Connections

1/4 in. Female National Pipe Tapered (FNPT) Standard

Specifications Inlet Filter

20 Âµm

Specifications Operating Temperature

-40 to +250 ÂºF | -40 to +121 ÂºC

Specifications Outlet Range

0 to 6 psig

Specifications Port Configuration

Standard

Specifications Process Port Size

1/4 in

Specifications Process Port Types

Female National Pipe Tapered (FNPT)

Specifications Seat Material

Polychlorotrifluoroethylene (PCTFE) (Formerly Kel-FÂ® 81)

Specifications Surface Finish Of Diaphragm Cavity

< 25 Ra

Specifications Weight

3.2 lb | 1.45 kg

GO Regulator PR-7LF Pressure Reducing Regulator
