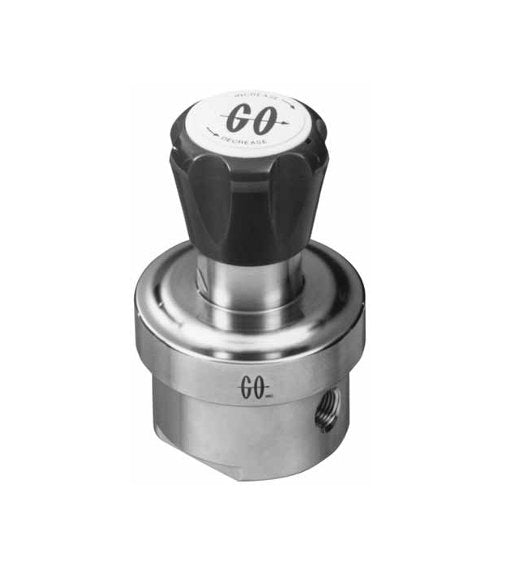

GO Regulator PR-7LF Single Stage Pressure Reducing Regulator
GO Regulator PR-7LF Single Stage Pressure Reducing Regulator
SKU:GOP-3d7e86
Achieve precise low outlet pressure control with the GO Regulator PR-7LF Single Stage Regulator. Ideal for analytical instrumentation.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
GO Regulator PR-7LF Single Stage Pressure Reducing Regulator
$189.99
Quantity: 1
Claim Your Seller Account
GO Regulator PR-7LF Single Stage Pressure Reducing Regulator
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The GO Regulator PR-7LF High Sensitivity Single Stage Pressure Reducing Regulator is engineered for precise low outlet pressure control, ideal for analytical instrumentation applications. With a large diaphragm sensing area and low flow seat assembly, it offers pressure control down to 10 inches of water. This regulator, available in stainless steel or brass, ensures sensitive pressure control, low pressure adjustability, and reliability. With a Cv of 0.06 and options for various outlet pressure ranges, materials, and diaphragm types, it meets stringent industry standards for consistent performance and durability.
Product Specifications
Features And Specifications Features And Specifications
Sensitive pressure controlLow pressure adjustabilityStainless steel or Brass construction (optional MONEL® or HASTELLOY® C construction)Inlet pressure to 3600 psigAdjustable outlet pressure ranges 0 - 6, 0 - 25, 0 - 50, 0 - 75, 0 - 125, 0 - 250 psig and 500 psigCv flow coefficients of 0.025; 0.06; 0.20; 0.50Polytetrafluoroethylene (PTFE)/Fluorocarbon (FKM) diaphragm available up to 25 psig316L stainless steel or brass, INCONEL® and Tefzel®
Specifications Body Material
316L Stainless Steel, Stainless Steel Diaphragm
Specifications Cap Assembly
Standard, Stainless Steel
Specifications Diaphragm Backing Material
Metal Backing, Standard
Specifications Diaphragm Facing Material
Polytetrafluoroethylene (PTFE)
Specifications Diaphragm Type
Self-Relieving
Specifications Flow Coefficient Cv
0.06
Specifications Gauge Port Size
1/4 in
Specifications Gauge Port Types
Female National Pipe Tapered (FNPT) Gauge Port
Specifications Inlet And Outlet Connections
1/4 in. Female National Pipe Tapered (FNPT) Standard
Specifications Inlet Filter
20 µm
Specifications Operating Temperature
-40 to +250 ºF | -40 to +121 ºC
Specifications Outlet Range
0 to 75 psig
Specifications Port Configuration
Standard
Specifications Process Port Size
1/4 in
Specifications Process Port Types
Female National Pipe Tapered (FNPT)
Specifications Seat Material
Tefzel®
Specifications Surface Finish Of Diaphragm Cavity
< 25 Ra
Specifications Weight
3.2 lb | 1.45 kg
