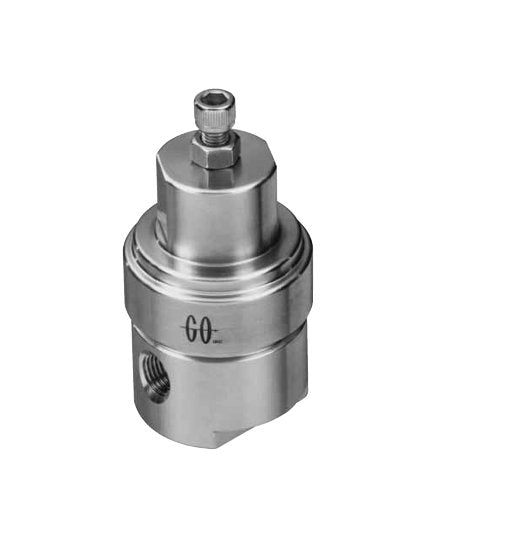

GO Regulator PR-9 High Temp Stainless Steel Pressure Regulator
GO Regulator PR-9 High Temp Stainless Steel Pressure Regulator
SKU:GOP-4aaf5f
Precision control up to 1000°F for gases and liquids with all-metal construction and metal-to-metal seal.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
GO Regulator PR-9 High Temp Stainless Steel Pressure Regulator
$299.99
Quantity: 1
Claim Your Seller Account
GO Regulator PR-9 High Temp Stainless Steel Pressure Regulator
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The GO Regulator PR-9 High Temperature Single Stage Stainless Steel Pressure Regulator is engineered for precise pressure control of gases and liquids in extreme environments up to 1000°F. With all-metal construction and a metal-to-metal seat seal, this regulator ensures extended reliability in high temperature applications where elastomers are prohibited. The PR-9 features an adjustable outlet range of 0-250 psig, stainless steel body material, and tantalum diaphragm liner, making it ideal for critical industrial processes.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Features And Specifications Features And Specifications
650 °F (340 °C) or 1000 °F (540 °C)All metal construction, no elastomersInlet pressure 3000 psig at 650 °F (343 °C), 1500 psig at 1000 °F (538 °C)Adjustable outlet pressure ranges of 0-25, 0-50, 0-100 and 0-250 psigStainless steel (316L or 347), INCONEL®, tungsten carbide in flow streamCv flow coefficient of 0.06 and 0.2Metal-to-metal seat seal
Note Note
Contact the factory for any additional requirements
Options Options
3/8" FNPT connectionPanel mount (requires 13/8" mounting hole)Extra inlet and outlet portsPressure Test Certificate
Specifications Body Material
316L Stainless Steel (650 °F)
Specifications Cap Assembly
Standard, Stainless Steel
Specifications Diaphragm Linerbacking
Tantalum
Specifications Diaphragm Type
Standard
Specifications Flow Coefficient Cv
0.06
Specifications Gauge Port Size
1/4 in
Specifications Gauge Port Types
Female National Pipe Tapered (FNPT) Gauge Port
Specifications Inlet And Outlet Connections
1/4 in. Female National Pipe Tapered (FNPT)
Specifications Operating Temperature
-382 to +1000 ºF | -200 to +540 ºC
Specifications Outlet Range
0 to 250 psig
Specifications Port Configuration
Standard
Specifications Process Port Size
1/4 in
Specifications Process Port Types
Female National Pipe Tapered (FNPT)
Specifications Seat Material
347 Stainless Steel
Specifications Surface Finish Of Diaphragm Cavity
< 25 Ra
Specifications Type Of Service
Gas or Liquid
Specifications Weight
2.1 lb | 0.95 kg
