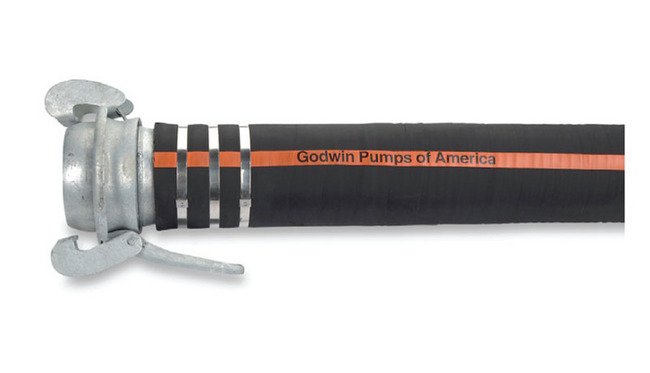

Godwin 4 Inch Heavy-Duty Suction Hose Assembly
Godwin 4 Inch Heavy-Duty Suction Hose Assembly
SKU:GOD-db576a
The Godwin 4 Inch Heavy-Duty Suction Hose Assembly is designed for water, petroleum, and chemical applications, featuring a 150 psi maximum working pressure and EPDM construction.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Godwin 4 Inch Heavy-Duty Suction Hose Assembly
$89.99
Quantity: 1
Claim Your Seller Account
Godwin 4 Inch Heavy-Duty Suction Hose Assembly
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Godwin 4 Inch Heavy-Duty Suction Hose Assembly is a fully vacuum-rated hose designed for water, petroleum, and chemical applications. With a 4-inch inside diameter and 150 psi maximum working pressure, it is reinforced with synthetic fabric and wire helix for durability. This hose features a smooth EPDM blend tubing, weather-resistant cover, and is flexible, making it ideal for various applications. Resistant to salt water and water-based fertilizers, it operates in temperatures ranging from -25ºF to +185ºF.
Product Specifications
Dimensions Bend Radius
18 in | 457 mm
Dimensions Inside Diameter
4 in | 102 mm
Dimensions Maximum Working Pressure
150 psi | 10 bar
Dimensions Outside Diameter
4.53 in | 115 mm
Dimensions Vacuum
28 inHg
Dimensions Weight
2.79 lb/ft
Features And Benefits 0
Smooth, black EPDM blend tubingWeather-resistant and ozone-resistant EPDM blend cover with fabric impressionReinforced with synthetic fabric with wire helixRated for temperatures from -25 ºF to +185 ºFResistant to salt water and water-based agricultural fertilizersFlexible and economical
Note 0
Specifications and illustrations are subject to revision without notice. Godwin Pumps is not liable for any incompleteness or inaccuracies. Godwin Pumps is not liable for any consequential, incidental or indirect damages relating to these specifications or their use.
Specifications Color
Black
Specifications Fitting Type
Camlock | Flanged | Quick-Disconnect
Specifications Hose Type
Suction | Vacuum
Specifications Ideal For
Chemical Applications | Oil Applications | Water Applications
Specifications Material
EPDM (Ethylene Propylene Diene Monomer)
Specifications Media
Chemical | Oil | Petroleum | Water
Specifications Temperature
-25 to +185 ºF
