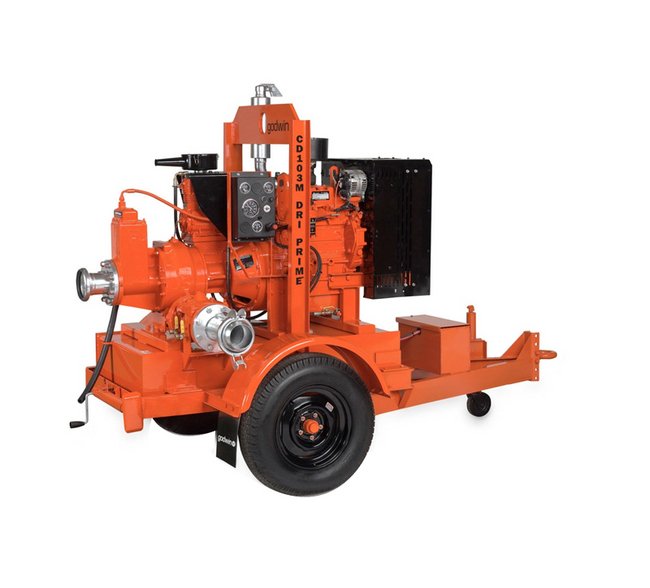

Godwin CD Series 1020 GPM Dri-Prime Contractor Pump
Godwin CD Series 1020 GPM Dri-Prime Contractor Pump
SKU:GOD-9449d6
High-performance Godwin CD Series 1020 GPM Dewatering Pump for efficient solids handling and automatic priming.
Regular price
$6,499.99
Regular price
Sale price
$6,499.99
Unit price
per
Initiate Order
Godwin CD Series 1020 GPM Dri-Prime Contractor Pump
$6,499.99
Quantity: 1
Claim Your Seller Account
Godwin CD Series 1020 GPM Dri-Prime Contractor Pump
$6,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Godwin CD Series 1020 GPM Dri-Prime Contractor Dewatering Centrifugal Pump is designed for efficiency and reliability in dewatering applications. With a maximum capacity of 1020 USGPM and the ability to handle solids up to 3.0" in diameter, this pump offers exceptional performance. It features automatic priming to 28 feet of suction lift, along with options for automatic or manual operation. Constructed with high-quality materials including cast iron, carbon steel, and silicon carbide, this pump ensures durability and longevity in challenging environments.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Materials Impeller
Cast Steel BS3100 A5 Hardness to 200 HB Brinell
Materials Mechanical Seal
Silicon Carbide Face; Viton Elastomers; Stainless Steel Body
Materials Non Return Valve Body
Cast Iron BS EN 1561 - 1997
Materials Pump Casing And Suction Cover
Cast Iron BS EN 1561:1997
Materials Pump Shaft
Carbon Steel BS 970:1991 817M40T
Materials Wearplates
Cast Iron BS EN 1561 - 1997
Note 0
All information is approximate and for general guidance only.© 2014 Xylem, Inc. All rights reserved. Godwin is a trademark of Xylem Dewatering Solutions, Inc., a wholly-owned subsidiary of Xylem Inc. Specifications and illustrations are subject to revision without notice. Xylem makes no representation regarding the completeness or accuracy of this information and is not liable for any direct or indirect damages arising from or relating to this information or its use.
Specifications Control Options
Automatic | Manual
Specifications Delivery Connection
4 in. 150# ANSI B16.5
Specifications Maximum Capacity
1020 USGPM
Specifications Maximum Casing Pressure
113 psi
Specifications Maximum Impeller Diameter
10.1 in
Specifications Maximum Operating Speed
2200 rpm
Specifications Maximum Operating Temperature
176 ºF
Specifications Maximum Pressure
75 psi
Specifications Maximum Solids Handling
3.0 in
Specifications Maximum Suction Pressure
58 psi
Specifications Series
CD
Specifications Suction Connection
4 in. 150# ANSI B16.5
Specifications Suction Lift
28 ft
