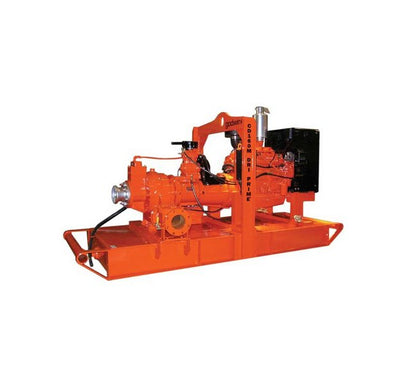

Godwin CD Series Contractor Dewatering Centrifugal Pump
Godwin CD Series Contractor Dewatering Centrifugal Pump
SKU:GOD-3c8c3a
Reliable Godwin CD Series Contractor Dewatering Centrifugal Pump with 1880 GPM capacity & solids handling up to 3.0". Automatic priming & durable design for versatile applications.
Regular price
$5,499.99
Regular price
Sale price
$5,499.99
Unit price
per
Initiate Order
Godwin CD Series Contractor Dewatering Centrifugal Pump
$5,499.99
Quantity: 1
Claim Your Seller Account
Godwin CD Series Contractor Dewatering Centrifugal Pump
$5,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience superior dewatering performance with the Godwin CD Series Contractor Dewatering Centrifugal Pump. Boasting a maximum capacity of 1880 Gallons Per Minute (GPM) and the ability to handle solids up to 3.0" in diameter, this pump delivers reliable operation. Featuring automatic priming to 28' of suction lift, automatic/manual control options, and durable construction including cast iron pump casing, this pump ensures efficiency and longevity. Ideal for diverse applications, this pump meets stringent procurement standards, providing a dependable solution for both consumer and institutional buyers.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Materials Impeller
Cast Steel BS3100 A5 Hardness to 200 HB Brinell
Materials Mechanical Seal
Silicon Carbide Face; Viton Elastomers; Stainless Steel Body
Materials Non Return Valve Body
Cast Iron BS EN 1561 - 1997
Materials Pump Casing And Suction Cover
Cast Iron BS EN 1561:1997
Materials Pump Shaft
Carbon Steel BS 970:1991 817M40T
Materials Wearplates
Cast Iron BS EN 1561 - 1997
Note 0
All information is approximate and for general guidance only.© 2014 Xylem, Inc. All rights reserved. Godwin is a trademark of Xylem Dewatering Solutions, Inc., a wholly-owned subsidiary of Xylem Inc. Specifications and illustrations are subject to revision without notice. Xylem makes no representation regarding the completeness or accuracy of this information and is not liable for any direct or indirect damages arising from or relating to this information or its use.
Specifications Control Options
Automatic | Manual
Specifications Delivery Connection
6 in. 150# ANSI B16.5
Specifications Maximum Capacity
1880 USGPM
Specifications Maximum Casing Pressure
173 psi
Specifications Maximum Impeller Diameter
14.0 in
Specifications Maximum Operating Speed
2000 rpm
Specifications Maximum Operating Temperature
176 ºF
Specifications Maximum Pressure
115 psi
Specifications Maximum Solids Handling
3.0 in
Specifications Maximum Suction Pressure
73 psi
Specifications Series
CD
Specifications Suction Connection
6 in. 150# ANSI B16.5
Specifications Suction Lift
28 ft
