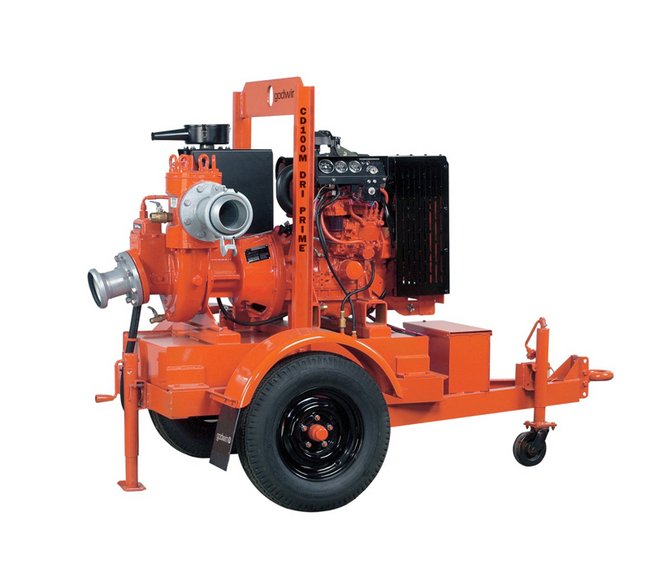

Godwin CD Series Contractor Dewatering Centrifugal Pump
Godwin CD Series Contractor Dewatering Centrifugal Pump
SKU:GOD-ebc16d
Powerful Godwin Contractor Dewatering Pump with 1010 USGPM capacity, automatic priming, and durable construction.
Regular price
$2,699.99
Regular price
Sale price
$2,699.99
Unit price
per
Initiate Order
Godwin CD Series Contractor Dewatering Centrifugal Pump
$2,699.99
Quantity: 1
Claim Your Seller Account
Godwin CD Series Contractor Dewatering Centrifugal Pump
$2,699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Godwin CD Series Contractor Dewatering Centrifugal Pump delivers an impressive maximum capacity of 1010 USGPM and can handle solids up to 1.8" in diameter with ease. With automatic priming up to 28 ft of suction lift, this pump offers efficient operations. Built with durable materials like Cast Iron and Cast Steel, it ensures reliability under tough conditions. The pump also features automatic/manual control options and is designed to meet industry standards for performance and durability.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Materials Impeller
Cast Steel BS3100 A5 Hardness to 200 HB Brinell
Materials Mechanical Seal
Silicon Carbide Face; Viton Elastomers; Stainless Steel Body
Materials Non Return Valve Body
Cast Iron BS EN 1561 - 1997
Materials Pump Casing And Suction Cover
Cast Iron BS EN 1561:1997
Materials Pump Shaft
Carbon Steel BS 970:1991 817M40T
Materials Wearplates
Cast Iron BS EN 1561 - 1997
Note 0
All information is approximate and for general guidance only.© 2014 Xylem, Inc. All rights reserved. Godwin is a trademark of Xylem Dewatering Solutions, Inc., a wholly-owned subsidiary of Xylem Inc. Specifications and illustrations are subject to revision without notice. Xylem makes no representation regarding the completeness or accuracy of this information and is not liable for any direct or indirect damages arising from or relating to this information or its use.
Specifications Control Options
Automatic | Manual
Specifications Delivery Connection
4 in. 125# ANSI B16.1
Specifications Maximum Capacity
1010 USGPM
Specifications Maximum Casing Pressure
83 psi
Specifications Maximum Impeller Diameter
9.1 in
Specifications Maximum Operating Speed
2200 rpm
Specifications Maximum Operating Temperature
176 ºF
Specifications Maximum Pressure
55 psi
Specifications Maximum Solids Handling
1.8 in
Specifications Maximum Suction Pressure
41 psi
Specifications Series
CD
Specifications Suction Connection
4 in. 125# ANSI B16.1
Specifications Suction Lift
28 ft
