Godwin CD Series Contractor Dewatering Pump
Godwin CD Series Contractor Dewatering Pump
SKU:GOD-e9aa48
Powerful and reliable Godwin Contractor Dewatering Pump with 2290 GPM capacity, ideal for tough dewatering tasks.
Regular price
$4,999.99
Regular price
Sale price
$4,999.99
Unit price
per
Initiate Order
Godwin CD Series Contractor Dewatering Pump
$4,999.99
Quantity: 1
Claim Your Seller Account
Godwin CD Series Contractor Dewatering Pump
$4,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

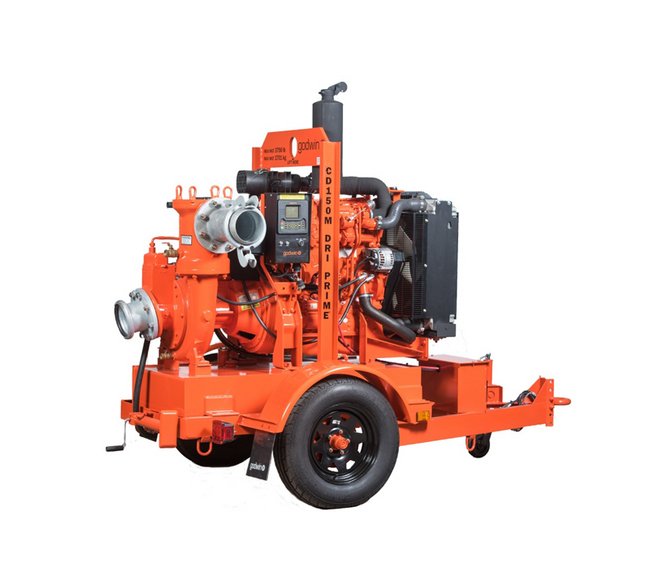

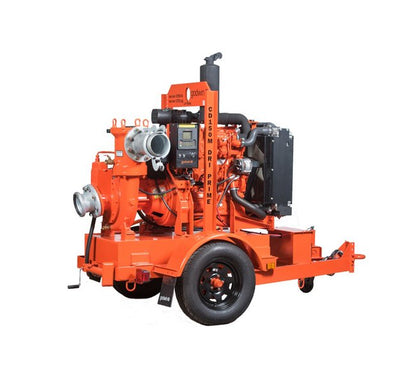

The Godwin CD Series Contractor Dewatering Pump is a robust centrifugal pump designed for demanding dewatering applications. With a maximum capacity of 2290 GPM and the ability to handle solids up to 3.0 inches, this pump offers reliable performance in challenging environments. Featuring Field Smart Technology for optional wireless remote access and PrimeGuard 2 control panel for automatic or manual starting/stopping, this pump ensures efficient operation. Constructed with quality materials like cast iron and carbon steel, and equipped with a Silicon Carbide mechanical seal, this pump is built to last. Trust in the Godwin Dri-Prime technology for seamless priming up to 28 feet of suction lift from dry conditions.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Materials Impeller
Cast Steel BS3100 A5 Hardness to 200 HB Brinell
Materials Mechanical Seal
Silicon Carbide Face; Viton Elastomers; Stainless Steel Body
Materials Non Return Valve Body
Cast Iron BS EN 1561 - 1997
Materials Pump Casing And Suction Cover
Cast Iron BS EN 1561:1997
Materials Pump Shaft
Carbon Steel BS 970:1991 817M40T
Materials Wearplates
Cast Iron BS EN 1561 - 1997
Note 0
All information is approximate and for general guidance only.© 2014 Xylem, Inc. All rights reserved. Godwin is a trademark of Xylem Dewatering Solutions, Inc., a wholly-owned subsidiary of Xylem Inc. Specifications and illustrations are subject to revision without notice. Xylem makes no representation regarding the completeness or accuracy of this information and is not liable for any direct or indirect damages arising from or relating to this information or its use.
Specifications Control Options
Automatic | Manual
Specifications Delivery Connection
6 in. 150# ANSI B16.5
Specifications Maximum Capacity
2290 USGPM
Specifications Maximum Casing Pressure
105 psi
Specifications Maximum Impeller Diameter
11.0 in
Specifications Maximum Operating Speed
2200 rpm
Specifications Maximum Operating Temperature
176 ºF
Specifications Maximum Pressure
70 psi
Specifications Maximum Solids Handling
3.0 in
Specifications Maximum Suction Pressure
58 psi
Specifications Series
CD
Specifications Suction Connection
6 in. 150# ANSI B16.5
Specifications Suction Lift
28 ft
