Godwin CD500M Contractor Dewatering Pump
Godwin CD500M Contractor Dewatering Pump
SKU:GOD-c0cacb
Experience unmatched dewatering capability with the Godwin CD500M Pump. Max flow rate of 16120 USGPM, automatic priming, and robust construction.
Regular price
$18,999.99
Regular price
Sale price
$18,999.99
Unit price
per
Initiate Order
Godwin CD500M Contractor Dewatering Pump
$18,999.99
Quantity: 1
Claim Your Seller Account
Godwin CD500M Contractor Dewatering Pump
$18,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

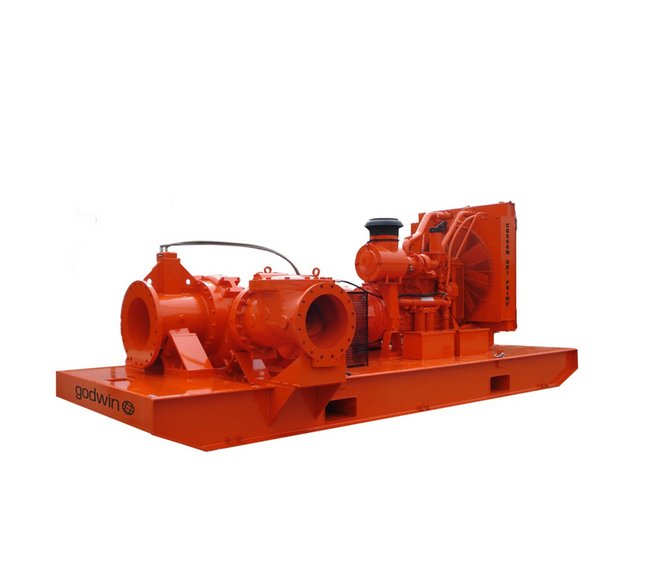

The Godwin CD500M Contractor Dewatering Pump from the renowned Dri-Prime® CD Series is a powerhouse with a maximum capacity of 16120 USGPM. This pump can effortlessly handle solids up to 3.1" in diameter, making it ideal for demanding dewatering tasks. With features like automatic priming to 28 ft of suction lift, a robust control panel for easy operation, and the option for remote access, this pump ensures efficient and reliable performance. Constructed with high-quality materials like cast iron, carbon steel, and cast steel, the Godwin CD500M is designed for durability and longevity, meeting the rigorous demands of both consumer and institutional settings.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Materials Impeller
Cast Steel BS3100 A5 Hardness to 200 HB Brinell
Materials Mechanical Seal
Double Mechanical Seal; Tungsten Carbide Face; Viton Elastomers; Stainless Steel Body
Materials Non Return Valve Body
Cast Iron BS EN 1561 - 1997
Materials Pump Casing And Suction Cover
Cast Iron BS EN 1561:1997
Materials Pump Shaft
Carbon Steel BS 970:1991 817M40T
Materials Wearplates
Cast Iron BS EN 1561 - 1997
Note 0
All information is approximate and for general guidance only.© 2014 Xylem, Inc. All rights reserved. Godwin is a trademark of Xylem Dewatering Solutions, Inc., a wholly-owned subsidiary of Xylem Inc. Specifications and illustrations are subject to revision without notice. Xylem makes no representation regarding the completeness or accuracy of this information and is not liable for any direct or indirect damages arising from or relating to this information or its use.
Specifications Control Options
Automatic | Manual
Specifications Delivery Connection
18 in. 125# ANSI B16.1
Specifications Maximum Capacity
16120 USGPM
Specifications Maximum Casing Pressure
155 psi
Specifications Maximum Impeller Diameter
24.0 in
Specifications Maximum Operating Speed
1200 rpm
Specifications Maximum Operating Temperature
176 ºF
Specifications Maximum Pressure
103 psi
Specifications Maximum Solids Handling
3.1 in
Specifications Maximum Suction Pressure
73 psi
Specifications Series
CD
Specifications Suction Connection
24 in. 125# ANSI B16.1
Specifications Suction Lift
28 ft
