Godwin GST Series 1.0 HP Trash Centrifugal Pump
Godwin GST Series 1.0 HP Trash Centrifugal Pump
SKU:GOD-1d939d
High-performance 1.0 HP Trash Centrifugal Pump with 75 USGPM flow rate, ideal for dewatering applications.
Regular price
$1,399.99
Regular price
Sale price
$1,399.99
Unit price
per
Initiate Order
Godwin GST Series 1.0 HP Trash Centrifugal Pump
$1,399.99
Quantity: 1
Claim Your Seller Account
Godwin GST Series 1.0 HP Trash Centrifugal Pump
$1,399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

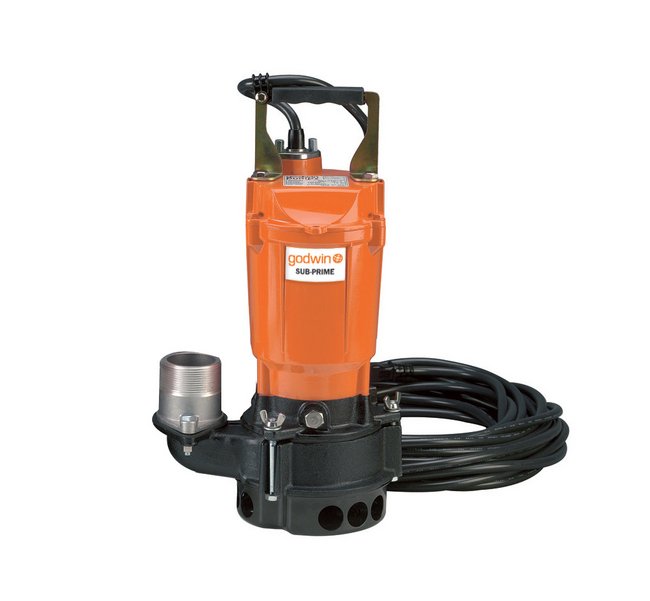

The Godwin GST Series 1.0 HP Trash Centrifugal Pump is a high-performance electric submersible pump designed for trash-laden applications. With a maximum flow rate of 75 USGPM and the ability to handle solids up to 1 inch in diameter, this pump is ideal for general dewatering applications. It features a durable construction, easy clean-out with a fully removable volute, and dry-running capability without damage. The motor has thermal overload protection and high-torque capacity, making it reliable and efficient for various pumping needs. Optional float switches are available for automatic activation. This pump exemplifies quality and performance meeting the highest industry standards.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Features And Benefits Features And Benefits
Solids handling up to 1 in. (25 mm) in diameterDry-running capability without damageNo control panel requiredPortable, lightweight, durableSide discharge designNon-wicking cable with strain reliefHigh-torque, capacitor-start motorMotor thermal overload protectionSilicon Carbide upper and lower mechanical sealTriple sealed - internal upper and lower mechanical seals and external lip sealSemi-vortex cast iron impellerCast iron volute, fully removable for easy clean-out
Float Switch Float Switch

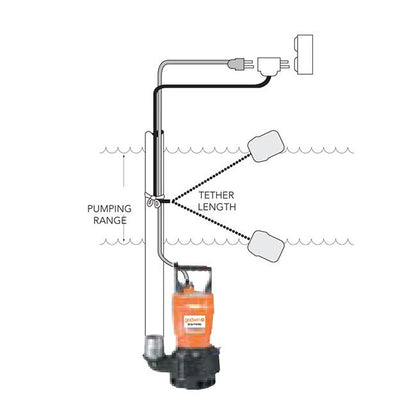

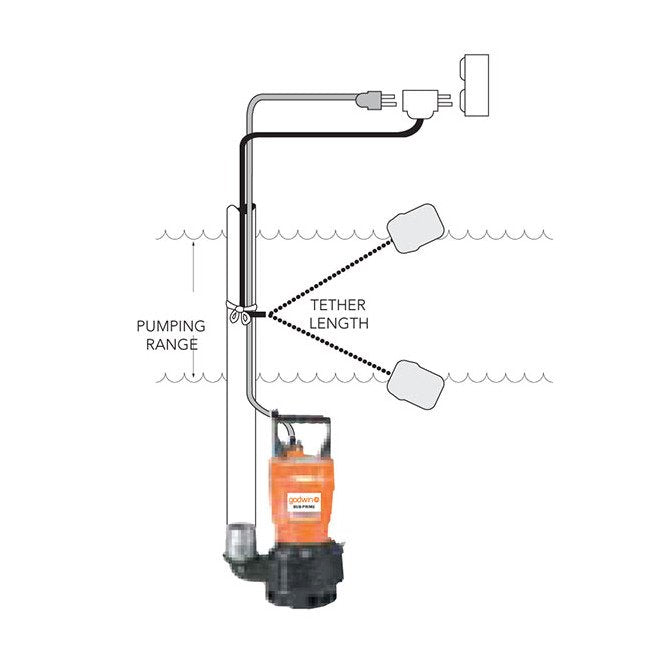

Optional Float Switches available for automatic, remote activation of Sub-Prime® pumps.Package consists of 30 ft / 50 ft (9 m / 15 m) power cord with piggyback power plug, variable length float tether, and sealed float.
Note Note
Specifications and illustrations are subject to revision without notice.
Specifications Cable Length
50 ft | 15 m
Specifications Concentration Range
6.5 to 8.0 pH
Specifications Current
5.1 A | 10.3 A
Specifications Discharge Diameter
2 in | 50 mm

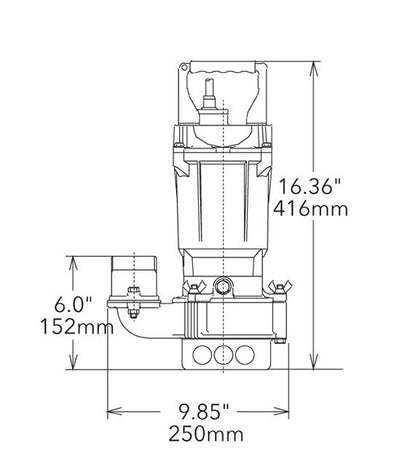

Specifications Height
16.36 in | 416 mm
Specifications Industry Standardscertifications
Canadian Standards Association (CSA) Certified
Specifications Maximum Flow
75 USGPM | 4.7 L/s
Specifications Maximum Fluid Temperature
90 ºF | 32 ºC
Specifications Maximum Head
48 ft | 14.6 m
Specifications Maximum Solids Handling
1 in | 25 mm
Specifications Maximum Submergence
16.5 ft | 5 in
Specifications Mid Height
6.0 in | 152 mm
Specifications Motor Power
1.0 hp | 0.75 kW
Specifications Number Of Phase
1
Specifications Pump Speed
3600 rpm
Specifications Pump Type
Trash
Specifications Voltage
115 V | 230 V
Specifications Weight
29 lb | 13 kg
Specifications Width
9.85 in | 250 mm
Warning Warning
Pumps are not designed for use in explosive atmosphere, flammable environments or for pumping volatile liquids.
