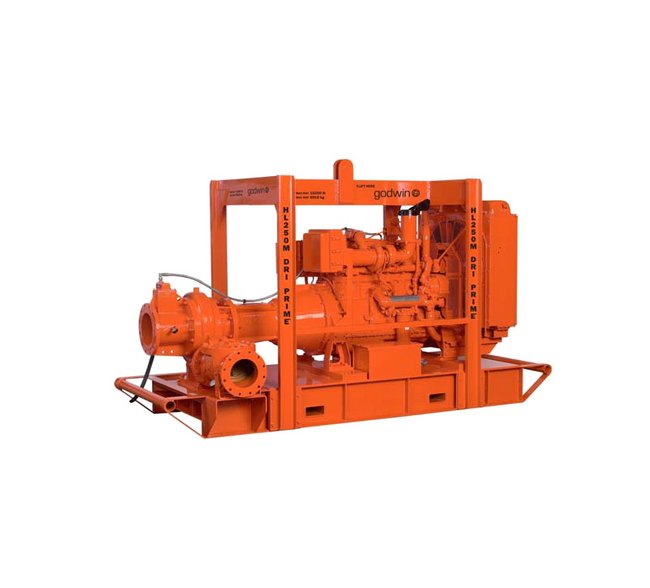

The Godwin HL Series 5390 GPM Dri-Prime® High Lift Centrifugal Pump is a top-of-the-line solution for high-capacity pumping needs. With a maximum capacity of 5390 USGPM and the ability to handle solids up to 2.6 inches, this pump delivers performance and reliability. Featuring automatic priming to 28 feet of suction lift, it offers seamless operation with options for automatic or manual control. Constructed with high-quality materials including cast iron and carbon steel, this pump ensures durability and longevity even under demanding conditions. The Godwin HL Series is compliant with industry standards and is suitable for a wide range of applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Materials Impeller
Cast Steel BS3100 A5 Hardness to 200 HB Brinell
Materials Mechanical Seal
Silicon Carbide Face; Viton Elastomers; Stainless Steel Body
Materials Non Return Valve Body
Cast Iron
Materials Pump Casing And Suction Cover
Cast Iron BS EN 1561:1997
Materials Pump Shaft
Carbon Steel BS 970:1991 817M40T
Materials Wearplates
Cast Iron Chrome 1.0/1.5 % Nickel 2 %
Note 0
All information is approximate and for general guidance only.© 2014 Xylem, Inc. All rights reserved. Godwin is a trademark of Xylem Dewatering Solutions, Inc., a wholly-owned subsidiary of Xylem Inc. Specifications and illustrations are subject to revision without notice. Xylem makes no representation regarding the completeness or accuracy of this information and is not liable for any direct or indirect damages arising from or relating to this information or its use.
Specifications Control Options
Automatic | Manual
Specifications Delivery Connection
10 in. 150# ANSI B16.5
Specifications Maximum Capacity
5390 USGPM
Specifications Maximum Casing Pressure
263 psi
Specifications Maximum Impeller Diameter
17.3 in
Specifications Maximum Operating Speed
2000 rpm
Specifications Maximum Operating Temperature
176 ºF
Specifications Maximum Solids Handling
2.6 in
Specifications Maximum Suction Pressure
87 psi
Specifications Maximum Working Pressure
175 psi
Specifications Series
HL
Specifications Suction Connection
12 in. 150# ANSI B16.5
Specifications Suction Lift
28 ft
