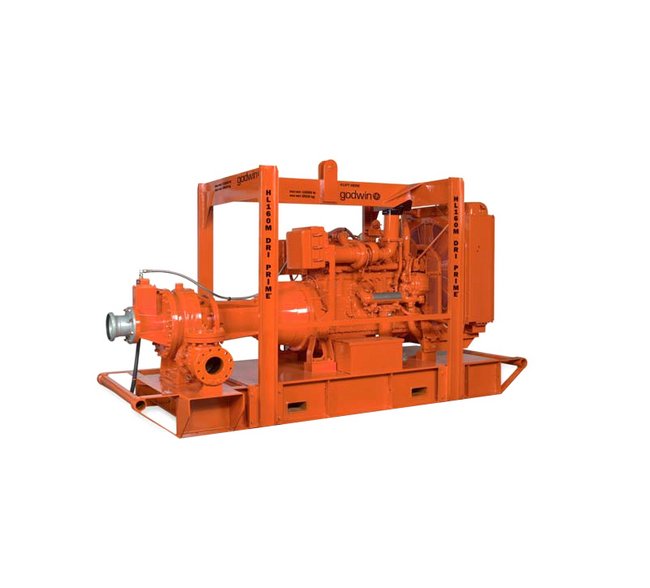

Godwin HL Series High Lift Centrifugal Pump
Godwin HL Series High Lift Centrifugal Pump
SKU:GOD-325cae
The Godwin HL Series Pump: 2140 GPM, 268 psi discharge pressure; automatic priming, durable materials. Ideal for high-demand applications.
Regular price
$8,999.99
Regular price
Sale price
$8,999.99
Unit price
per
Initiate Order
Godwin HL Series High Lift Centrifugal Pump
$8,999.99
Quantity: 1
Claim Your Seller Account
Godwin HL Series High Lift Centrifugal Pump
$8,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience unmatched pumping efficiency with the Godwin HL Series High Lift Centrifugal Pump. Boasting a maximum capacity of 2140 GPM and a discharge pressure up to 268 psi, this pump is a reliable solution for high-demand applications. Featuring automatic priming up to 28 ft of suction lift, along with options for automatic or manual control, this pump offers unparalleled versatility and performance. With durable materials like Cast Iron and Stainless Steel, this pump ensures longevity and reliability in demanding environments.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Materials Impeller
Cast Steel BS3100 A5 Hardness to 200 HB Brinell
Materials Mechanical Seal
Silicon Carbide Face; Viton Elastomers; Stainless Steel Body
Materials Non Return Valve Body
Cast Iron
Materials Pump Casing And Suction Cover
Cast Iron BS EN 1561:1997
Materials Pump Shaft
Carbon Steel BS 970:1991 817M40T
Materials Wearplates
High Chromium Cast Iron HC403:1977 Grade FR6252
Note 0
All information is approximate and for general guidance only.© 2014 Xylem, Inc. All rights reserved. Godwin is a trademark of Xylem Dewatering Solutions, Inc., a wholly-owned subsidiary of Xylem Inc. Specifications and illustrations are subject to revision without notice. Xylem makes no representation regarding the completeness or accuracy of this information and is not liable for any direct or indirect damages arising from or relating to this information or its use.
Specifications Control Options
Automatic | Manual
Specifications Delivery Connection
6 in. 300# ANSI B16.5
Specifications Maximum Capacity
2140 USGPM
Specifications Maximum Casing Pressure
402 psi
Specifications Maximum Impeller Diameter
20.0 in
Specifications Maximum Operating Speed
2000 rpm
Specifications Maximum Operating Temperature
176 ºF
Specifications Maximum Solids Handling
1.4 in
Specifications Maximum Suction Pressure
87 psi
Specifications Maximum Working Pressure
268 psi
Specifications Series
HL
Specifications Suction Connection
8 in. 150# ANSI B16.5
Specifications Suction Lift
28 ft
