Godwin HL Series High Lift Centrifugal Pump - 1500 GPM
Godwin HL Series High Lift Centrifugal Pump - 1500 GPM
SKU:GOD-a12a39
Powerful and reliable Godwin HL Series Centrifugal Pump - 1500 GPM, perfect for high-performance applications.
Regular price
$15,699.99
Regular price
Sale price
$15,699.99
Unit price
per
Initiate Order
Godwin HL Series High Lift Centrifugal Pump - 1500 GPM
$15,699.99
Quantity: 1
Claim Your Seller Account
Godwin HL Series High Lift Centrifugal Pump - 1500 GPM
$15,699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

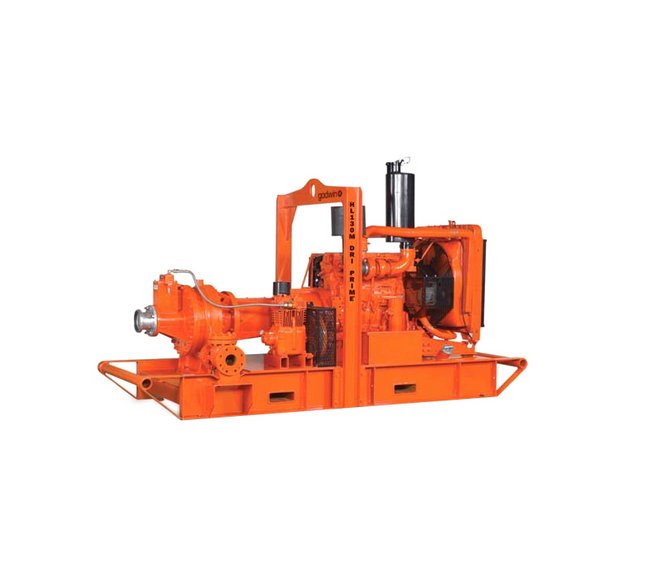

The Godwin HL Series 1500 GPM Dri-Prime® High Lift Centrifugal Pump is a powerhouse built for efficiency and reliability. With a maximum operating speed of 2100 rpm and the ability to handle up to 0.9-inch solids, this pump is designed for high-performance applications. The pump casing and suction cover are made of durable Cast Iron BS EN 1561:1997, ensuring longevity and robustness. Whether in automatic or manual mode, this pump offers versatility and ease of operation, meeting the demanding needs of both consumer and institutional buyers.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Materials Impeller
Cast Steel BS3100 A5 Hardness to 200 HB Brinell
Materials Mechanical Seal
Silicon Carbide Face; Viton Elastomers; Stainless Steel Body
Materials Non Return Valve Body
Steel
Materials Pump Casing And Suction Cover
Cast Iron BS EN 1561:1997
Materials Pump Shaft
Carbon Steel BS 970:1991 817M40T
Materials Wearplates
High Chromium Cast Iron HC403:1977 Grade FR6252
Note 0
All information is approximate and for general guidance only.© 2014 Xylem, Inc. All rights reserved. Godwin is a trademark of Xylem Dewatering Solutions, Inc., a wholly-owned subsidiary of Xylem Inc. Specifications and illustrations are subject to revision without notice. Xylem makes no representation regarding the completeness or accuracy of this information and is not liable for any direct or indirect damages arising from or relating to this information or its use.
Specifications Control Options
Automatic | Manual
Specifications Delivery Connection
4 in. 300# ANSI B16.5
Specifications Maximum Capacity
1500 USGPM
Specifications Maximum Casing Pressure
410 psi
Specifications Maximum Impeller Diameter
20.2 in
Specifications Maximum Operating Speed
2100 rpm
Specifications Maximum Operating Temperature
176 ºF
Specifications Maximum Solids Handling
0.9 in
Specifications Maximum Suction Pressure
87 psi
Specifications Maximum Working Pressure
273 psi
Specifications Series
HL
Specifications Suction Connection
6 in. 150# ANSI B16.5
Specifications Suction Lift
28 ft
