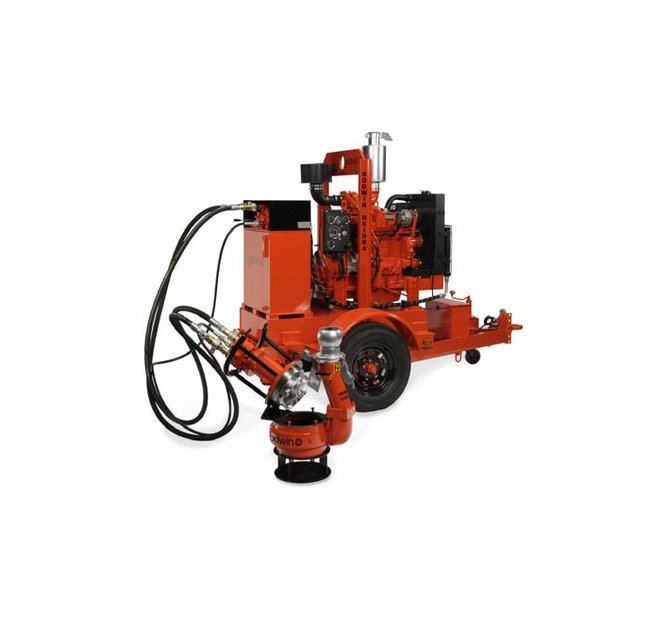

Godwin HS Series Hydraulic Submersible® Centrifugal Pump
Godwin HS Series Hydraulic Submersible® Centrifugal Pump
SKU:GOD-185ba4
Powerful Godwin HS Series Hydraulic Sub Pump for high-capacity pumping with patented self-cleaning technology. Ideal for industrial & government applications.
Regular price
$15,999.00
Regular price
Sale price
$15,999.00
Unit price
per
Initiate Order
Godwin HS Series Hydraulic Submersible® Centrifugal Pump
$15,999.00
Quantity: 1
Claim Your Seller Account
Godwin HS Series Hydraulic Submersible® Centrifugal Pump
$15,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Godwin HS Series Hydraulic Submersible® Centrifugal Pump is a compact yet powerful pump designed for demanding applications. With a maximum capacity of 996 USGPM and a maximum head of 137 ft, this pump features patented N-technology for self-cleaning efficiency, reducing fuel costs, and minimizing maintenance. It comes with a John Deere engine, delivering 72.4 hp @ 2400 rpm for reliable performance. Built to meet ISO 9001:2008 standards, this pump is ideal for industrial, government, and institutional use.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Hydraulic Hose Bleed Line
1/2 in. Hydraulic Quick Connect x 1/2 in. Hydraulic Quick Connect
Hydraulic Hose Feedreturn
1 in. Male Hydraulic Fitting x 1 in. Female Hydraulic Fitting with Wing nuts
Materials Impeller
Hard Iron
Materials Mechanical Seal
Silicon Carbide vs Silicon Carbide
Materials Pump Casing And Suction Cover
Cast Iron to BS1452 Grade 220
Materials Pump Shaft
Carbon Steel BS 970-3:1991 080M40
Materials Suction Strainer And Lifting Bracket
Fabrication Mild Steel Tube and Plate
Materials Wearplates
Rear - Cast Iron BS1452 Gr220Front - Hard Iron
Note 0
All information is approximate and for general guidance only.Godwin pumps, Dri-Prime® and the color orange for pumps are registered trademarks of Godwin Pumps of America Specifications and illustrations are subject to revision without notice. Xylem Dewatering Solutions is not liable for any incompleteness or inaccuracies. Xylem Dewatering Solutions is not liable for any consequential, incidental or indirect damages relating to these specifications or their use.
Power Pack Engine
John Deere 4045TF290 (72.4 hp @ 2400 rpm)
Power Pack Hydraulic Reservoir Capacity
40 gal
Power Pack Output Hydraulic Flow
32 USGPM
Specifications Delivery Connection Female National Pipe Thread N
6 in
Specifications Engine Speed
2400 rpm
Specifications Hydraulic Motor Power Pack Ghpu30
Gear Type
Specifications Hydraulic Pump Displacement Power Pack Ghpu30
3.6 in³
Specifications Hydraulic Pump Displacement Pump End
3.0 in³
Specifications Industry Standardscertifications
International Organization for Standardization (ISO) 9001:2008
Specifications Maximum Capacity
996 USGPM
Specifications Maximum Casing Pressure
46.4 psi
Specifications Maximum Head
137 ft
Specifications Maximum Hose Length For 2000 Revolutions Per Minu
131 ft
Specifications Maximum Hose Length For 2200 Revolutions Per Minu
115 ft
Specifications Maximum Hose Length For 2400 Revolutions Per Minu
98 ft
Specifications Maximum Hose Length For 2600 Revolutions Per Minu
66 ft
Specifications Maximum Impeller Diameter
10 in
Specifications Maximum Operating Speed
2200 rpm
Specifications Maximum Operating Temperature
176 ºF
Specifications Maximum Solids Handling
1.4 in
Specifications Maximum Suction Pressure
58 psi
Specifications Maximum Working Pressure
50.8 psi
Specifications Power Pack Height
77 in
Specifications Power Pack Length
119 in
Specifications Power Pack Width
66 in
Specifications Pump Height
32 in
Specifications Pump Length
21 in
Specifications Pump Width
16 in
Specifications Series
HS
Specifications Wet Weight Power Pack Ghpu30
3.349 lb
