Godwin Hydraulic Submersible Centrifugal Pump
Godwin Hydraulic Submersible Centrifugal Pump
SKU:GOD-26b0a8
Powerful hydraulic submersible pump with superior performance for dewatering and solids handling applications.
Regular price
$7,999.99
Regular price
Sale price
$7,999.99
Unit price
per
Initiate Order
Godwin Hydraulic Submersible Centrifugal Pump
$7,999.99
Quantity: 1
Claim Your Seller Account
Godwin Hydraulic Submersible Centrifugal Pump
$7,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

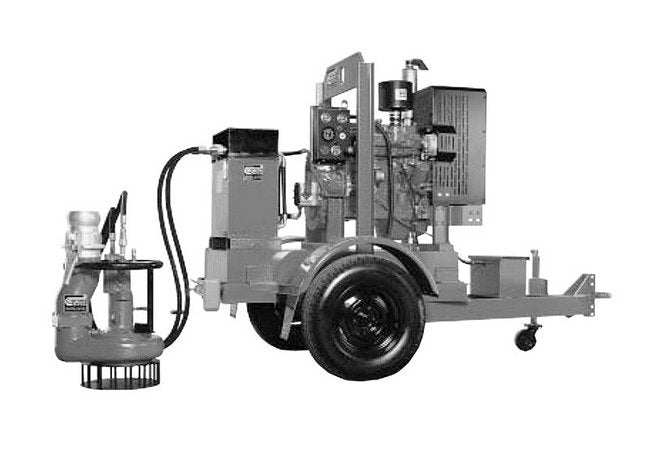

The Godwin Hydraulic Submersible Centrifugal Pump offers unmatched performance and operating efficiencies powered by a variable-speed diesel engine. This rugged pump can handle flow rates up to 1900 gpm and can pass solids up to 3 inches in diameter. With features like dry running capabilities, a cast chromium steel impeller, and a self-contained design, this pump is ideal for dewatering and solids-handling applications in various settings.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Materials Impeller
Cast Steel
Materials Mechanical Seal
Double Mechanical Seal in Oil BathInboard: Silicone CarbideOutboard: Carbon on Ceramic
Materials Pump Casing And Suction Cover
Cast Iron
Materials Pump Shaft
Medium Carbon Steel
Materials Wearplates
Rear - Mild SteelFront - Cast Iron
Note 0
Heidra® and the color orange for pumps are registered trademarks of Godwin Pumps of America, Inc. Specifications and illustrations are subject to revision without notice. © Copyright 2003 Godwin Pumps of America, Inc. All rights reserved.
Power Pack Control Valve
Via Variable Speed Engine
Power Pack Engine
Caterpillar 3054NA 74 hp (55 kw) @ 2200 rpm | John Deere 4045D 72 hp (53 kw) @ 2400 rpm
Power Pack Hydraulic Pipe Connections
1 in. (25 mm) Wing nut Quick-Disconnect Fittings
Power Pack Hydraulic Reservoir Capacity
40 gal | 151 L
Power Pack Hydraulic System
Two Pipe, Open Circuit
Power Pack Output Pressure Control
3500 psi | 241 bar
Power Pack Return Line Filter
20 µ
Specifications Bearing And Seal Housing
Cast Iron
Specifications Discharge Female National Pipe Thread Npt F
6 in | 150 mm
Specifications Flow
32 gal | 121 L
Specifications Lifting Bracket
Fabricated Mild Steel Tube and Plate
Specifications Output Flow
32 USGPM | 121 L
Specifications Power Pack Pump Weight
2996 lb | 1359 kg
Specifications Series
HS
Specifications Suction Filter Pleated Gauze
125 µ
Specifications Weight
355 lb | 161 kg
Submersible Pump Drive Pressure
3500 psi | 241 bar
Submersible Pump Hydraulic Connections Port Type
Quick-Disconnect
Submersible Pump Hydraulic Motor
Gear Type
Submersible Pump Impeller Diameter
11 in | 279 mm
Submersible Pump Pump Speed
0 to 2200 rpm
Submersible Pump Solids Handling Diameter
0 to 3 in | 0 to 75 mm
Submersible Pump Strainer
M.S. Fabrication Nylon Coated with 2.75 in. (70 mm) Square Apertures
