Godwin Hydraulic Submersible Centrifugal Pump HS200SG
Godwin Hydraulic Submersible Centrifugal Pump HS200SG
SKU:GOD-bf217e
Versatile Godwin HS200SG Hydraulic Submersible Pump for pumping large solids and viscous slurries efficiently. Ideal for WWTP, environmental clean-ups, and refineries.
Regular price
$12,999.99
Regular price
Sale price
$12,999.99
Unit price
per
Initiate Order
Godwin Hydraulic Submersible Centrifugal Pump HS200SG
$12,999.99
Quantity: 1
Claim Your Seller Account
Godwin Hydraulic Submersible Centrifugal Pump HS200SG
$12,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

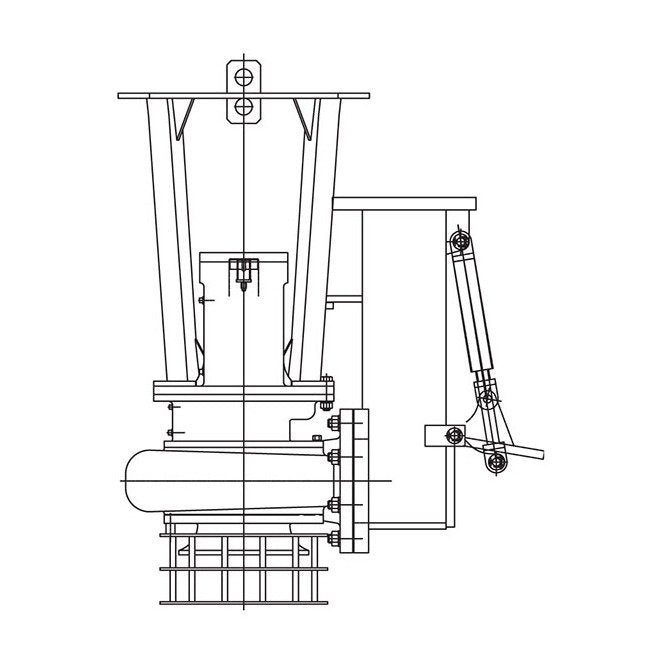

The Godwin HS200SG Hydraulic Submersible Pump is a robust 8" (200 mm) pump designed for efficiently handling large solids up to 3-1/8" (79 mm), viscous slurries, and stringy materials. With a remote-operated slurry gate, it can function as a mixer, making it perfect for applications requiring pumping of solids-laden sludges in WWTP digesters, environmental remediation, and refinery API separators. Featuring a durable cast iron pump body, chromium steel impeller, and medium carbon steel pump shaft, it ensures reliable performance in demanding conditions. Suitable for open center hydraulic systems, this pump offers a standard input flow of 0 to 57 USGPM and a maximum operating pressure of 4000 psi.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Materials Impeller
Cast Chromium Steel
Materials Pump Shaft
Medium Carbon Steel
Materials Wearplates
Cast Iron
Note 0
Heidra® is a registered trademark of Godwin Pumps of America, Inc..Specifications and illustrations are subject to revision without notice. © Copyright 2005 Godwin Pumps of America, Inc. All rights reserved.
Specifications Discharge Female National Pipe Thread Npt F
8 in | 200 mm
Specifications Height
51.1 in | 940 mm
Specifications Hose Ports
1-1/4 in | 32 mm
Specifications Hydraulic Oil 100 Degree Fahrenheit 32 Degree Cel
214 to 320
Specifications Inlet
8 in. (200 mm) 125#
Specifications Maximum Operating Pressure
4000 psi | 276 bar
Specifications Power Source
Any Open Center Hydraulic System
Specifications Pump Body
Cast Iron
Specifications Series
HS
Specifications Standard Input Flow
0 to 57 USGPM | 3.6 L/s
Specifications Weight
830 lb | 377.3 kg
Specifications Width
42.6 x 28.4 in | 1082 x 722 mm
Submersible Pump Solids Handling Diameter
0 to 3-1/8 in | 0 to 79 mm
