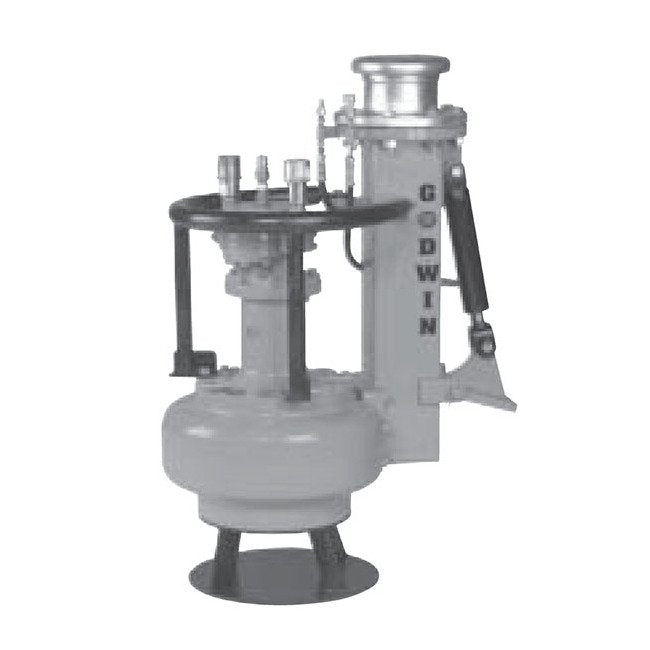

Godwin Hydraulic Submersible Pump - Heidra® 150VSG
Godwin Hydraulic Submersible Pump - Heidra® 150VSG
SKU:GOD-24e66a
Versatile Godwin Hydraulic Submersible Pump with efficient slurry mixing, perfect for thick sludges - ideal for industrial use.
Regular price
$7,499.00
Regular price
Sale price
$7,499.00
Unit price
per
Initiate Order
Godwin Hydraulic Submersible Pump - Heidra® 150VSG
$7,499.00
Quantity: 1
Claim Your Seller Account
Godwin Hydraulic Submersible Pump - Heidra® 150VSG
$7,499.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Godwin HS Series Heidra® 150VSG Hydraulic Submersible Pump is a versatile solution for pumping large solids up to 5", stringy materials, and slurries with ease. With a durable cast iron pump body, it can handle thick, viscous, solids-laden sludges commonly found in various industrial applications. The remotely-operated slurry gate allows for efficient mixing, making it ideal for use in WWTP digesters, environmental clean-ups, and refineries' API separators. Designed for reliability and performance, this pump is a trusted choice for demanding pumping tasks.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Materials Impeller
Cast Chromium Steel
Materials Pump Shaft
Medium Carbon Steel
Materials Wearplates
Cast Iron
Note 0
Heidra® is a registered trademark of Godwin Pumps of America, Inc..Specifications and illustrations are subject to revision without notice. © Copyright 2005 Godwin Pumps of America, Inc. All rights reserved.
Specifications Discharge Female National Pipe Thread Npt F
6 in | 150 mm
Specifications Height
37 in | 940 mm
Specifications Hose Ports Society Of Automobile Engineers Sae St
1 in | 25 mm
Specifications Hydraulic Oil 100 Degree Fahrenheit 32 Degree Cel
214 to 320
Specifications Inlet
6 in. (150 mm) 125#
Specifications Maximum Operating Pressure
3500 psi | 241 bar
Specifications Power Source
Any Open Center Hydraulic System
Specifications Pump Body
Cast Iron
Specifications Series
HS
Specifications Standard Input Flow
15 to 30 USGPM | 0.95 to 1.9 L/s
Specifications Weight
460 lb | 209.1 kg
Specifications Width
32 x 19 in | 813 x 483 mm
Submersible Pump Solids Handling Diameter
0 to 5 in | 0 to 125 mm
