Godwin WT Series Dri-Prime Water Transfer Clean Water Centrifugal Pumps
Godwin WT Series Dri-Prime Water Transfer Clean Water Centrifugal Pumps
SKU:GOD-6093b3
Efficient and reliable Godwin WT Series Dri-Prime Water Transfer Centrifugal Pumps for clean water transfer with up to 4950 USGPM capacity and 110 psi discharge pressure.
Regular price
$9,800.00
Regular price
Sale price
$9,800.00
Unit price
per
Initiate Order
Godwin WT Series Dri-Prime Water Transfer Clean Water Centrifugal Pumps
$9,800.00
Quantity: 1
Claim Your Seller Account
Godwin WT Series Dri-Prime Water Transfer Clean Water Centrifugal Pumps
$9,800.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

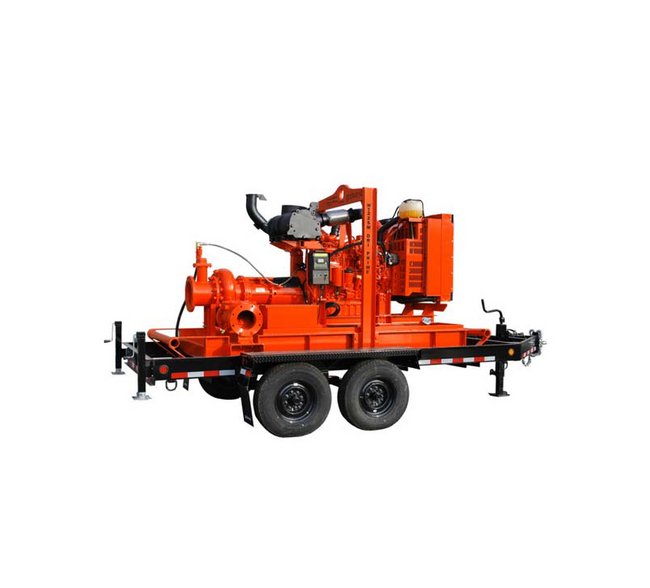

The Godwin WT Series Dri-Prime Water Transfer Clean Water Centrifugal Pumps, exemplified by the WT225M model, are designed for efficiency and reliability. With a maximum capacity of 4950 USGPM and discharge pressure up to 110 psi, these pumps are equipped to handle clean water transfer seamlessly. The automatic priming capability to 28 ft of suction lift enhances operational ease. Constructed from high-quality materials like Cast Iron ASTM A48 CL20 and Nickel Chrome Steel, these pumps ensure durability and performance. The integrated control panel allows for convenient automatic or manual operation, making them ideal for various applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Materials Impeller
Sil-Brass ASTM B584, Modified C87500-Lead Free
Materials Mechanical Seal
Silicon Carbide Face; Viton Elastomers; Stainless Steel Body
Materials Non Return Valve Body
Ductile Iron A536 Grade 65-45-12
Materials Pump Casing
Cast Iron ASTM A48 CL20
Materials Pump Shaft
Nickel Chrome Steel to BS970 Grade 817M40T
Materials Suction Pipe
Carbon Steel A53-B ERW and A105
Materials Wear Rings
Bismuth Bronze-Lead Free
Note 0
All information is approximate and for general guidance only.Specifications and illustrations are subject to revision without notice. Xylem makes no representation regarding the completeness or accuracy of this information and is not liable for any direct or indirect damages arising from or relating to this information or its use.
Specifications Delivery Connection
8 in. 150# ANSI B16.5
Specifications Maximum Capacity
4950 USGPM
Specifications Maximum Casing Pressure
165 psi
Specifications Maximum Impeller Diameter
13.0 in
Specifications Maximum Operating Speed
2200 rpm
Specifications Maximum Operating Temperature
176 ºF
Specifications Maximum Solids Handling
0.9 in
Specifications Maximum Suction Pressure
87 psi
Specifications Maximum Working Pressure
110 psi
Specifications Series
WT
Specifications Suction Connection
10 in. 150# ANSI B16.5
Specifications Suction Lift
28 ft
