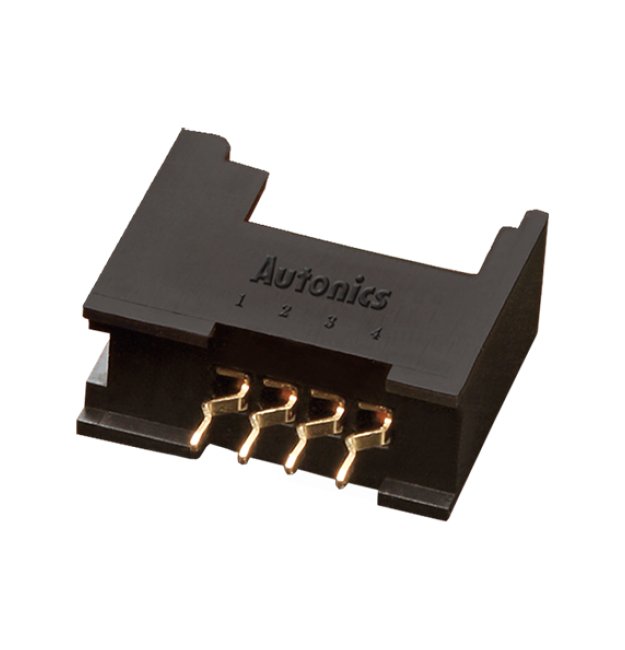

Gold-Plated 4-Pin Board Mount Sensor Connector
Gold-Plated 4-Pin Board Mount Sensor Connector
SKU:PRO-eac0c9
Enhance connectivity with our Gold-Plated 4-Pin Sensor Connector for secure board mounting. Ideal for diverse voltage needs.
Regular price
$1.60
Regular price
Sale price
$1.60
Unit price
per
Initiate Order
Gold-Plated 4-Pin Board Mount Sensor Connector
$1.60
Quantity: 1
Claim Your Seller Account
Gold-Plated 4-Pin Board Mount Sensor Connector
$1.60
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your connectivity solutions with our Gold-Plated 4-Pin Board Mount Sensor Connector. Designed for maximum alternating current/direct current voltage of ~250V, this connector features C5210 gold terminal material, polycarbonate/ABS body, and a 1-line configuration. With a maximum rated current of 3.0A, sturdy construction, and precise specifications, it ensures reliable performance in demanding applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Body Material
Polycarbonate/Acrylonitrile Butadiene Styrene (ABS) (UL94V-0)
Specifications Connector Type
Board Mount Socket
Specifications List Price
1.60 USD
Specifications Maximum Alternating Current Acdirect Current Dc V
~250 V
Specifications Maximum Insertion Per Pin
1.96 N | 200 gf
Specifications Maximum Rated Current
3.0 A
Specifications Minimum Extraction Per Pin
0.49 N | 50 gf
Specifications Minimum Terminal Retention
1.4 kgf
Specifications Number Of Lines
1
Specifications Number Of Pins
4
Specifications Printed Circuit Board Pcb
Fender Plated-Through Hole
Specifications Printed Circuit Board Pcb Hole Diameter
1 mm
Specifications Printed Circuit Board Pcb Thickness
1.0 to 2.2 mm
Specifications Terminal Material
C5210 (Gold 0.2 μm)
Specifications Type
Sensor Connector
Specifications Weight
0.56 lb
