Gold-Plated SMA Female Bulkhead Receptacle
Gold-Plated SMA Female Bulkhead Receptacle
SKU:SMA-0a6d53
Enhance connections with our Gold-Plated SMA Female Bulkhead Receptacle for reliable performance in industrial and government applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Gold-Plated SMA Female Bulkhead Receptacle
$29.99
Quantity: 1
Claim Your Seller Account
Gold-Plated SMA Female Bulkhead Receptacle
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

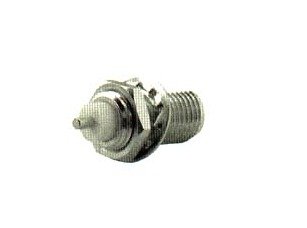

Upgrade your connections with our Gold-Plated SMA Female Bulkhead Receptacle, designed for precision and durability. This receptacle features a cable dielectric dia. of .066/.117 inches, 50-ohm impedance, and a broad frequency range of DC to 18 GHz. With SMA connector series and gold plating, it ensures robust performance. The bulkhead configuration and mounting hole (ML 98) simplify installations, making it ideal for industrial and government applications where reliability is paramount.
Product Specifications
Specifications Cable Dielectic Dia Inches
.066/.117
Specifications Configuration
bulkhead receptacle
Specifications Connection
female
Specifications Connector Series
SMA
Specifications Frequency Range Ghz
DC - 18
Specifications Impedence Ohms
50
Specifications Mounting Hole
ML 98
Specifications Packaging
single
Specifications Plating Body
gold
