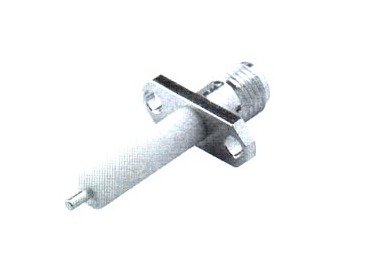

Gold-plated SMA Female Panel Mount Receptacles

Name: Gold-plated SMA Female Panel Mount Receptacles
Brand: C. W. Swift & Associates, Inc.
SKU: SMA-69f676
Price: 24.99 USD
Availability: OutOfStock

SKU:SMA-69f676

Enhance connectivity with our SMA Female Panel Mount Receptacles - gold-plated, 50 ohms impedance, DC-18 GHz frequency range.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Upgrade your connectivity with our SMA Female Panel Mount Receptacles. Designed for precision, these receptacles feature gold-plating for enhanced conductivity, impedance of 50 ohms, and a broad frequency range from DC to 18 GHz. The extended dielectric and secure panel mount configuration ensure reliable connections. Perfect for institutional and government applications requiring high-quality SMA connectors.

Product Specifications

Specifications Cable Dielectic Dia Inches

.066/.117

Specifications Configuration

panel mount receptacle

Specifications Connection

female

Specifications Connector Series

SMA

Specifications Frequency Range Ghz

DC - 18

Specifications Impedence Ohms

Specifications Notes

extended dielectic

Specifications Packaging

single

Specifications Plating Body

gold
