Gorbel AJ200 Series Articulating Jib Crane
Gorbel AJ200 Series Articulating Jib Crane
SKU:AJ2-f5b098
High-capacity Gorbel AJ200 Series Articulating Jib Crane for precise load positioning in tight spaces. 2000 lb capacity, 200° rotation angle.
Regular price
$5,899.99
Regular price
Sale price
$5,899.99
Unit price
per
Initiate Order
Gorbel AJ200 Series Articulating Jib Crane
$5,899.99
Quantity: 1
Claim Your Seller Account
Gorbel AJ200 Series Articulating Jib Crane
$5,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Gorbel AJ200 Series Wall/Column Mounted Articulating Jib Cranes are designed for applications requiring precise load positioning and easy movement in tight spaces. With a capacity of 2000 lb and a rotation angle of 200°, these cranes offer superior load handling capabilities. The articulating arm ensures easy movement throughout the coverage area, making it perfect for reaching under obstructions or around obstacles. Gorbel's jib cranes are known for their wide variety of spans and capacities, providing a reliable solution for institutional and government buyers alike.
Product Specifications
Additional Information 0
Ideal for reaching in, around and underGorbel® Articulating Jib Cranes can position loads in places you cannot reach with traditional jibs. They provide easy rotation and consistent responsiveness when positioning loads throughout the craneâs coverage area. Gorbel® Wall/Column Mounted Articulating Jibs can handle up to 200º rotation for the primary boom and up to 360º for the secondary boom. Gorbelâs Free Standing and Ceiling Mounted Articulating Jibs can rotate up to 360º on the primary and secondary booms.
General Information 0

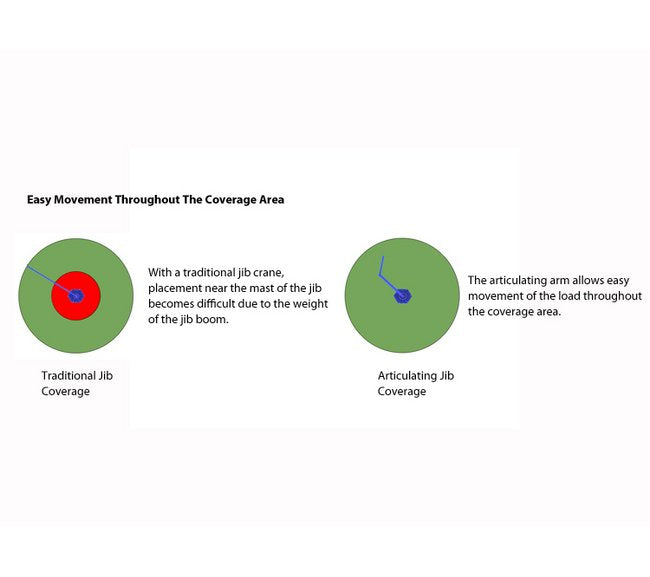

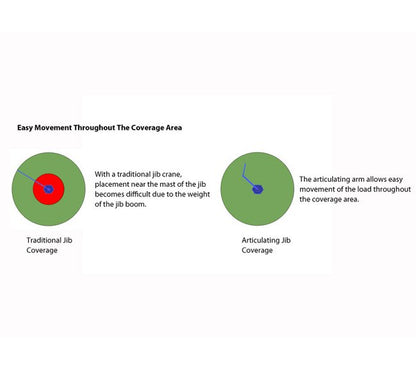

Easy Movement Throughout The Coverage AreaWith a traditional jib crane, placement near the mast of the jib becomes difficult due to the weight of the jib boom.The articulating arm allows easy movement of the load throughout the coverage area.
Gorbels Advantage 0
Easy MovementTraditional jib cranes can be difficult to rotate when the load is on the inner half of the boom. The articulating jibs are easier to rotate in close to the free standing mast or building column.Precise Load PositioningGorbel® Articulating Jib Cranes are A Class Above⢠when it comes to positioning and spotting loads around an obstruction, through an open doorway, or rotating in close to the free standing mast or building column.Wide Variety of Spans and CapacitiesGorbel® Articulating Jib Cranes are available as standard products in capacities up to 2000 lb. and spans up to 16' without the extra lead time and costs associated with customization.
Note 0
Additional Sizes and Capacities Readily AvailableOther spans and capacities are available by contacting your local Gorbel® dealer.Base Price Includes: jib boom, jib arm, friction brakes, and clevis assembly for hook mounted lifting devices (lifting device by others). AJ200 price includes mounting brackets (hardware by others). Festooning is optional.Dimensions are for reference only and are subject to change without notice.
Specifications Capacity
2000 lb
Specifications Dimension B
60 in
Specifications Dimension H
26-7/8 in
Specifications Dimension K
42 in
Specifications Dimension P
2-5/8 in
Specifications Dimension T
5-7/16 in
Specifications Fitting Type
B2
Specifications Mounting Style
Wall Mounted Style
Specifications Rotation Angle
200 º
Specifications Span A
10 ft
Specifications Thrust Pull
6130 lb
Specifications Weight
779 lb
