Gorbel AJ360-C Articulating Jib Crane
Gorbel AJ360-C Articulating Jib Crane
SKU:AJ3-2a2a37
Versatile Gorbel AJ360-C Articulating Jib Crane for efficient and precise material handling in industrial settings.
Regular price
$3,999.99
Regular price
Sale price
$3,999.99
Unit price
per
Initiate Order
Gorbel AJ360-C Articulating Jib Crane
$3,999.99
Quantity: 1
Claim Your Seller Account
Gorbel AJ360-C Articulating Jib Crane
$3,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Gorbel AJ360-C Series Ceiling Mounted Articulating Jib Crane is a versatile lifting solution for industrial environments. With a 2000 lb capacity and a 16 ft span, this crane provides easy movement and precise load positioning, even in tight spaces. The articulating design allows for 360º rotation, ideal for reaching in, around, and under obstacles. Gorbel's jib cranes are known for their wide variety of spans and capacities, making them a top choice for institutions seeking efficient material handling solutions.
Product Specifications
Additional Information 0
Ideal for reaching in, around and underGorbel® Articulating Jib Cranes can position loads in places you cannot reach with traditional jibs. They provide easy rotation and consistent responsiveness when positioning loads throughout the craneâs coverage area. Gorbel® Wall/Column Mounted Articulating Jibs can handle up to 200º rotation for the primary boom and up to 360º for the secondary boom. Gorbelâs Free Standing and Ceiling Mounted Articulating Jibs can rotate up to 360º on the primary and secondary booms.
General Information 0
Easy Movement Throughout The Coverage AreaWith a traditional jib crane, placement near the mast of the jib becomes difficult due to the weight of the jib boom.The articulating arm allows easy movement of the load throughout the coverage area.
Gorbels Advantage 0
Easy MovementTraditional jib cranes can be difficult to rotate when the load is on the inner half of the boom. The articulating jibs are easier to rotate in close to the free standing mast or building column.Precise Load PositioningGorbel® Articulating Jib Cranes are A Class Above⢠when it comes to positioning and spotting loads around an obstruction, through an open doorway, or rotating in close to the free standing mast or building column.Wide Variety of Spans and CapacitiesGorbel® Articulating Jib Cranes are available as standard products in capacities up to 2000 lb. and spans up to 16' without the extra lead time and costs associated with customization.
Note 0
Additional Sizes and Capacities Readily AvailableOther spans and capacities are available by contacting your local Gorbel® dealer.Base Price Includes: jib boom, jib arm, friction brakes, and clevis assembly for hook mounted lifting devices (lifting device by others). AJ360-C price includes the assembly for ceiling mounting (anchor bolts by others). Festooning is optional.Dimensions are for reference only and are subject to change without notice.
Specifications Anchor Bolt Load
12610 lb
Specifications Bolt Circle
13 in | 15-1/2 in
Specifications Bolt Quantity
8
Specifications Capacity
2000 lb
Specifications Diameter
1 in | 1-1/4 in

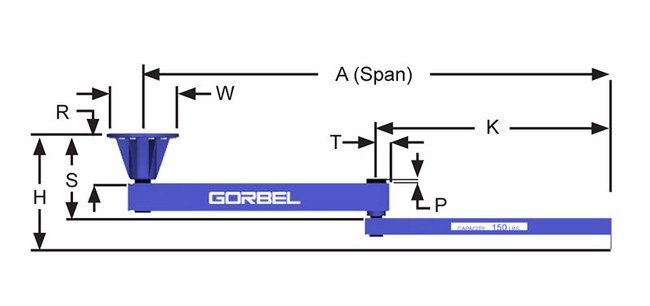

Specifications Dimension H
42-3/4 in
Specifications Dimension K
84 in
Specifications Dimension P
2-3/8 in
Specifications Dimension R
15-3/4 in
Specifications Dimension S
31-1/4 in
Specifications Dimension T
6-5/16 in
Specifications Dimension W
20 in
Specifications Mounting Plate Thickness For 500 Lb
10 ft
Specifications Mounting Style
Ceiling Mounted Style
Specifications Otm
51.73 kip.ft
Specifications Rotation Angle
360 º
Specifications Span
1-1/2 in
Specifications Span A
16 ft
Specifications Weight
1620 lb
