Gorbel FS300 Series 2-5 Ton Free Standing Jib Cranes
Gorbel FS300 Series 2-5 Ton Free Standing Jib Cranes
SKU:2TO-52eaa4
Maximize productivity and safety with Gorbel's FS300 Series Free Standing Jib Cranes. Effortless load positioning and robust construction for heavy-duty applications.
Regular price
$5,999.99
Regular price
Sale price
$5,999.99
Unit price
per
Initiate Order
Gorbel FS300 Series 2-5 Ton Free Standing Jib Cranes
$5,999.99
Quantity: 1
Claim Your Seller Account
Gorbel FS300 Series 2-5 Ton Free Standing Jib Cranes
$5,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance productivity with the Gorbel FS300 Series 2 to 5 Ton Capacity Free Standing Jib Cranes. Ideal for heavy-duty applications, these cranes offer 360° rotation, precise load positioning, and easy installation. With features like tapered roller bearings, triangular base plate gussets, and a boxed style head for stability, these cranes ensure efficient and safe operation. Designed for performance and safety, Gorbel jib cranes are pre-engineered for powered hoists and comply with industry standards for reliability and durability.
Product Specifications
Additional Information 0

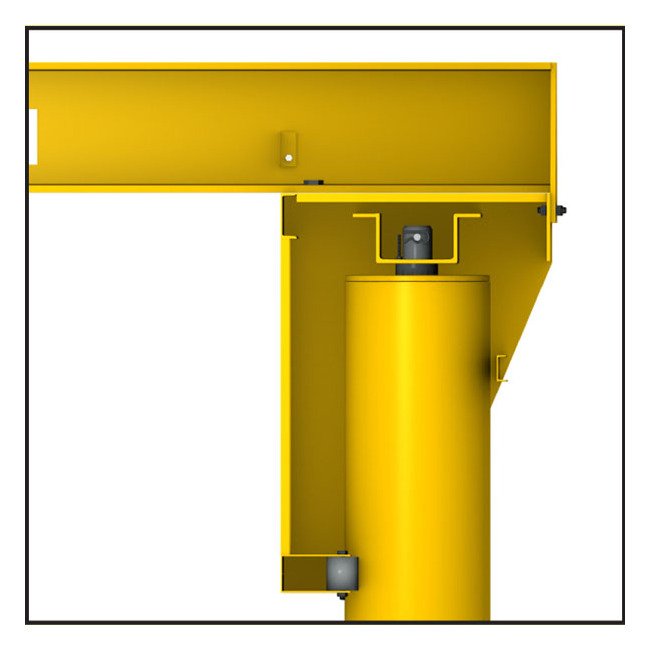

Designed for PerformanceGorbel's boxed style head provides benefits from installation through operation of the jib crane.The design allows for installation of the head prior to the boom, which reduces the required installation clearances and allows maximum hoist lift.The boxed style head also increases stability versus common sleeve-over-pipe designs. The result is less deflection and bouncing of the load, which creates a safer application with reduced risk of product damage.
Gorbels Advantage 0
Ease of OperationAllows operators to position loads precisely, effortlessly and efficientlyPrecision tapered roller bearings in top pivot and trunnion assemblies provide smooth operation and long lifeFull supporting triangular base plate gussets are used (in lieu of struts) to minimize crane deflection, thus making it easier to accurately position loadsEase of InstallationIndependent head assembly, installed separately from the boom for easier installationRecessed bearing assembly allows greatly reduced clearances needed for installationBolted head/boom connection which permits separate installation and provides maximum lift for the hoist, since it can be installed very close to the underside of the lower ceiling obstruction for greater headroomMovable bolted trolley stopsIn-head totally enclosed, bottom entry collector assembly allows the option of easily adding power to the hoist for 360º rotation at the time of or after purchaseSafetyHead retaining pin provides resistance to accidental upward dislodgement of the headFull Rated CapacityPre-engineered for use with powered hoists. A factor of 15% of the jib crane capacity is allowed for the hoist and trolley weight with an additional 25% of the capacity allowed for impact, thus giving full rated capacity use of the jib
Note 0

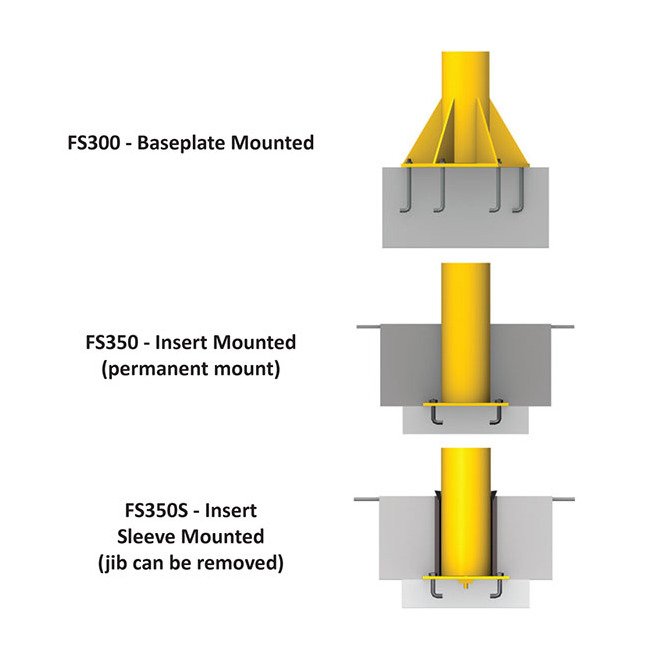

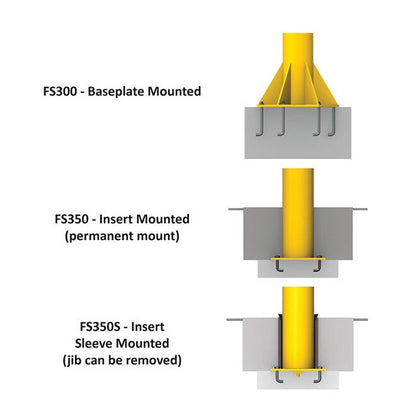

Power rotation is an available option.30 ft Span Jibs Available.Other Models, Sizes and Capacities Readily AvailableFS350 (insert mounted), FS350S (sleeve insert mounted), and other spans, heights, and capacities are available by contacting your local Gorbel® dealer.Dimensions are subject to change without notice.

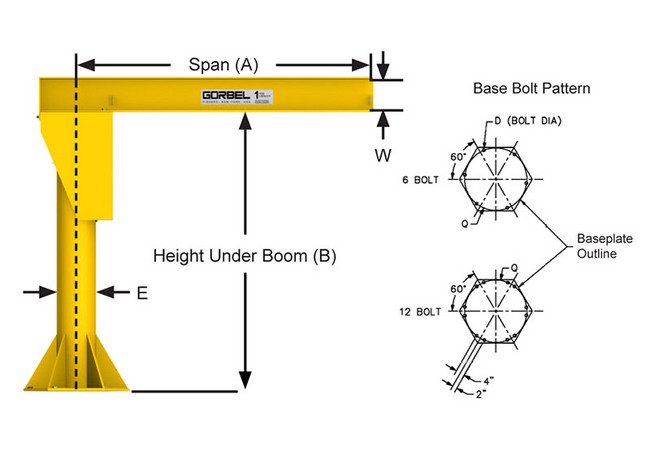

Specifications Capacity
5 ton
Specifications Height Under Boom Hub B
18 ft
Specifications Mounting Style
Free Standing Style
Specifications Rotation Angle
360 º
Specifications Span A
16 ft
