Gorbel MT400 Performance Jib Crane
Gorbel MT400 Performance Jib Crane
SKU:14T-f93daf
Maximize efficiency and safety with Gorbel MT400 Performance Jib Crane's 1-ton capacity and 360° rotation. Choose between Full Cantilever or Drop Cantilever designs for tailored lifting solutions.
Regular price
$5,999.00
Regular price
Sale price
$5,999.00
Unit price
per
Initiate Order
Gorbel MT400 Performance Jib Crane
$5,999.00
Quantity: 1
Claim Your Seller Account
Gorbel MT400 Performance Jib Crane
$5,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

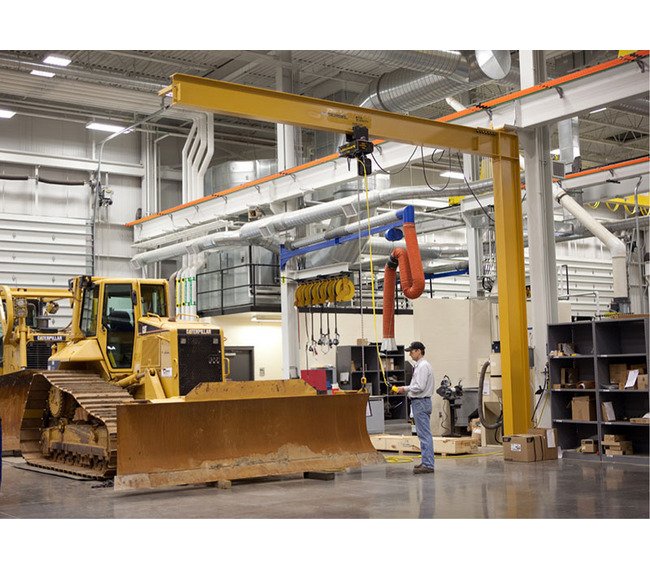

The Gorbel MT400 Performance Jib Crane offers a versatile lifting solution with a 1-ton capacity and 360° rotation. Designed with Gorbel's economical and safety advantages, this full cantilever style crane exerts minimal force on structures while maximizing productivity. With pre-engineered features for powered hoist compatibility and maximum trolley travel, it optimizes working areas effectively. Choose between the MT400 Full Cantilever for maximum lift or the MT450 Drop Cantilever for overhead clearance. Enhance efficiency and safety in your operations with the reliable Gorbel MT400 Performance Jib Crane.
Product Specifications
Additional Information 0

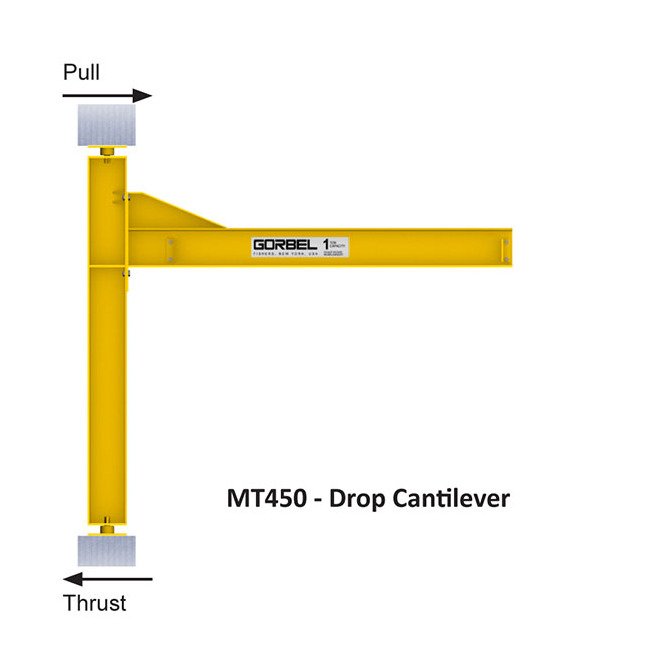

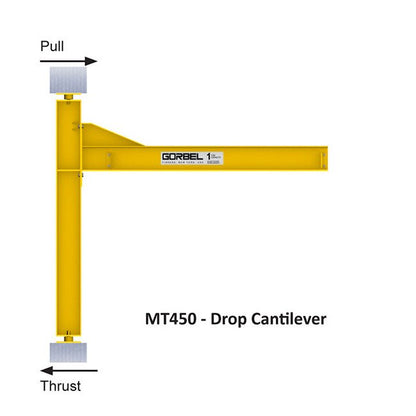

Available in Two StylesMT400 FULL Cantilever - provides for maximum amount of lift where full use of available headroom is desiredMT450 DROP Cantilever - jib boom can be placed at a specific height to clear overhead obstructions
Gorbels Advantage 0
EconomicalSimple, efficient design that usually requires no special foundation makes the Mast Type Cranes the most cost effective of the 360º rotation jib stylesExerts Less Force On Building StructureExerts the least amount of force of any Gorbel® jib on its supporting structureSafetyUtilizes a self-aligning radial bushing at the top which cannot be displaced, and an identical self-aligning radial bushing at the bottom which, when used in combination with an oil-impregnated bronze thrust washer, provides ease of movementFull Rated CapacityPre-engineered for use with powered hoists. A factor of 15% of the jib crane capacity is allowed for the hoist and trolley weight with an additional 25% of the capacity allowed for impact, thus giving full rated capacity use of the jibProductiveAllows full utilization of the working area with 360º rotationMaximum Trolley TravelMast/beam connections eliminate the need for tie rods or knee braces found on competitive designs, thus permitting maximum trolley travel
Note 0

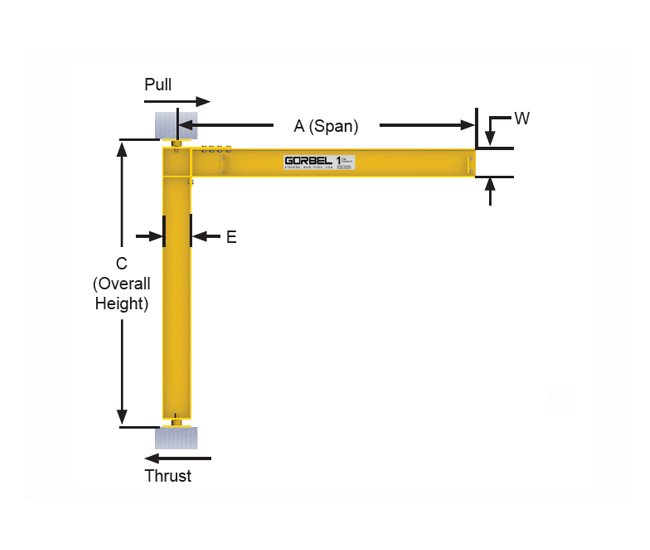

Power rotation is an available option.The diagram above details the thrust and pull forces that the jib crane applies to the supporting structure when a load is lifted. It is essential that a structurally adequate wall or column exists to support the jib crane. Contact your local Gorbel® dealer for specific thrust and pull forces.Other Models, Sizes and Capacities Readily AvailableMT450 (drop cantilever), and other spans, heights, and capacities are available by contacting your local Gorbel® dealer.Dimensions are subject to change without notice.
Specifications Capacity
1 ton
Specifications Mounting Style
Full Cantilever Style
Specifications Overall Height C
12 ft
Specifications Rotation Angle
360 º
Specifications Span A
8 ft
