Gorbel WB100 Performance Jib Crane
Gorbel WB100 Performance Jib Crane
SKU:WB1-05f966
Heavy-duty WB100 Performance Jib Crane for industrial lifting needs, featuring 3-ton capacity, 16 ft span, and easy installation.
Regular price
$4,899.99
Regular price
Sale price
$4,899.99
Unit price
per
Initiate Order
Gorbel WB100 Performance Jib Crane
$4,899.99
Quantity: 1
Claim Your Seller Account
Gorbel WB100 Performance Jib Crane
$4,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

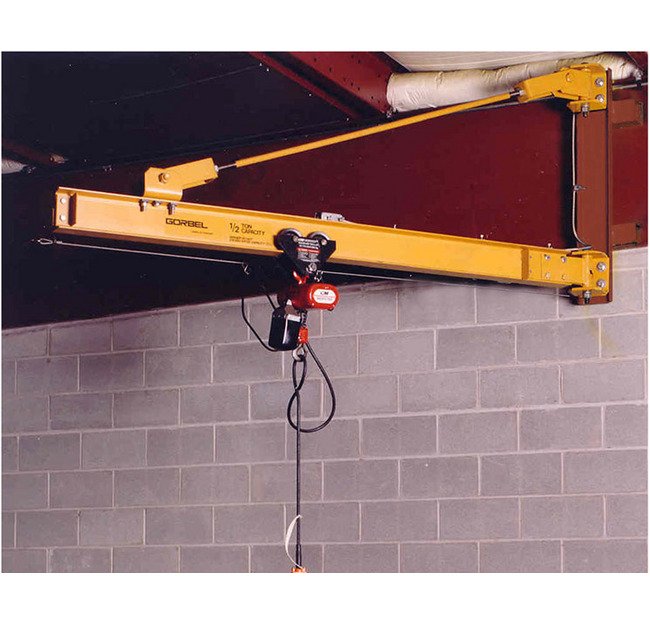

The Gorbel WB100 Series Wall Bracket Performance Jib Crane is a heavy-duty and economical lifting solution designed for individual use in industrial settings. With a 3-ton capacity and a 16 ft span, this jib crane offers reliable hoist coverage along walls or columns, complementing overhead crane systems. Gorbel's Advantage includes ease of movement with low dead weight, safety features such as formed bracket fittings, and full rated capacity for powered hoists. Installation is hassle-free with single tie rod leveling and bolted connections. The crane is pre-engineered to ensure optimal load positioning and structural integrity.
Product Specifications
Gorbels Advantage 0

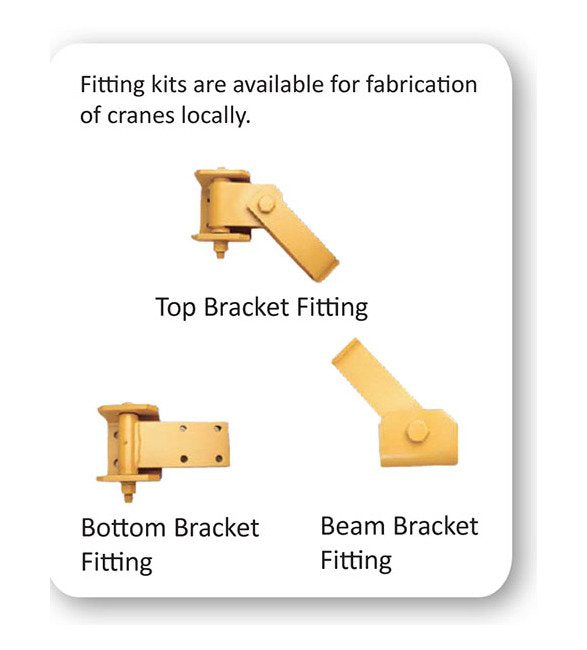

Ease of MovementLow dead weight of the boom combined with bronze bushings and oil-impregnated bronze thrust washers provide for easy rotation and superior load positioningSafetyFormed bracket fittings provide for greater reliability. No welds in tension, all bolts are in double shear for increased strengthFull Rated CapacityPre-engineered for use with powered hoists. A factor of 15% of the jib crane capacity is allowed for the hoist and trolley weight with an additional 25% of the capacity allowed for impact, thus giving full rated capacity use of the jibEase of InstallationSingle tie rod, right hand threaded at both ends for easy levelingAll connections bolted, including movable bolted trolley stopsGrease fittings are provided for easy field lubrication
Note 0

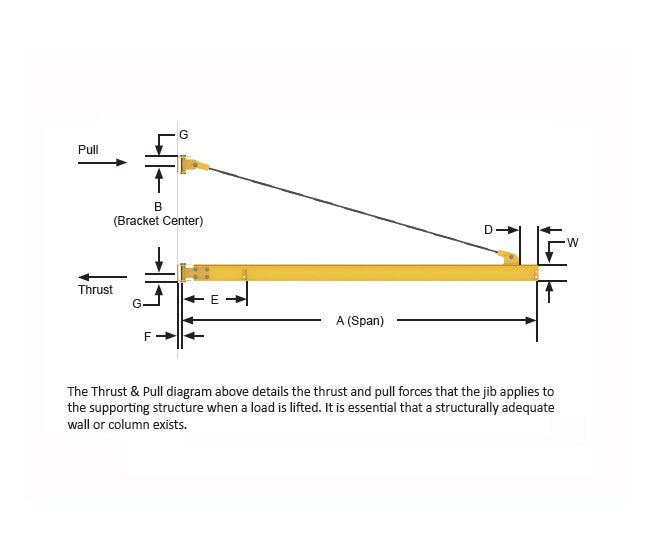

200º Power rotation is an available option.The Thrust & Pull diagram above details the thrust and pull forces that the jib applies to the supporting structure when a load is lifted. It is essential that a structurally adequate wall or column exists. Refer to the Thrust & Pull chart opposite this page for exact forces.Other Sizes & Capacities Readily AvailableOther spans and capacities are available by contacting your local Gorbel® dealer.Dimensions are subject to change without notice.
Specifications Bracket Center B
5 ft 6 in
Specifications Capacity
3 ton
Specifications Dimension D
2 ft 3 in
Specifications Dimension E
14 in
Specifications Dimension F
4 in
Specifications Dimension G
4-5/8 in
Specifications Dimension W
12 in
Specifications Mounting Style
Wall Bracket Style
Specifications Span A
16 ft
Specifications Thrust Pull
23649 lb
Specifications Tie Rod Diameter
1-1/2 in
