Gorbel WB100 Series Wall Bracket Jib Crane
Gorbel WB100 Series Wall Bracket Jib Crane
SKU:WB1-fd89c0
Economical heavy-duty Gorbel WB100 Series Wall Bracket Jib Crane for efficient hoist coverage with 2-ton capacity and 20 ft span. Easy movement, superior load positioning, and high safety standards.
Regular price
$3,999.99
Regular price
Sale price
$3,999.99
Unit price
per
Initiate Order
Gorbel WB100 Series Wall Bracket Jib Crane
$3,999.99
Quantity: 1
Claim Your Seller Account
Gorbel WB100 Series Wall Bracket Jib Crane
$3,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

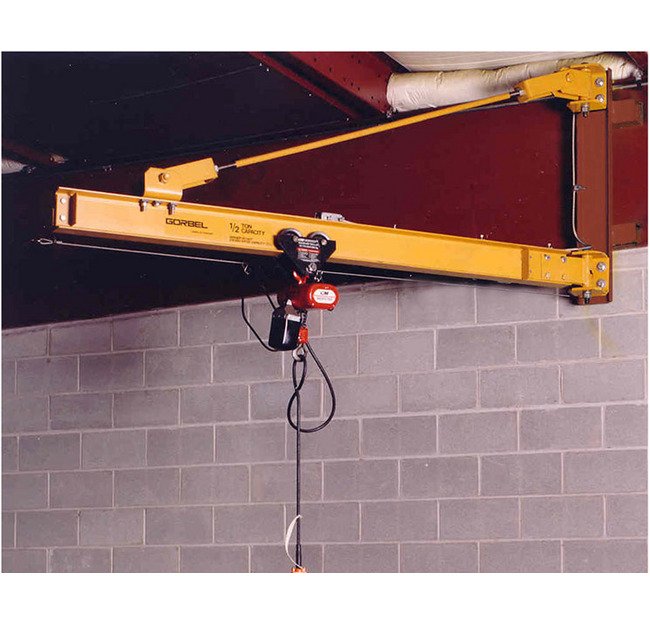

The Gorbel WB100 Series Wall Bracket Jib Crane is a heavy-duty, economically efficient solution designed to provide hoist coverage in industrial settings. With a 2-ton capacity and a 20 ft span, this jib crane is pre-engineered for use with powered hoists, offering ease of movement and superior load positioning. Gorbel's design ensures safety with formed bracket fittings for reliability and all bolts in double shear for enhanced strength. Installation is simplified with single tie rod leveling and bolted connections. This crane is ideal for individual bay use or as a supplement to overhead crane systems, meeting the stringent structural requirements and providing full rated capacity.
Product Specifications
Gorbels Advantage 0

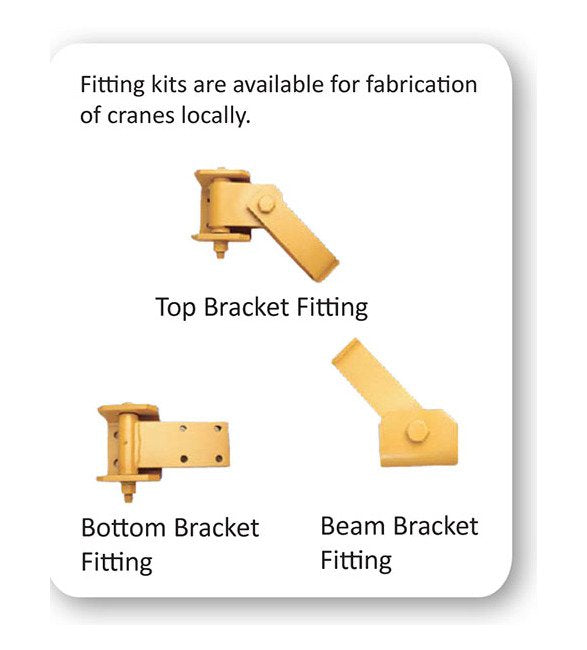

Ease of MovementLow dead weight of the boom combined with bronze bushings and oil-impregnated bronze thrust washers provide for easy rotation and superior load positioningSafetyFormed bracket fittings provide for greater reliability. No welds in tension, all bolts are in double shear for increased strengthFull Rated CapacityPre-engineered for use with powered hoists. A factor of 15% of the jib crane capacity is allowed for the hoist and trolley weight with an additional 25% of the capacity allowed for impact, thus giving full rated capacity use of the jibEase of InstallationSingle tie rod, right hand threaded at both ends for easy levelingAll connections bolted, including movable bolted trolley stopsGrease fittings are provided for easy field lubrication
Note 0

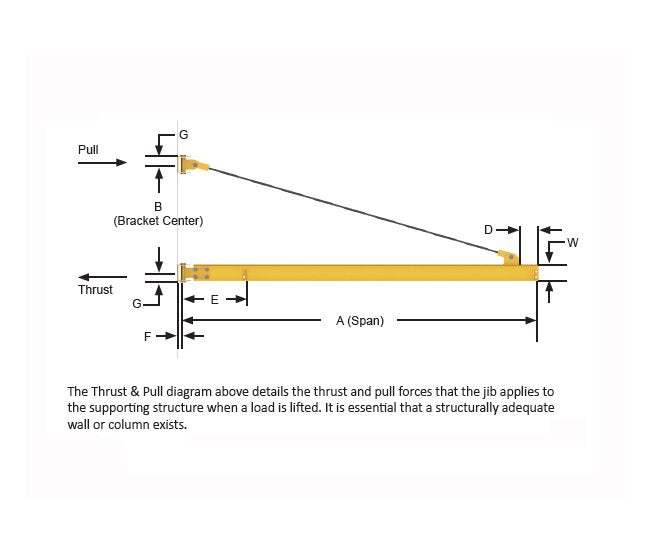

200º Power rotation is an available option.The Thrust & Pull diagram above details the thrust and pull forces that the jib applies to the supporting structure when a load is lifted. It is essential that a structurally adequate wall or column exists. Refer to the Thrust & Pull chart opposite this page for exact forces.Other Sizes & Capacities Readily AvailableOther spans and capacities are available by contacting your local Gorbel® dealer.Dimensions are subject to change without notice.
Specifications Bracket Center B
6 ft 6 in
Specifications Capacity
2 ton
Specifications Dimension D
2 ft 6 in
Specifications Dimension E
13-1/2 in
Specifications Dimension F
4 in
Specifications Dimension G
4-1/8 in
Specifications Dimension W
12 in
Specifications Mounting Style
Wall Bracket Style
Specifications Span A
20 ft
Specifications Thrust Pull
17348 lb
Specifications Tie Rod Diameter
1-1/2 in
