Gorbel WB100 Series Wall Bracket Jib Crane
Gorbel WB100 Series Wall Bracket Jib Crane
SKU:WB1-1003c4
Economical and heavy-duty Gorbel WB100 Series Wall Bracket Jib Crane for industrial lifting needs. Features smooth rotation, easy installation, and superior load positioning.
Regular price
$8,999.99
Regular price
Sale price
$8,999.99
Unit price
per
Initiate Order
Gorbel WB100 Series Wall Bracket Jib Crane
$8,999.99
Quantity: 1
Claim Your Seller Account
Gorbel WB100 Series Wall Bracket Jib Crane
$8,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

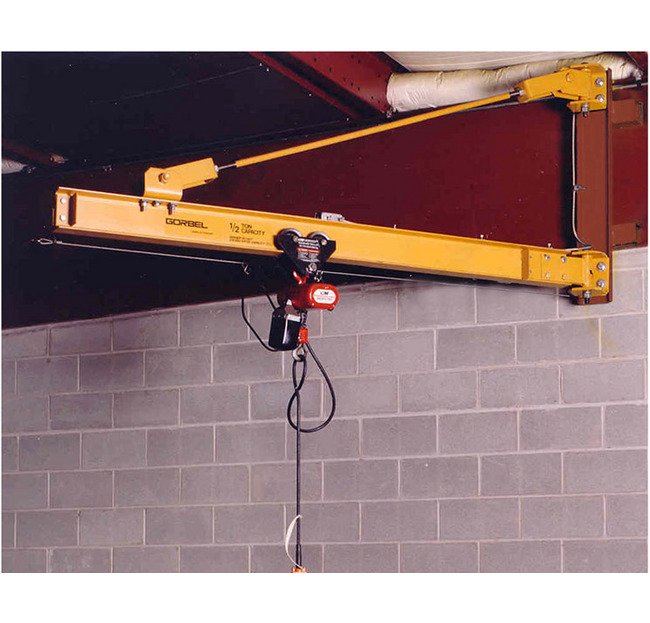

The Gorbel WB100 Series Wall Bracket Jib Crane is the ideal solution for heavy-duty lifting needs in industrial settings. With a capacity of 5 tons and a span of 30 ft, this crane offers a cost-effective hoisting solution along walls or columns. It features a structurally sound design with oil-impregnated bronze thrust washers for smooth rotation and load positioning. Installation is a breeze with bolted connections and a single tie rod for easy leveling. Gorbel ensures safety and reliability with no tension welds and double shear bolts for increased strength.
Product Specifications
Gorbels Advantage 0

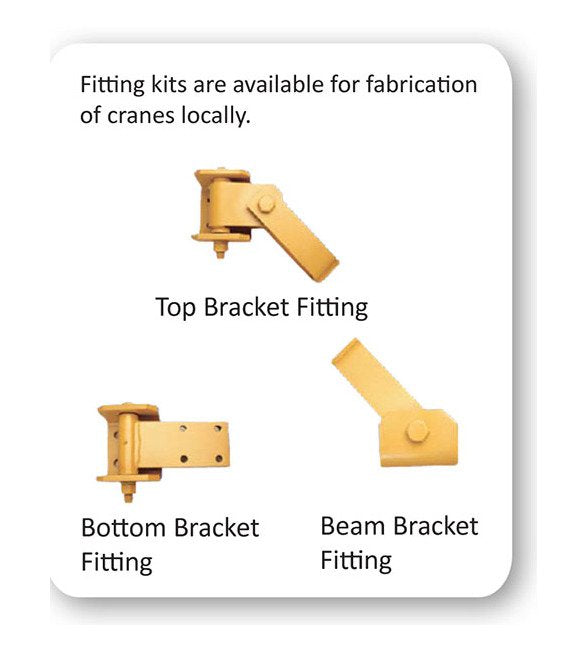

Ease of MovementLow dead weight of the boom combined with bronze bushings and oil-impregnated bronze thrust washers provide for easy rotation and superior load positioningSafetyFormed bracket fittings provide for greater reliability. No welds in tension, all bolts are in double shear for increased strengthFull Rated CapacityPre-engineered for use with powered hoists. A factor of 15% of the jib crane capacity is allowed for the hoist and trolley weight with an additional 25% of the capacity allowed for impact, thus giving full rated capacity use of the jibEase of InstallationSingle tie rod, right hand threaded at both ends for easy levelingAll connections bolted, including movable bolted trolley stopsGrease fittings are provided for easy field lubrication
Note 0

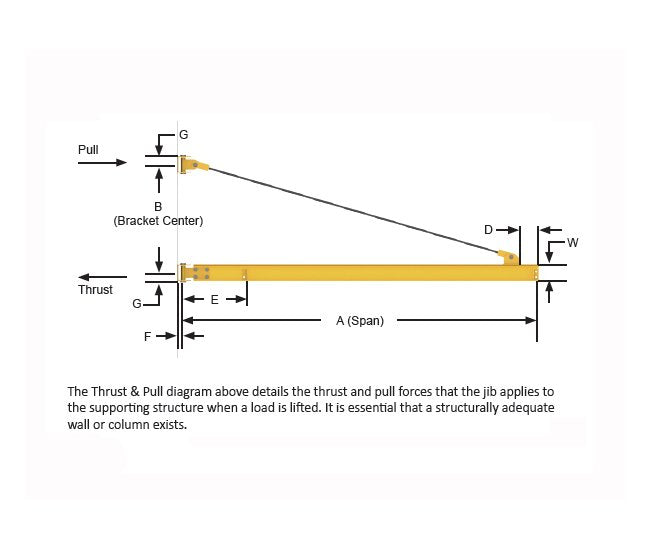

200º Power rotation is an available option.The Thrust & Pull diagram above details the thrust and pull forces that the jib applies to the supporting structure when a load is lifted. It is essential that a structurally adequate wall or column exists. Refer to the Thrust & Pull chart opposite this page for exact forces.Other Sizes & Capacities Readily AvailableOther spans and capacities are available by contacting your local Gorbel® dealer.Dimensions are subject to change without notice.
Specifications Bracket Center B
11 ft
Specifications Capacity
5 ton
Specifications Dimension D
3 ft 6 in
Specifications Dimension E
15-1/4 in
Specifications Dimension F
6 in
Specifications Dimension G
7 in
Specifications Dimension W
16 in
Specifications Mounting Style
Wall Bracket Style
Specifications Span A
30 ft
Specifications Thrust Pull
39376 lb
Specifications Tie Rod Diameter
2 in
