The Gorbel WB100 Series Wall Bracket Performance Jib Cranes offer an economical heavy-duty solution for hoist coverage in industrial settings. With a 3-ton capacity and an 18 ft span, these jib cranes are pre-engineered for powered hoist use, ensuring full rated capacity. The ease of movement, safety features, and simple installation make them ideal for individual use in bays, along walls, or as a supplement to overhead crane systems. Designed with bronze bushings, oil-impregnated thrust washers, and reliable bracket fittings, these jib cranes provide superior load positioning and structural support.
Product Specifications
Gorbels Advantage 0

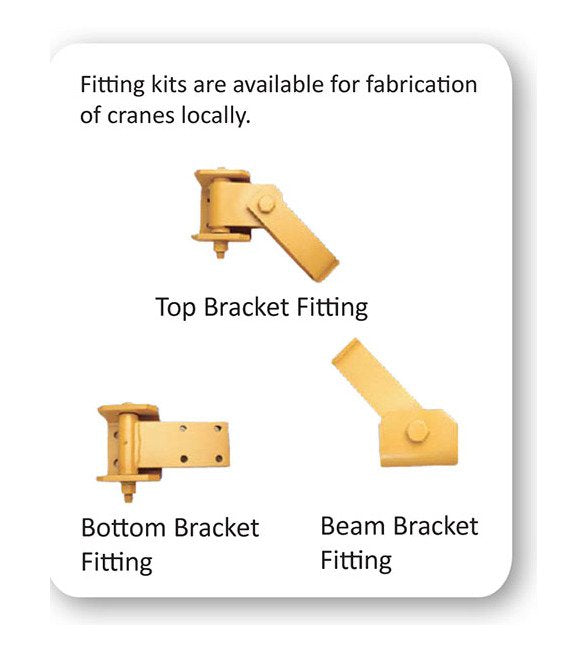

Ease of MovementLow dead weight of the boom combined with bronze bushings and oil-impregnated bronze thrust washers provide for easy rotation and superior load positioningSafetyFormed bracket fittings provide for greater reliability. No welds in tension, all bolts are in double shear for increased strengthFull Rated CapacityPre-engineered for use with powered hoists. A factor of 15% of the jib crane capacity is allowed for the hoist and trolley weight with an additional 25% of the capacity allowed for impact, thus giving full rated capacity use of the jibEase of InstallationSingle tie rod, right hand threaded at both ends for easy levelingAll connections bolted, including movable bolted trolley stopsGrease fittings are provided for easy field lubrication
Note 0

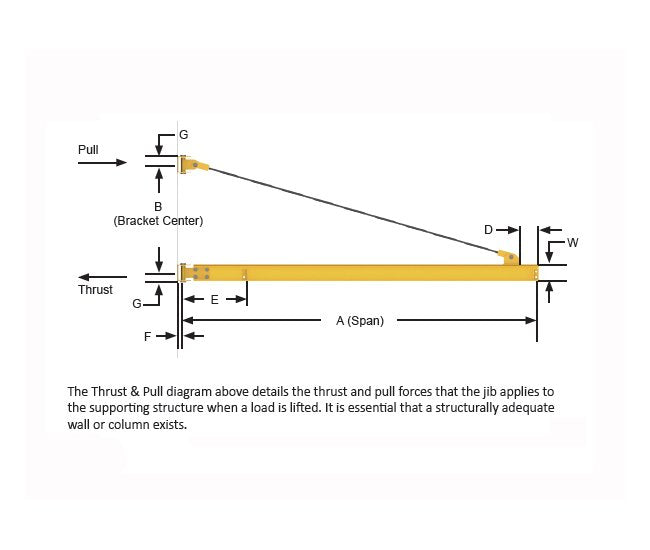

200º Power rotation is an available option.The Thrust & Pull diagram above details the thrust and pull forces that the jib applies to the supporting structure when a load is lifted. It is essential that a structurally adequate wall or column exists. Refer to the Thrust & Pull chart opposite this page for exact forces.Other Sizes & Capacities Readily AvailableOther spans and capacities are available by contacting your local Gorbel® dealer.Dimensions are subject to change without notice.
Specifications Bracket Center B
6 ft 3 in
Specifications Capacity
3 ton
Specifications Dimension D
2 ft 3 in
Specifications Dimension E
14 in
Specifications Dimension F
4 in
Specifications Dimension G
4-5/8 in
Specifications Dimension W
12 in
Specifications Mounting Style
Wall Bracket Style
Specifications Span A
18 ft
Specifications Thrust Pull
23970 lb
Specifications Tie Rod Diameter
1-1/2 in
