Enhance your lifting capabilities with the Gorbel WC200 Series Performance Jib Cranes. These jibs offer a 200º rotation, 3-ton capacity, and sturdy wall cantilever style for efficient hoist coverage. Designed for industrial settings, these jib cranes provide maximum lift in tight spaces, ensuring superior load positioning and safety. With easy installation and full rated capacity use, the Gorbel WC200 Series is pre-engineered for powered hoists, making it an ideal solution for maximizing productivity.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Gorbels Advantage 0

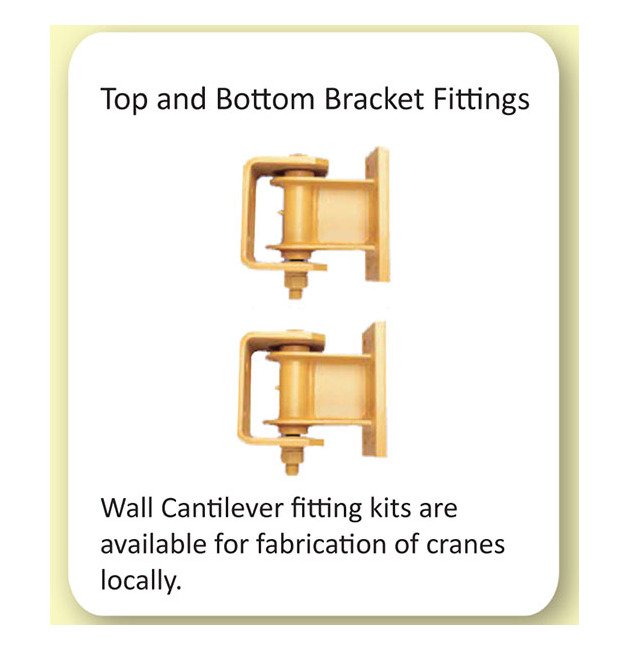

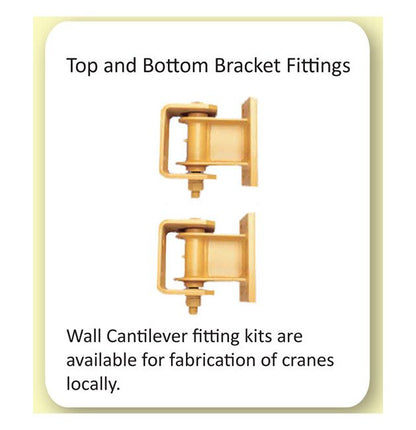

Ease of Movement The fittings contain bronze bushings and oil-impregnated bronze thrust washers which provide for easy rotation and superior load positioning Safety Fabricated steel fittings provide excellent torsional rigidityFull Rated CapacityPre-engineered for use with powered hoists. A factor of 15% of the jib crane capacity is allowed for the hoist and trolley weight with an additional 25% of the capacity allowed for impact, thus giving full rated capacity use of the jibEase of InstallationWhen the bracket center dimension is 6' 0 or less, the mast/boom connection is welded. This provides the most economical means of installationWhen the bracket center is greater than 6' 0", a bolted mast/boom connection is used, which enables the larger cranes to be shipped disassembled for ease of handling during shipping and installationGrease fittings are provided for easy field lubrication
Note 0

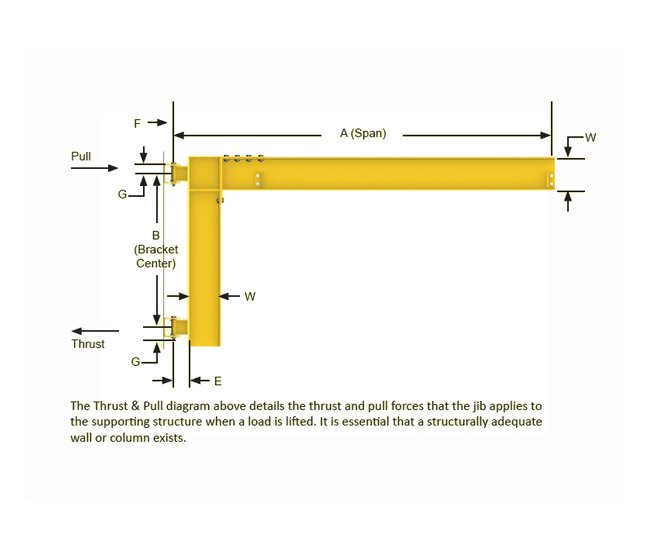

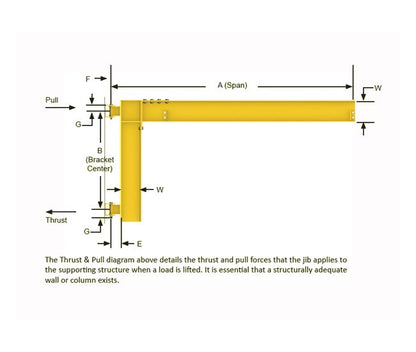

200º Power rotation is an available option.The Thrust & Pull diagram above details the thrust and pull forces that the jib applies to the supporting structure when a load is lifted. It is essential that a structurally adequate wall or column exists. Refer to the Thrust & Pull chart opposite this page for exact forces.Other Sizes & Capacities Readily AvailableOther spans and capacities are available by contacting your local Gorbel® dealer.Dimensions are subject to change without notice.
Specifications Bracket Center B
4 ft
Specifications Capacity
3 ton
Specifications Dimension E
5 in
Specifications Dimension F
4 in
Specifications Dimension G
6 in
Specifications Dimension W
16 in
Specifications Mounting Style
Wall Cantilever Style
Specifications Rotation Angle
200 º
Specifications Span A
8 ft
Specifications Thrust Pull
15060 lb
