Gorbel WC200 Series Wall Cantilever Performance Jib Cranes
Gorbel WC200 Series Wall Cantilever Performance Jib Cranes
SKU:WC2-826574
Maximize headroom with Gorbel WC200 Series Wall Cantilever Jib Cranes - ideal for efficient hoist coverage in industrial settings with 200° rotation and 2-ton capacity.
Regular price
$3,499.99
Regular price
Sale price
$3,499.99
Unit price
per
Initiate Order
Gorbel WC200 Series Wall Cantilever Performance Jib Cranes
$3,499.99
Quantity: 1
Claim Your Seller Account
Gorbel WC200 Series Wall Cantilever Performance Jib Cranes
$3,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

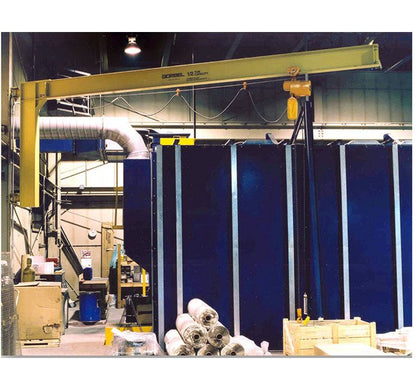

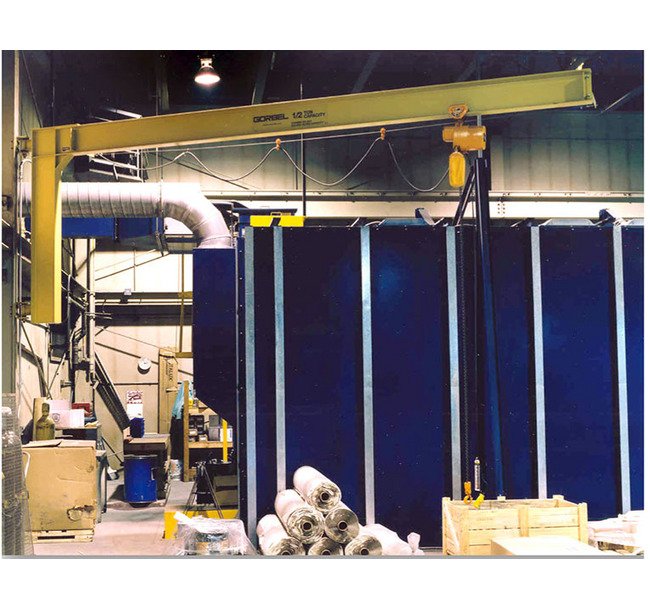

The Gorbel WC200 Series Wall Cantilever Performance Jib Cranes are expertly designed for efficient hoist coverage and 200° rotation, making them ideal for individual use in industrial settings. These jib cranes maximize headroom by providing superior lift close to ceilings, offering a capacity of 2 tons. Gorbel's Advantage includes ease of movement with bronze bushings, full rated capacity, and ease of installation with welded or bolted mast/boom connections. Safety is ensured with fabricated steel fittings for excellent torsional rigidity. With the option for 200° power rotation and variable spans/capacities, these jib cranes are versatile and reliable, meeting the highest standards of structural integrity and performance.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Gorbels Advantage 0

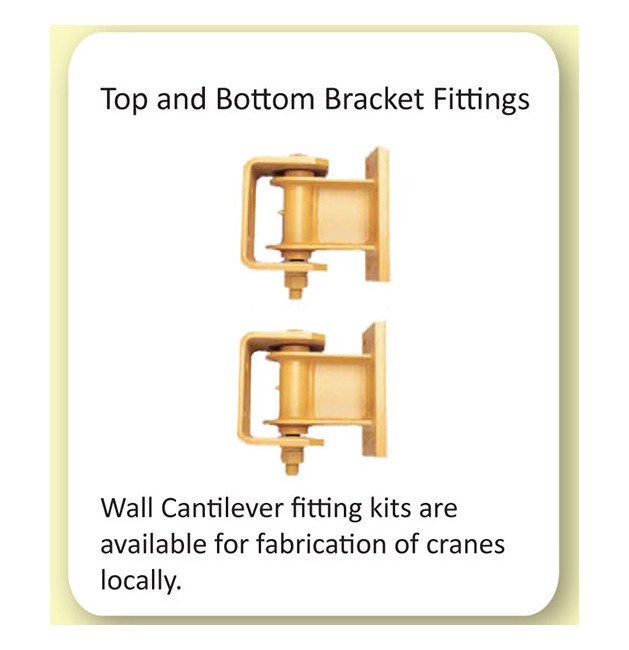

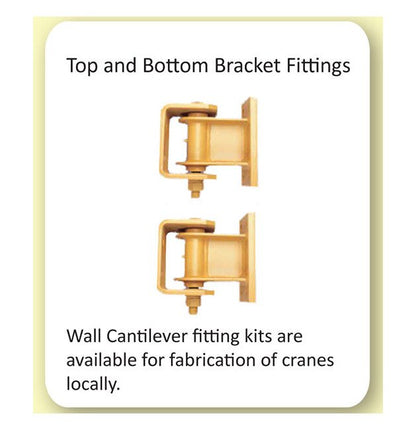

Ease of Movement The fittings contain bronze bushings and oil-impregnated bronze thrust washers which provide for easy rotation and superior load positioning Safety Fabricated steel fittings provide excellent torsional rigidityFull Rated CapacityPre-engineered for use with powered hoists. A factor of 15% of the jib crane capacity is allowed for the hoist and trolley weight with an additional 25% of the capacity allowed for impact, thus giving full rated capacity use of the jibEase of InstallationWhen the bracket center dimension is 6' 0 or less, the mast/boom connection is welded. This provides the most economical means of installationWhen the bracket center is greater than 6' 0", a bolted mast/boom connection is used, which enables the larger cranes to be shipped disassembled for ease of handling during shipping and installationGrease fittings are provided for easy field lubrication
Note 0

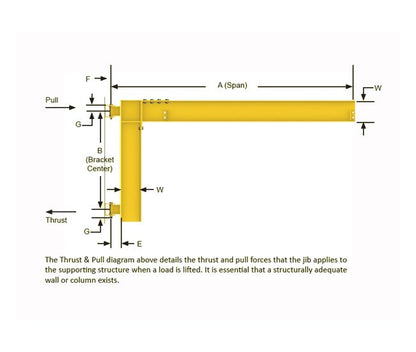

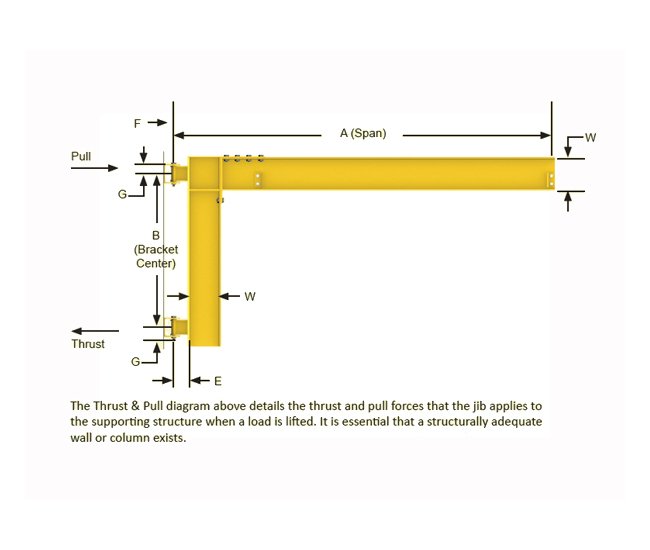

200º Power rotation is an available option.The Thrust & Pull diagram above details the thrust and pull forces that the jib applies to the supporting structure when a load is lifted. It is essential that a structurally adequate wall or column exists. Refer to the Thrust & Pull chart opposite this page for exact forces.Other Sizes & Capacities Readily AvailableOther spans and capacities are available by contacting your local Gorbel® dealer.Dimensions are subject to change without notice.
Specifications Bracket Center B
5 ft
Specifications Capacity
2 ton
Specifications Dimension E
5 in
Specifications Dimension F
4 in
Specifications Dimension G
6 in
Specifications Dimension W
16 in
Specifications Mounting Style
Wall Cantilever Style
Specifications Rotation Angle
200 º
Specifications Span A
14 ft
Specifications Thrust Pull
15442 lb
