Gorbel WSJ200 Series Cantilever Jib Cranes
Gorbel WSJ200 Series Cantilever Jib Cranes
SKU:WSJ-20e9a9
Enhance workplace efficiency with Gorbel WSJ200 Series Cantilever Jib Cranes - rotation, durability, and ease combined.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
Gorbel WSJ200 Series Cantilever Jib Cranes
$499.99
Quantity: 1
Claim Your Seller Account
Gorbel WSJ200 Series Cantilever Jib Cranes
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Gorbel WSJ200 Series Cantilever Jib Cranes are expertly engineered with tapered roller bearings for effortless rotation. Designed with a cantilevered structure, these cranes offer maximum headroom, facilitating efficient load handling. Featuring a 500 lb capacity and 12 ft span, these cranes come pre-engineered for powered hoists and precise load positioning. The enclosed track design enhances movement ease, while DURACOMP 4® wheels ensure durability and smooth operations.
Product Specifications
Accessories 0

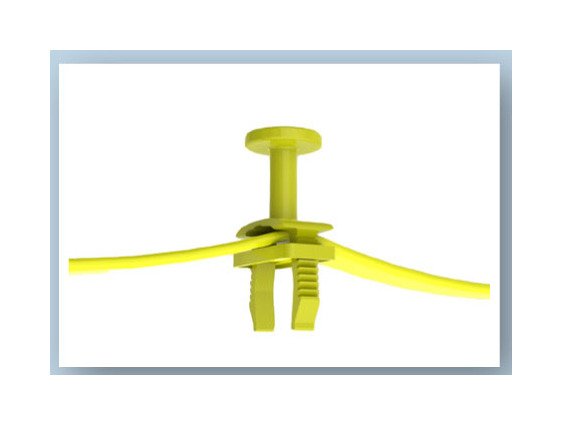

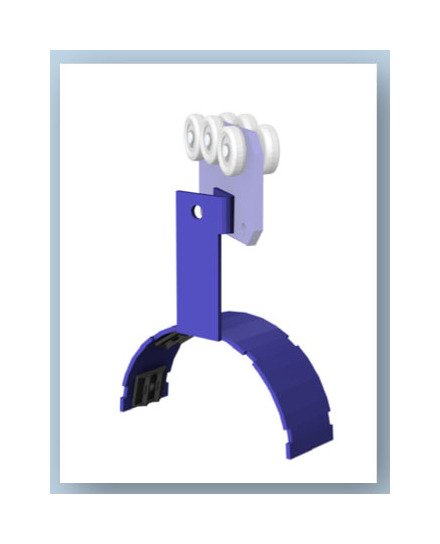

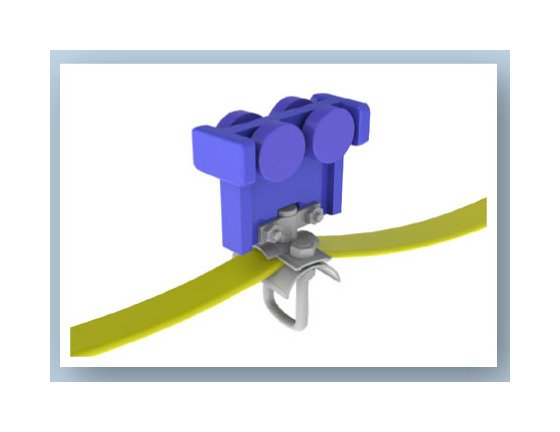

Accessories for Work Station Jib CranesFestooningFestoon Saddle: Gorbel's Tool Solution saddles were designed for applications that require festooning of cables and hoses. The arched saddle with the option of angled mounting creates a very clean, efficient way to manage your cables and wires.Saddles are available in 3 and 6 inch diameters for various sized festooning with a 75 pound capacity per saddle. The universal mounting plate allows for the saddle to hang in line with the track, or at a 30º angle to assist the cable in self-coiling, taking up less track space and allowing more room for end approach.Festoon Gliders are used to support flat electrical cable along the jib boom. No tools are required to attach the festooning to the gliders. Not available for AL100 jibs.Festoon Trolleys are used to support flat cable, air hose or round cable along the jib boom. The trolleys have four wheels and a pivoting festoon saddle support.
Additional Information 0
Lighter capacity, easy rolling enclosed track jibsGorbel® Work Station Jib Cranes provide excellent coverage in circular areas not efficiently served by a main crane. They're ideal for supporting tool balancers, air balancers, hoists, vacuum lifters and welding wire feeders. And they can handle up to 200º rotation when column or wall mounted, and up to 360º rotation when floor mounted.
General Information 0

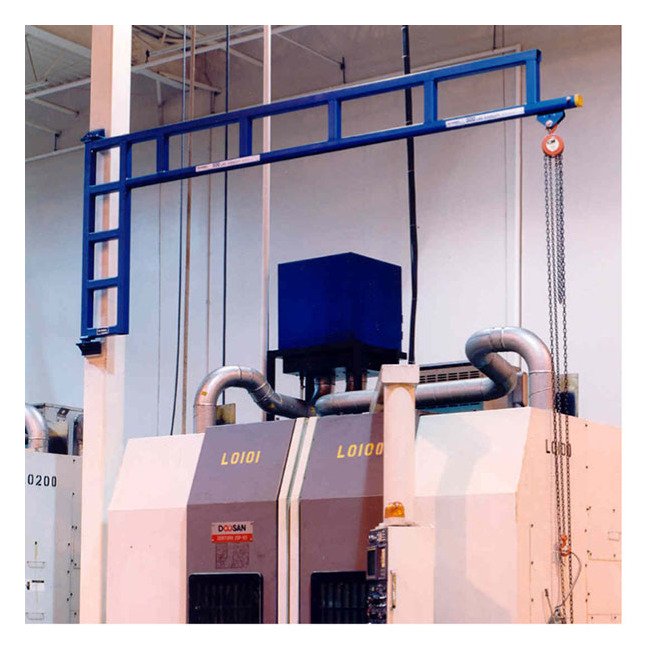

Work Station Jib Reduces Worker InjuriesThis customer was changing the chuck on a CNC machine by hand, requiring two men and causing physical injuries. The company wanted to reduce back injuries while maximizing safety and ergonomics.The customer first looked at a Gorbel® WSJ360 but there was not enough room between the machines for the footings. Monorails were unable to cover the entire area.The Gorbel® WSJ200 Work Station Jib Crane was the most cost effective and least disruptive solution. It allowed the maintenance to be performed by only one person and reduced the risk of back injury. With no footing, it allowed the customer to maximize their work space.
Gorbels Advantage 0
Easy MovementGorbel® Work Station Jib Cranes are easier to move and position than traditional I-beam jibs. The cold-formed, high strength enclosed track design keeps rolling surfaces clean, contributing to easier movement and longer life. The track's low weight-per-foot reduces the dead weight of the boom. And all Gorbel® enclosed track profiles feature 2º taper in the lower running flange which helps center the trolley in the track, increasing wheel life and allowing smooth rolling of the trolleys.Unsurpassed Ease of RotationThe steel enclosed track work station jibs (WSJ360, WSJ200, TSJ50 and TSJ150) weigh less and rotate easier than traditional I-beam cranes. The aluminum wall mounted jibs (AL100) feature extruded aluminum enclosed track that is lighter in weight for even easier movement of the boom.Precise Load PositioningA hoist trolley with low rolling resistance and lubricated-for-life sealed bearings combined with easy rotation of the boom help to precisely position and spot loads.DURACOMP 4® WheelsGorbel® trolley wheels are made of DURACOMP 4® - a food grade material that outperforms steel wheels in endurance and destructive testing. Wheels are tapered to match the track flange's 2º taper, which enhances wheel life and keeps the trolleys running smoothly.Pre-engineered for Powered HoistsHoist trolleys are included in the base price of all Gorbel® Work Station Jib Cranes. A factor of 15% of the jib capacity is allowed for the weight of the hoist, trolley and below-the-hook device. A factor of 25% of the jib capacity is allowed for impact (covers hoist speeds up to 50 fpm).
Note 0
Additional Sizes and Capacities Readily AvailableOther spans, heights, and capacities are available by contacting your local Gorbel® dealer.Dimensions are subject to change without notice.
Options 0
Trolley OptionsLight Tool Trolley: Designed specifically for suspended small tools, the light tool trolley features a six wheel design with the center wheel positioned slightly higher to prevent binding when force is applied at an angle. The short wheel base allows for multiple trolleys to be used in a small area, making this trolley ideal for hanging tooling with spring balancers that require side loading capabilities. This trolley fits 250 series track in capacities up to 75 lb.Heavy Tool Trolley: The heavy tool trolley features six wheels with the center axis set higher to prevent binding. With a higher capacity and longer body profile, this trolley fits 500 series track in capacities up to 125 lb., and can be used for suspending tools or festooning. An optional swivel attachment can be added to the bottom edge to support festooning of electrical, air or vacuum tube.Rotation OptionsFour Ring Electrical Collector (Top or Bottom Entry - not shown): Provides continuous 360º rotation of the boom when using an electrical lifting device. The top entry collector requires 11 1/4 additional clearance heightAir Swivel (Top or Bottom Entry - not shown): Provides continuous 360º rotation of the boom when using an air powered lifting device. A top entry collector require 5" of additional clearance above the pivot pin. The bottom entry collector requires 8 1/2 to 9 1/2 inches above the pivot pin depending on span and capacity.Manual Rotation Stops (not shown): To prevent boom damage to machines, equipment, or building structures, rotation stops can be used to the limit the WSJ360 rotation to less than 360º.

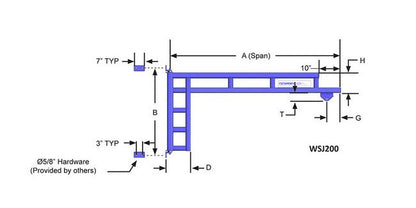

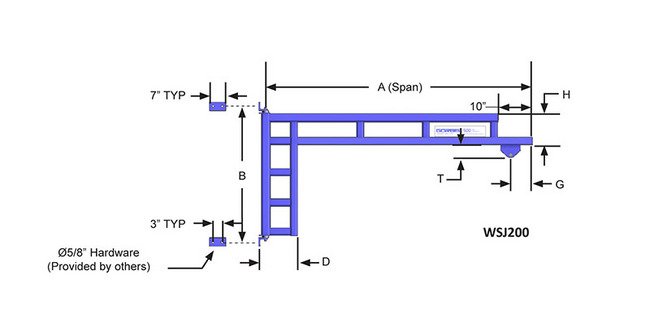

Specifications Capacity
500 lb
Specifications Dimension B
60 in
Specifications Dimension D
16-3/8 in
Specifications Dimension G
7-1/8 in
Specifications Dimension H
15 in
Specifications Dimension T
2-7/8 in
Specifications Dual Trussed Track Series
500
Specifications Mounting Style
Wall Cantilever Style
Specifications Rotation Angle
200 º
Specifications Span A
12 ft
Specifications Thrust Pull
1750 lb
Specifications Weight
252 lb
