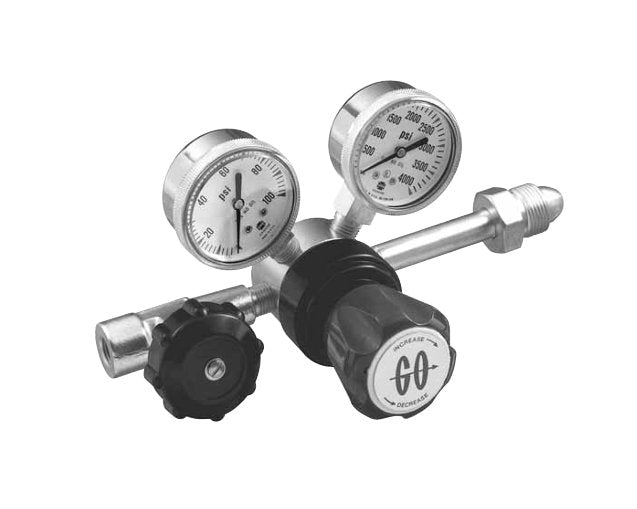

GOReg CYL-1 Brass Cylinder Regulator
GOReg CYL-1 Brass Cylinder Regulator
SKU:GOP-2326c1
Compact, precise and reliable single-stage brass cylinder regulator designed for controlling gas pressure efficiently.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
GOReg CYL-1 Brass Cylinder Regulator
$129.99
Quantity: 1
Claim Your Seller Account
GOReg CYL-1 Brass Cylinder Regulator
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The GOReg CYL-1 Brass Cylinder Regulator is a compact pressure control solution featuring a self-relieving diaphragm and a flow coefficient (Cv) of 0.2, ideal for precise gas cylinder regulation. With an outlet range of 0 to 250 psig and a maximum inlet pressure of 3600 psig, this regulator ensures reliable performance in various applications. The regulator includes integral inlet filters, 2" diameter brass gauges, and PTFE-lined stainless steel diaphragms, suitable for non-corrosive gases. Designed for durability and efficiency, this regulator meets the needs of industries requiring a corrosion-resistant solution without the need for stainless steel, making it a versatile choice for gas regulation.
Product Specifications
Features And Specifications Features And Specifications
CGA inlet fittingIntegral inlet filter2" diameter brass gaugesPTFE-lined stainless steel diaphragmFluid media; non-corrosive gases
Note Note
Contact the factory for any additional requirements.
Specifications Cap Assembly
Standard, Stainless Steel
Specifications Diaphragm Type
Self-Relieving
Specifications Flow Coefficient Cv
0.2
Specifications Gauges
Include Gauges
Specifications Gauge Port Types
1/4 in. Female National Pipe Tapered (FNPT) Gauge Ports
Specifications Maximum Inlet Pressure
3600 psig
Specifications Operating Temperature
-40 to +175 ºF | -40 to +80 ºC
Specifications Outlet Range
0 to 250 psig

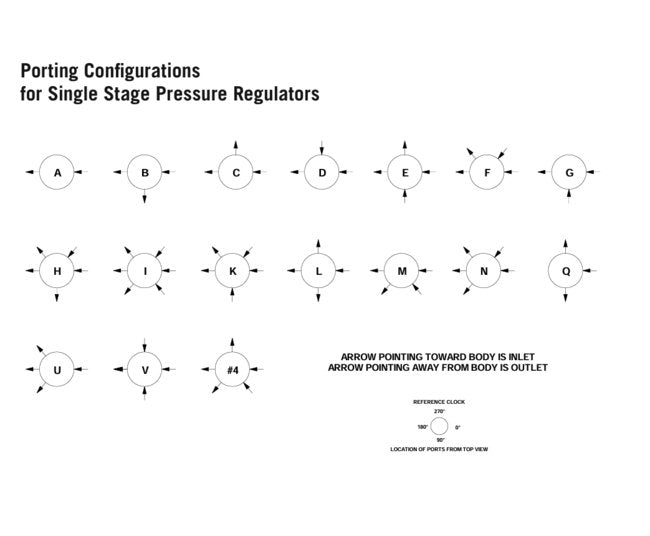

Specifications Port Configuration
Standard
Specifications Process Port Types
1/4 in. Female National Pipe Tapered (FNPT)
