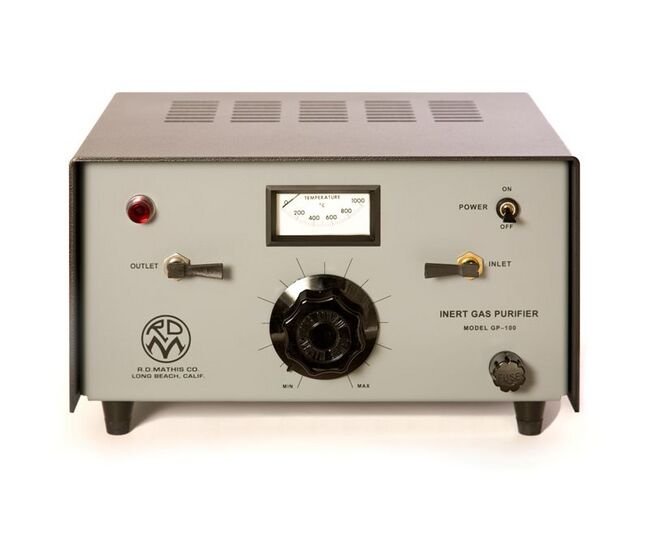

GP-100 Inert Gas Purifier System
GP-100 Inert Gas Purifier System
SKU:GP1-77674b
Achieve ultra-high gas purity effortlessly with the GP-100 Inert Gas Purifier System. Ideal for research, development, and production applications.
Regular price
$2,899.99
Regular price
Sale price
$2,899.99
Unit price
per
Initiate Order
GP-100 Inert Gas Purifier System
$2,899.99
Quantity: 1
Claim Your Seller Account
GP-100 Inert Gas Purifier System
$2,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The GP-100 Inert Gas Purifier System is a top choice for research, development, and production applications, offering lightweight, compact, and cost-effective inert gas purification. Designed for easy operation within an hour, this system ensures ultra-high gas purity by purifying gases to meet the strictest standards. With stainless steel construction, replaceable filtration components, and precise temperature control, it eliminates impurities effectively. Ideal for applications like Sputtering Modules and Crystal Growth Furnaces, this purifier guarantees optimal gas quality for critical processes.
Product Specifications
Applications 0
Applications for the unit include purification of gases for: Sputtering Modules Crystal Growth FurnacesGlove Boxes
Manufacturing Notes 0
Impurities were measured with a mass spectrometer by west coast technical serviceman Gabriel, California.
More Information 0
The GP-100 has been shown to purify 99.8% argon gas to 99.9991% purity as part of a worst case test. The principle purity levels at flow rates of 1/4 Liter per Minute ( L/min) (0.53 Cubic Feet per Hour (ft³/h)) were measured to be H20 - 2 Parts per Minute (ppm), N2/CO - 3 Parts per Minute (ppm), O2 - 2 Parts per Minute (ppm), Ethane - 1 Parts per Minute (ppm), other Hydrocarbons - no detection, and CO - 1 Parts per Minute (ppm), with the limits of detectability set at 1 Parts per Minute (ppm). Available literature indicates that starting from a high purity gas and an all stainless steel system impurity levels as low as 10 to 8 Parts per Minute (ppm) in oxygen can be obtained. While the unit was designed primarily for argon gas, it may be used for helium, xenon, and neon.
Specifications Ac Input Voltage
110 V
Specifications Construction Material
Stainless Steel
Specifications Cooling
Requires 1 Inch (in) clearance on all sides for adequate air cooling
Specifications Depth
10-1/2 in
Specifications Furnace Temperature
0 to 1000 ºC
Specifications Height
7 3/16 in
Specifications Impurity Levels At Flow Rate 14 Liter Per Minute
Carbon Dioxide (CO2) - 1 Parts per Minute (ppm) | Nitrogen / Carbon Monoxide (N2 / CO) - 3 Parts per Minute (ppm) | Other Hydrocarbons - No Detection | Oxygen (O2) - 2 Parts per Minute (ppm) | Water (H2O) - 2 Parts per Minute (ppm)
Specifications Impurity Level At Flow Rate
1/4 L/min

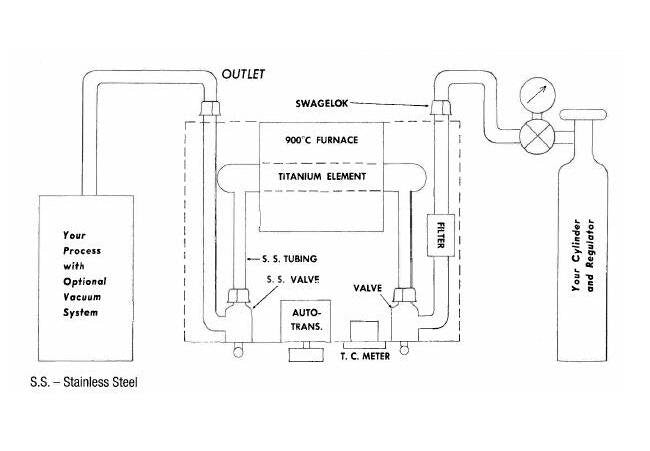

Specifications Inlet
1/4 Inch (in) Swagelok coupling, particle filter and 1/4 Inch (in) toggle valve
Specifications Input Current
5 A
Specifications Maximum Flow
At 99.9% pure inlet gas 1/4 Liter per Minute (L/min) (0.53 Cubic Feet per Hour (ft³/h)) at atmosphere pressure
Specifications Maximum Furnace Power
400 W
Specifications Maximum Vacuum Pressure
10 psi
Specifications Options
All stainless steel tubing and parts throughout gas flow path | Also available in 220 Volt (V) AC unit
Specifications Outlet
All stainless Steel fittings, toggle valve, 1/4 Inch (in) Swagelok coupling
Specifications Particle Filter
On Inlet Size 7 microns nominal (Replaceable)
Specifications Power Supply
110 Volt (V) AC, 5 Ampere (A); switch, pilot light and fuse on front panel
Specifications Swagelok Coupling Size
1/4 in
Specifications Temperature Control
Chromel - Alumel Thermocouple, meter on front panel along with autotransformer control
Specifications Titanium Element
Quartz (Replaceable)
Specifications Toggle Valve Size
1/4 in
Specifications Vacuum Pressure
10 Pound per Square Inch (psi) maximum, helium leak tight vacuum
Specifications Weight
20 lb
Specifications Width
19 1/8 in
