GP4 Chipbreaker with Hole, Radius 1/32 in
GP4 Chipbreaker with Hole, Radius 1/32 in
SKU:TUR-1c1e6c
Enhance your turning operations with the Utility Diamond Negative GP4 Chipbreaker, radius 1/32 in. Achieve precision and efficiency.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
GP4 Chipbreaker with Hole, Radius 1/32 in
$29.99
Quantity: 1
Claim Your Seller Account
GP4 Chipbreaker with Hole, Radius 1/32 in
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Utility Diamond Negative GP4 Chipbreaker with Hole, featuring a radius of 1/32 in and an angle of 35º, offers precision in turning operations. With dimensional specifications of Thickness: 0.192-0.198 in and Inscribed Circle: 0.373-0.377 in, it ensures accuracy and efficiency. Classified for General Purpose operations and available on request in various grades, this chipbreaker combines quality and versatility for turning blanks.
Product Specifications
Classifications Operation
General Purpose

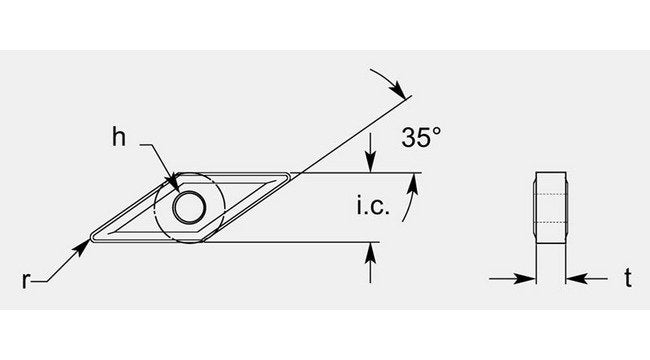

Dimensional Specification Angle A
35 º
Dimensional Specification Hole
0.148 / 0.152 in
Dimensional Specification Inscribed Circle Ic
0.373/0.377 in
Dimensional Specification Radius R
1/32 in
Dimensional Specification Thickness T
0.192 / 0.198 in
Grade Availability Grade Availability
Available on Request
