GP4 Diamond Negative Chipbreaker with Hole, r 1/64 in
GP4 Diamond Negative Chipbreaker with Hole, r 1/64 in
SKU:TUR-3eea5d
Enhance turning precision with the GP4 Diamond Negative Chipbreaker, featuring an optimal 55° Angle and a 1/64 in Radius. Available in various grades.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
GP4 Diamond Negative Chipbreaker with Hole, r 1/64 in
$24.99
Quantity: 1
Claim Your Seller Account
GP4 Diamond Negative Chipbreaker with Hole, r 1/64 in
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

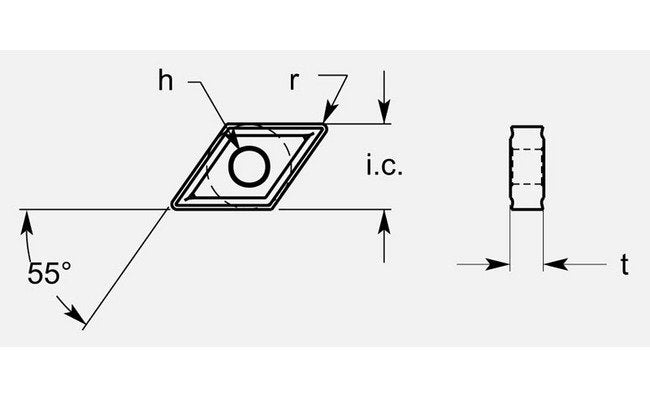

The GP4 Diamond Negative Chipbreaker with Hole, featuring an Inscribed Circle of 0.497/0.503 in and a precise Radius of 1/64 in, is designed for General Purpose turning tasks. Its thickness ranges from 0.193 to 0.199 in, with an optimal 55° Angle for efficient operations. The included hole of 0.200/0.206 in enhances versatility. This chipbreaker, available on request in various grades, ensures superior performance and durability, meeting stringent industry standards for institutional procurement.
Product Specifications
Classifications Operation
General Purpose
Dimensional Specification Angle A
55 º
Dimensional Specification Hole
0.200 / 0.206 in
Dimensional Specification Inscribed Circle Ic
0.497/0.503 in
Dimensional Specification Radius R
1/64 in
Dimensional Specification Thickness T
0.193 / 0.199 in
Grade Availability Grade Availability
Available on Request
