GP6 Chipbreaker with Hole - Trigon Negative Utility
GP6 Chipbreaker with Hole - Trigon Negative Utility
SKU:TUR-dc9d42
Enhance turning precision with the GP6 Chipbreaker's adaptable thickness and efficient chip evacuation hole.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
GP6 Chipbreaker with Hole - Trigon Negative Utility
$29.99
Quantity: 1
Claim Your Seller Account
GP6 Chipbreaker with Hole - Trigon Negative Utility
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

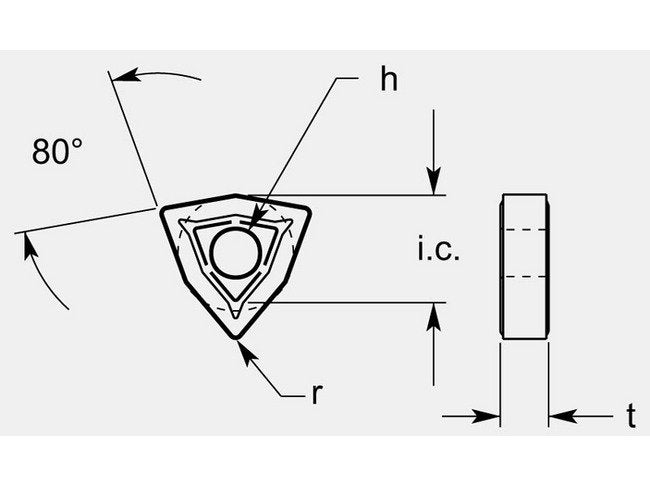

The GP6 Chipbreaker with Hole offers a dual thickness of 0.190 and 0.196 inches, providing versatility in machining applications. With an inscribed circle ranging from 0.497 to 0.503 inches and an 80-degree angle, this chipbreaker ensures precision in turning operations. The integrated hole sized at 0.200 to 0.206 inches facilitates efficient chip evacuation. Ideal for general-purpose operations, this grade is available upon request, meeting the diverse needs of institutional and government buyers.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Classifications Operation
General Purpose
Dimensional Specification Angle A
80 º
Dimensional Specification Hole
0.200 / 0.206 in
Dimensional Specification Inscribed Circle Ic
0.497/0.503 in
Dimensional Specification Radius R
1/32 in
Dimensional Specification Thickness T
0.190 / 0.196 in
Grade Availability Grade Availability
Available on Request
