GPD Grade Polypropylene Pleated Filter Cartridges
GPD Grade Polypropylene Pleated Filter Cartridges
SKU:PLE-262d6d
Max Efficiency GPD Polypropylene Filter Cartridges - FDA-accepted materials, 99.9% filtration efficiency, ideal for wine/beverage filtration.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
GPD Grade Polypropylene Pleated Filter Cartridges
$49.99
Quantity: 1
Claim Your Seller Account
GPD Grade Polypropylene Pleated Filter Cartridges
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

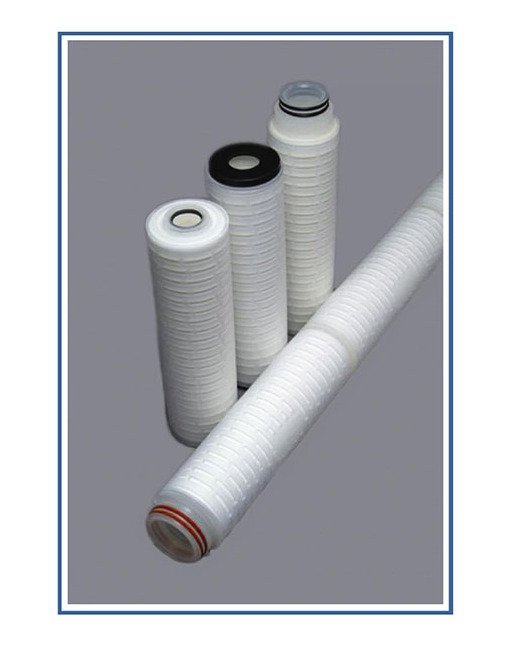

The GPD Grade Polypropylene Pleated Filter Cartridges are engineered for maximum efficiency and cost-effectiveness. With a pore size of 0.10 µm and 316 SS Ring design, these cartridges offer 99.9% filtration efficiency. Constructed with FDA-accepted materials, these cartridges meet USP class 6 Toxicology extractable tests, ensuring quality and performance. Suitable for applications such as wine clarification, beverage filtration, and cosmetics manufacturing, these cartridges deliver high flow rates, easy sanitization, and reliable filtration performance.
Product Specifications
Applications 0
Filtration of:Wine ClarificationBeverage ClarificationCosmeticsChemicalsSoft DrinksBottled WaterProcess WaterAir & Gases
Construction Materials Center Core Material
Polypropylene
Construction Materials End Caps Material
Polypropylene
Construction Materials Filtration Media
Polypropylene
Construction Materials Filtration Media Support Material
Polypropylene
Construction Materials Note
All materials of construction are FDA accepted. Final assemblies have been validated to pass USP class 6 Toxicology extractable tests, oxidizable substances for plastics, endotoxin level and other quality tests.
CONSTRUCTION MATERIALS OUTER SUPPORT CAGE Material
Polypropylene
Construction Materials O Rings Material
Buna | EP | PTFE® Encapsulated Silicone | PTFE® Encapsulated Viton® | Silicone | Viton®
Construction Materials Sealing Method
Thermal Bonding
Dimensions Filtration Area Per 10 Length
Upto to 7.2 ft² | 0.67 m²
Dimensions Nominal Length
5 to 40 in | 12.7 to 101.6 cm
Dimensions Nominal Outside Diameter
2.75 in | 7.0 cm
Flow Rate 0

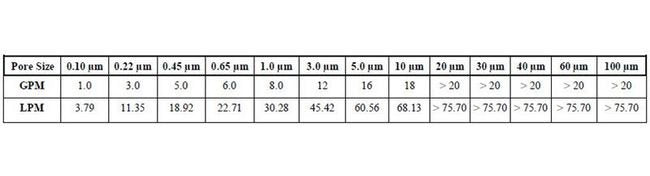

See the Flow Rate table in more image which represents typical water flow at a one psi (69 mbar) pressure differential across a single 10-inch cartridge element. The test fluid is water at ambient temperature. Extrapolation for housings with multiple elements and higher pressure drops is acceptable, but as flows increase the pressure drop of the housing becomes more apparent.
Integrity Test Information 0
Cartridges are factory tested for integrity before shipment. Field Duplication of these tests is not practical because of the complexity of the testing process and absence of commercial portable testing equipment.
Maximum Operating Parameters Forward Differential Pressure At 20
50 psi | 3.4 bar
Maximum Operating Parameters Operating Temperature At 10 Psid 06
180 ºF | 82 ºC
Maximum Operating Parameters Recommended Change Out Pressure
35 psid | 2.4 bar
Maximum Operating Parameters Reverse Differential Pressure At 20
40 psi | 2.7 bar
Quality Standards 0
Our goal is to ensure our customers the greatest possible value for their filtration dollar. We achieve both low cost manufacture and high quality by employing state of the art manufacturing equipment. This computer-controlled equipment is highly automated, reducing hand operations that compromise quality. Each operation, including assembly, testing, cleaning, drying and packaging, is done in appropriately rated clean rooms. Critical Process Filtration manages an ISO 9000 facility that produces validated products to rigorous standards. Manufacturing is controlled using sophisticated MRP software that is networked to work stations in manufacturing centers and inspection points. During the manufacturing and inspection processes, data is collected "real time" from machinery and measuring instruments. This allows variable and attribute data to be quickly and easily analyzed to facilitate constant improvements in both quality and cost.
Sanitization Sterilization Autoclave
250ºF (121ºC), 30 min, multiple cycles
Sanitization Sterilization Chemical Sanitization
Industry standard concentrations of hydrogen peroxide, paracetic acid, sodium hypochlorite and other selected chemicals. Sanitization protocols designed to extend the useful life of GPD cartridges are available from Critical Process Filtration, Inc.
Sanitization Sterilization Filtered Hot Water
194 ºF | 90 ºC
Sanitization Sterilization In Line Steam
275ºF (135ºC), 30 min, multiple cycles
Specifications 316 Ss Ring
Ring
Specifications Cartridge Length
20 in | 50.8 cm
Specifications End Caps
020 O-ring / Plug | 213/119 Internal O-ring / Plug | 213/119 Internal O-ring DOE | 2-222 O-ring / Flat | 2-222 O-ring / Plug | 2-222 O-ring / Spear | 2-222 O-ring 3 Tab / Flat | 2-222 O-ring 3 Tab / Spear | 2-223 O-ring / Flat | 2-223 O-ring / Spear | 2-226 O-ring / Flat | 2-226 O-ring / Spear | Flat Gasket / Plug | Flat Gasket, DOE
Specifications Flow Rate
1.0 gpm | 3.79 lpm
Specifications Pore Size
0.10 µm
Total Performance 0

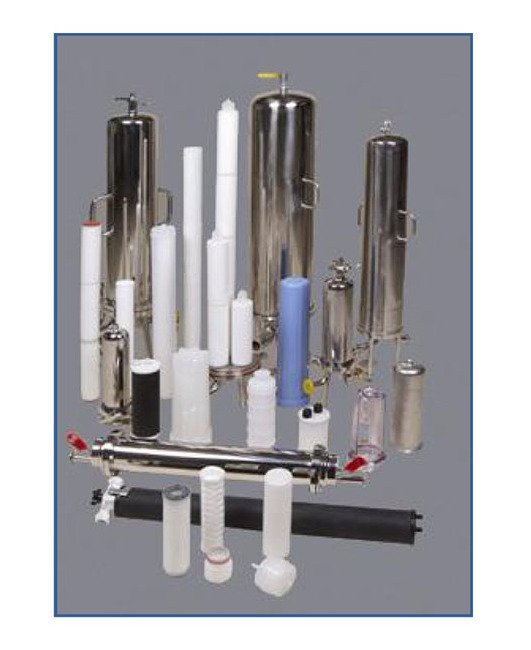

Critical Process Filtration, Inc. is a vertically integrated supplier of filtration products and services to industries in which filtration is considered to be a critical part of the manufacturing process. We manufacture a complete line of products to help you achieve all your filtration requirements from a single source.
