GPM Grade Polypropylene Membrane Filter Cartridges
GPM Grade Polypropylene Membrane Filter Cartridges
SKU:PLE-91f707
Cost-effective GPM Polypropylene Membrane Filter Cartridges for reliable and efficient filtration in various applications.
Regular price
$25.99
Regular price
Sale price
$25.99
Unit price
per
Initiate Order
GPM Grade Polypropylene Membrane Filter Cartridges
$25.99
Quantity: 1
Claim Your Seller Account
GPM Grade Polypropylene Membrane Filter Cartridges
$25.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

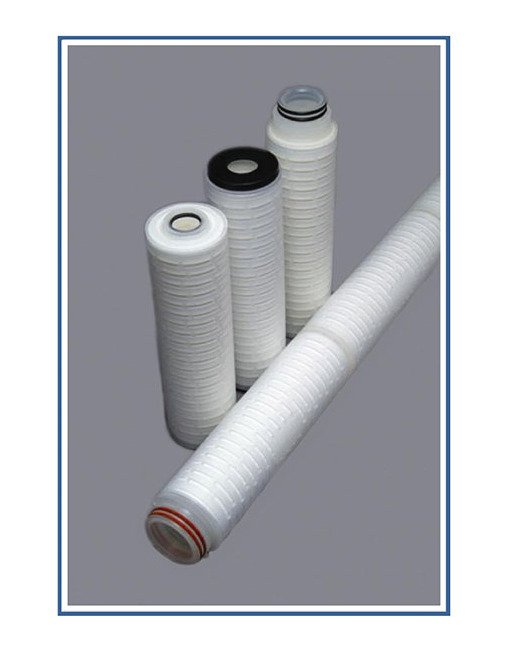

The GPM Grade Polypropylene Membrane Filter Cartridges are engineered for cost-effective filtration needs, ideal for general purpose applications. These cartridges are meticulously designed to maximize filter media utilization, ensuring efficient filtration and cost savings. Flushed with high-purity water and individually tested for integrity, these cartridges offer a reliable and economical alternative to special purpose filters. With FDA-approved construction materials and validated to meet stringent quality tests, the GPM cartridges provide exceptional performance and value.
Product Specifications
Applications 0
Filtration of:EtchantsTank VentsSolventsAcids & BasesGasesCompressed AirChemicalsFermentation Air
Construction Materials Center Core Material
Polypropylene
Construction Materials End Caps Material
Polypropylene
Construction Materials Filtration Media
Polypropylene
Construction Materials Filtration Media Support Material
Polypropylene
Construction Materials Note
All materials of construction are FDA accepted. Final assemblies have been validated to pass USP class 6 Toxicology extractable tests, oxidizable substances for plastics, endotoxin level and other quality tests.
CONSTRUCTION MATERIALS OUTER SUPPORT CAGE Material
Polypropylene
Construction Materials O Rings Material
Buna | EP | PTFE® Encapsulated Silicone | PTFE® Encapsulated Viton® | Silicone | Viton®
Construction Materials Sealing Method
Thermal Bonding
Dimensions Filtration Area Per 10 Length
7.0 ft² | 0.65 m²
Dimensions Nominal Length
5 to 40 in | 12.7 to 101.6 cm
Dimensions Nominal Outside Diameter
2.75 in | 7.0 cm
Flow Rate 0

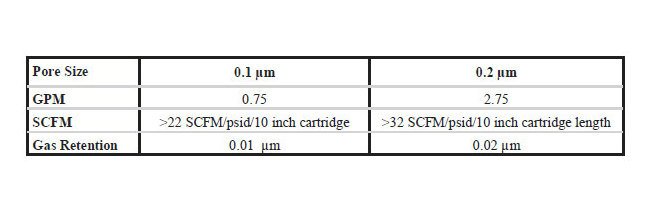

See the Flow Rate table in more image which represents typical water flow at a one psi (69 mbar) pressure differential across a single 10-inch cartridge element. The test fluid is water at ambient temperature. Extrapolation for housings with multiple elements and higher pressure drops is acceptable, but as flows increase the pressure drop of the housing becomes more apparent.

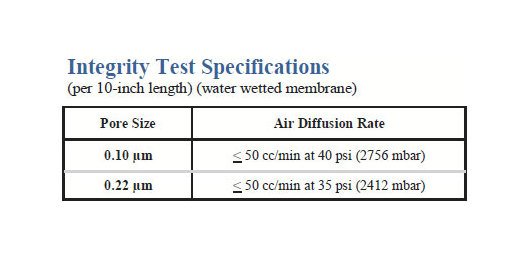

Integrity Test Information Air Diffusion Rate
⤠50 cc/min at 40 psi | ⤠50 cc/min at 2756 mbar
Maximum Operating Parameters Forward Differential Pressure At 20
50 psi | 3.4 bar
Maximum Operating Parameters Operating Temperature At 10 Psid 06
180 ºF | 82 ºC
Maximum Operating Parameters Recommended Change Out Pressure
35 psid | 2.4 bar
Maximum Operating Parameters Reverse Differential Pressure At 20
40 psi | 2.7 bar
Quality Standards 0
Our goal is to ensure our customers the greatest possible value for their filtration dollar. We achieve both low cost manufacture and high quality by employing state of the art manufacturing equipment. This computer-controlled equipment is highly automated, reducing hand operations that compromise quality. Each operation, including assembly, testing, cleaning, drying and packaging, is done in appropriately rated clean rooms. Critical Process Filtration manages an ISO 9000 facility that produces validated products to rigorous standards. Manufacturing is controlled using sophisticated MRP software that is networked to work stations in manufacturing centers and inspection points. During the manufacturing and inspection processes, data is collected "real time" from machinery and measuring instruments. This allows variable and attribute data to be quickly and easily analyzed to facilitate constant improvements in both quality and cost.
Sanitization Sterilization Chemical Sanitization
Industry standard concentrations of hydrogen peroxide, paracetic acid, sodium hypochlorite and other selected chemicals. Sanitization protocols designed to extend the useful life of GPM cartridges are available from Critical Process Filtration, Inc.
Sanitization Sterilization Filtered Hot Water
194 ºF | 90 ºC
Specifications 316 Ss Ring
Ring
Specifications Cartridge Length
19.5 in | 49.5 cm
Specifications End Caps
020 O-ring / Plug | 213/119 Internal O-ring / Plug | 213/119 Internal O-ring DOE | 2-222 O-ring / Flat | 2-222 O-ring / Plug | 2-222 O-ring / Spear | 2-222 O-ring 3 Tab / Flat | 2-222 O-ring 3 Tab / Spear | 2-223 O-ring / Flat | 2-223 O-ring / Spear | 2-226 O-ring / Flat | 2-226 O-ring / Spear | Flat Gasket / Plug | Flat Gasket, DOE
Specifications Flow Rate
0.75 gpm | >22 SCFM/psid/10 inch cartridge
Specifications Gas Retention
0.01 µm
Specifications Pore Size
0.10 µm
Total Performance 0
Critical Process Filtration, Inc. is a vertically integrated supplier of filtration products and services to industries in which filtration is considered to be a critical part of the manufacturing process. We manufacture a complete line of products to help you achieve all your filtration requirements from a single source.
Validation 0
GPM grade cartridges are validated using modified HIMA protocols.
