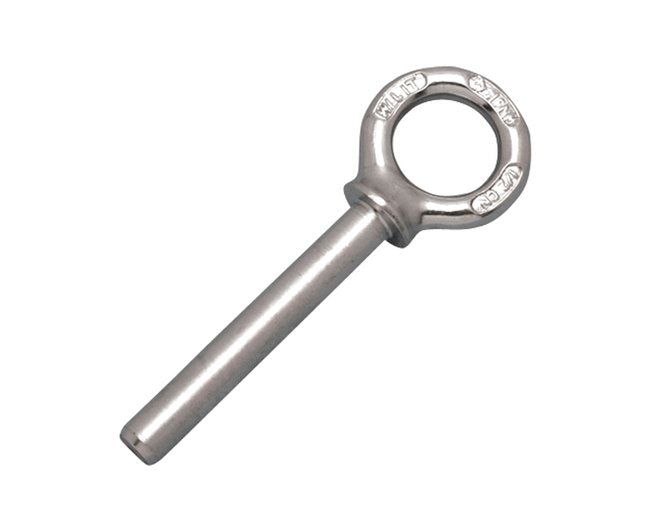

Grade 316-NM Stainless Steel Shoulder Eye Rivet - 1/2 inch
Grade 316-NM Stainless Steel Shoulder Eye Rivet - 1/2 inch
SKU:STA-d8bcca
High-strength Grade 316-NM Shoulder Eye Rivet for precise fit and durability. Ideal for diverse applications.
Regular price
$16.99
Regular price
Sale price
$16.99
Unit price
per
Initiate Order
Grade 316-NM Stainless Steel Shoulder Eye Rivet - 1/2 inch
$16.99
Quantity: 1
Claim Your Seller Account
Grade 316-NM Stainless Steel Shoulder Eye Rivet - 1/2 inch
$16.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Grade 316-NM Stainless Steel Shoulder Eye Rivet, designed with a machined shoulder and shaft, ensures precise seating and fit. With a 2,150 lb Working Load Limit, this unthreaded eye bolt offers exceptional durability and corrosion resistance. Perfect for various applications, it meets stringent government procurement standards, including DoD, GSA, FAR, and DLA requirements.

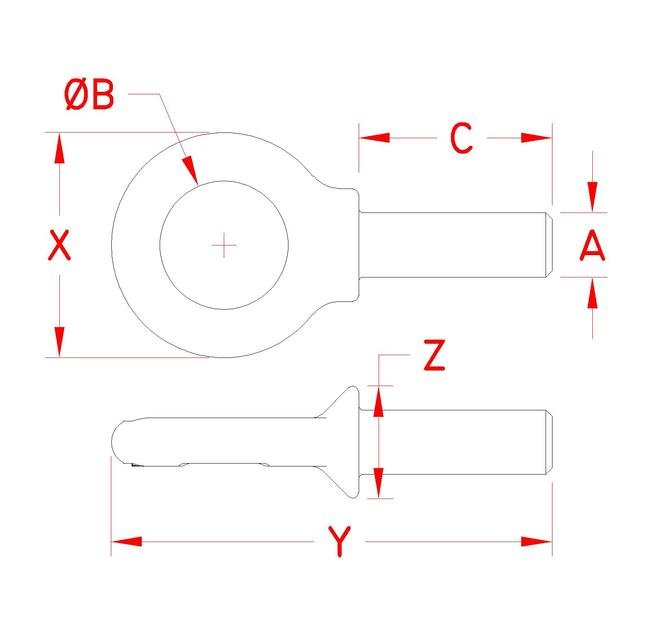

Product Specifications
Specifications Dimension A
1/2 in
Specifications Dimension B
1.00 in
Specifications Dimension C
1.50 in
Specifications Dimension X
1.78 in
Specifications Dimension Y
3.48 in
Specifications Dimension Z
0.89 in
Specifications Fabrication Type
Drop Forged
Specifications Load Rated
Yes
Specifications Made In
Import
Specifications Material
316-NM Stainless Steel
Specifications Suncor Exclusive
Yes
Specifications Weight
0.27 lb
Specifications Working Load Limit Wll
2,150 lb
CAGE
1CXX6
NAICS
332999
PSC
5340
