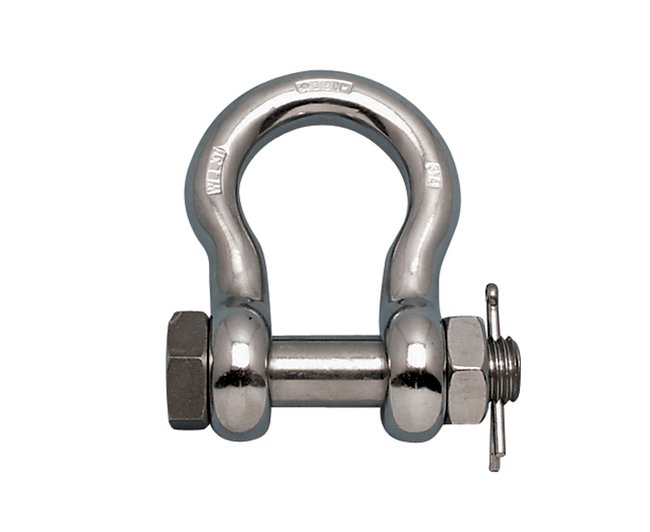

Grade 316 Stainless Steel Bolt Anchor Shackle
Grade 316 Stainless Steel Bolt Anchor Shackle
SKU:STA-ddfa4a
Premium Grade 316 Stainless Steel Bolt Anchor Shackle for secure salt water applications. Meets ASME & MIL-DTL standards.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Grade 316 Stainless Steel Bolt Anchor Shackle
$49.99
Quantity: 1
Claim Your Seller Account
Grade 316 Stainless Steel Bolt Anchor Shackle
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Grade 316 Stainless Steel Bolt Anchor Shackle is a premium choice for salt water applications, boasting a robust design with oversize bolt for secure anchor connections. This Suncor anchor shackle is drop forged, meeting ASME, Fed. Spec., and MIL-DTL standards. With a Working Load Limit of 4,000 lb, it ensures reliable performance in marine environments. Trust in this anchor shackle for superior strength and durability in demanding conditions.

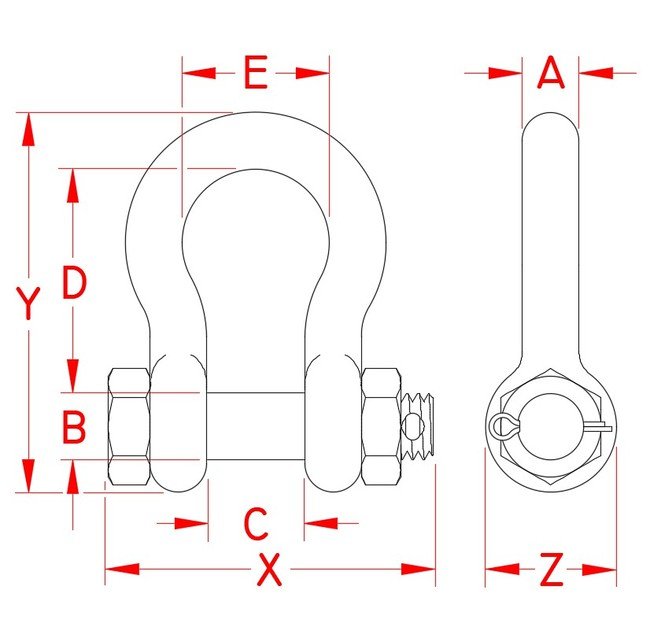

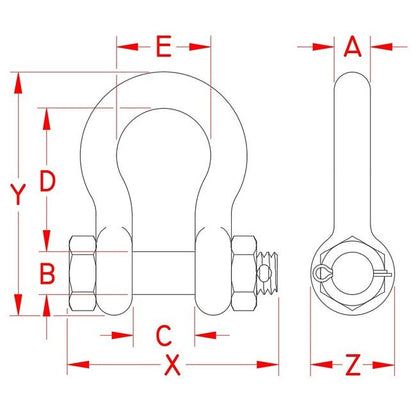

Product Specifications
Specifications Dimension A
5/8 in
Specifications Dimension B
0.75 in
Specifications Dimension C
1.02 in
Specifications Dimension D
2.41 in
Specifications Dimension E
1.60 in
Specifications Dimension X
3.67 in
Specifications Dimension Y
4.21 in
Specifications Dimension Z
1.46 in
Specifications Fabrication Type
Drop Forged
Specifications Load Rated
Yes
Specifications Made In
Import
Specifications Material
316-NM Stainless Steel
Specifications Mil Spec
Yes
Specifications Specification
ASME B30.26-2010 | Class 3 | Fed. Spec. RR-C-271 | MIL-DTL-32655 | Type IVA
Specifications Suncor Exclusive
Yes
Specifications Weight
1.45 lb
Specifications Working Load Limit Wll
4,000 lb
CAGE
1CXX6
NAICS
332999
PSC
4030
